Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $3,500.00/sets
Get Best Price Contact Now

Detail Information
Applicable Industries: Building Material Shops, Construction Works , Energy & Mining Showroom Location: United States, Italy, Brazil, Mexico, Russia, Kenya, South Africa, Nigeria, Australia
Condition: New Type: Gravity Separator
Production Capacity: 98% Voltage: 380v/415v/440v
Dimension(L*W*H): Depends On Models Weight: 400 KG
Warranty: 1 Year Marketing Type: New Product 2022
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pump, Gear, Engine
Key Selling Points: Automatic Power: 1.5KW
Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel Dimension: According To Capacity
Installation: Supply Manual To Guide User Capacity: 5-10 Tons Per Hour
Feeding Size: Less Than 300mm Discharge Size: As Request
Color: Yellow, White, Red, Blue, Gray( Or As Client Request) Product Name: Gold Ore Processing Plant Gold Mining Trommel Equipment For Sale
Keywords: Alluvial Gold Processing Plant

Product Description

Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 0
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 1
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 2
About GMTS0519
If you need to screen alluvial rock gold by watering and panning. It is better to use this kind of machine to improve
productivity. After many improvements, this mini trommel screener has been changed into a perfect design and structure. This a good assistant for workers to operate. Our customer will maximize economic benefits from that than lack of this machine. Using this machine can save labor costs and increase work efficiency with high gold recovery.

More and more mining owners within business area are in favor of or have used this product.This mini trommel sreeners are very popular and we have sold this mini one to the US, Colombia, Italy, Guatemala, Guyana, Ghana, UAE and many other counties.Our factory have some distributors in the US.

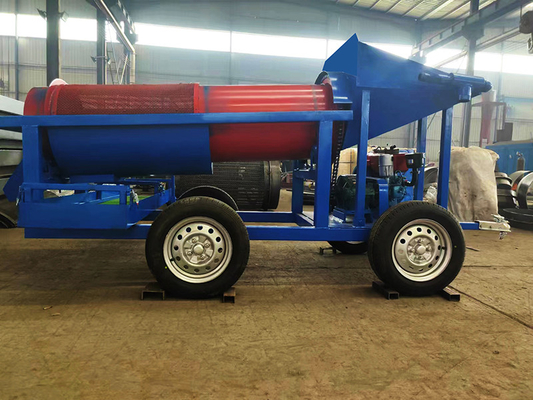

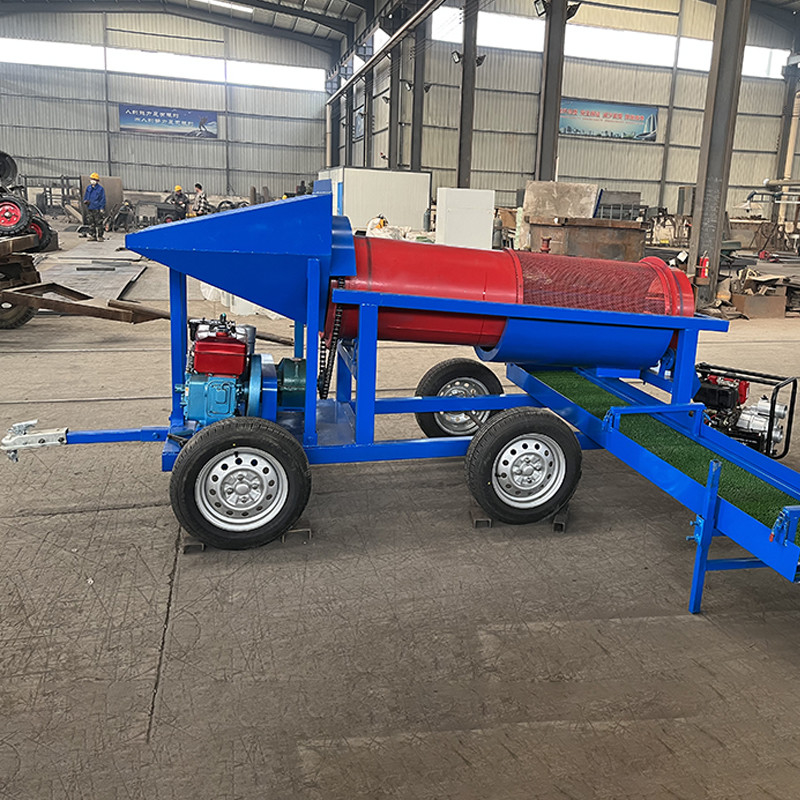

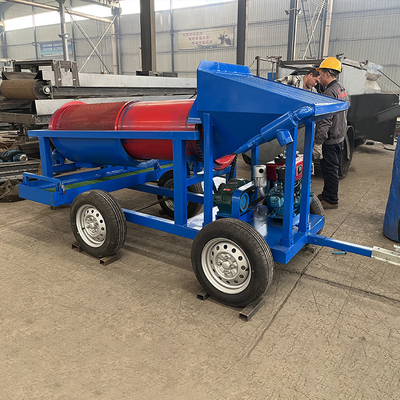

The raw materials is put through feeding hopper into drum trommel, after washing, powering, revolving and gravity power, the material of smaller diameter is discharged into sluice box, and the material of larger diameter is discharged into the tail plate. The motor drive the drum trommel by connecting chain and reducer , which makes the machine durable.The towing hook and tires are used for pulling and moving with one adult's power.
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 3
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 4
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 5
Product Name
GMTS0519
Power(kw)
1.5
Diameter(mm)
500
Length(mm)
1910
Dimension(m)
3*0.8*1.6
Capacity (t/h)
5-10
Pole Diameter(mm)
5-8
Grille
Iron bar
Gold Chute
350*1500(mm)
Feeding Hopper(mm)
800 * 790
Mesh Materials
Manganese wire weaving or Steel plate punching
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 6

Structure and Principle

The raw materials is put into feeding hopper, and the grille can remove the larger alluvial rock into drum trommel , and because of watering, powering, gravity power, the raw material is pushed into drum trommel. After rotating and watering, materials are shaken and screened. The materials with small diameter drops down into sluice box. And the materials with larger diameter is discharged through the tail.

*Grille
*Drum
*Trommel screen
*Gold sluice
*Tire
*Gasoline
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 7
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 8
Towing hook : It connects with the trailer for better movement.

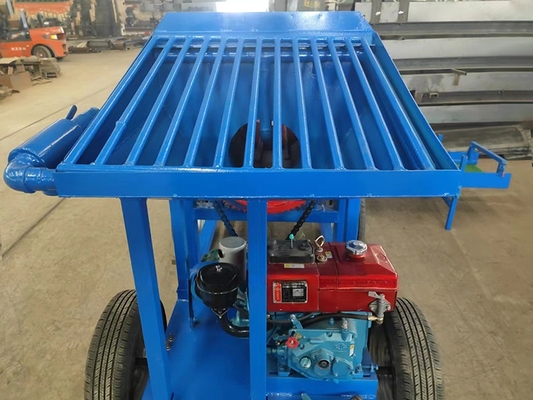

Grille : It prevent large pieces from entering the roller. The steel bar diameter is 20mm and bar spacing is 50mm

Motor: It connects the reducer and chain to drive the drum to rotate.

Feeding hopper: the bottom is declining. The volume is 0.5 m³.
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 9

Drum trommel : It screen raw materials by gravity and water pressure.

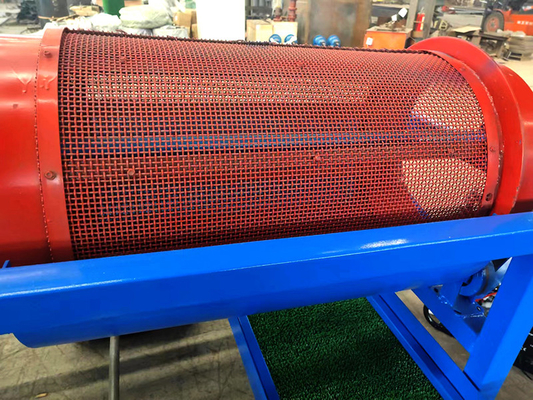

The screen mesh : It is made of manganese woven. The whole mesh is divide into two parts, the first section of mini gold trommel is 910mm steel drum, the second section is 840mm with manganese wire mesh 5mm.

Tire : The number of tires with diameter 500 mm-650 mm can be selected as 4 or 2.

Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 10
The sluice box : The screened material is put into sluice box. The size is 350 mm * 1500 mm or as requirenments.

The tail : The other material come out of the roller in the angular rotatable tail plate.

The protective frame : It supports and protects the whole machine and makes it stable while working.

The angle iron: It is set in trommel screen mesh for materials moving backward.


If the sites have no electricity, there are some solutions available

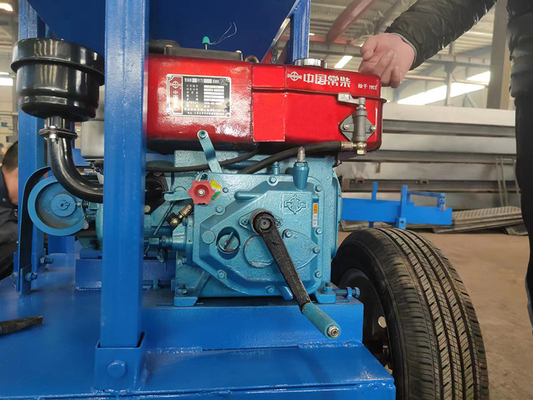

1^^^Only diesel solution. We will change the electric motor into diesel motor.
2^^^Only gasoline solution.We usually change or add additional gasoline engine . It will be more convenient to use with gasoline water pump together. That is also most clients'choice.
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 11
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 12
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 13
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 14
Machine
Model
QTY
Power
Gold trommel screener
GMTS0519,GMTS1020,GMTS1225
1
1.5,4,5.5
Centrifugal concentrator
STLB30,STLB60,STLB80,STLB100
1
1.5
Shaker table
6-S (4520*1850)
1
1.1
Submersible sewage pump
50WQ,80WQ
1
5.5,15
Slurry water pump
3/2-AH,4/3-AH
1
7.5,15
Sluice box with grass
1*6M,1*9M
1
0
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 15
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 16
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 17
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 18
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 19
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 20
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 21
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 22

Those are trommel screeners with larger capacity below, welcome your inquiry as well.
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 23
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 2
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 25



Packing and delivery
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 26
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 27
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 28
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 29
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 30
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 31
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 32
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 33
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 34

Succesful case
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 35
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 36
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 37
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 38
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 39
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 40
Portable Wash Plant of Trommel Screen and Shaker Table for Alluvial Rock Gold Mining 41

FAQ

1 What’s the raw materials for screening ?
Our GMTS series can screen Alluvial gold, river sand or rock ore ?

2 How many tons for washing per hour ?
Model GMTS0519 with capacity 5-10 tons per hour, Model GMTS1020 with capacity 10-30 tons per hour, Model GMTS1225 with capacity 30-50 tons per hour, Model GMTS1548 with capacity 50-120 tons per hour, Model GMTS1848 with capacity 80-150 tons per hour, Model GMTS2060 with capacity 150-300 tons per hour.

3 Can you provide customization ?
Yes, we can make the machine according to requirements.

4 What about after-sale service?
12 months warranty for all kinds of products.

5 How about the wear parts supply?
We will supply the wear parts with the machine.
