The screen drum adopts a double-layer structure, with an inner layer diameter of 1000mm and an outer layer diameter of 1500mm. The inner layer is made of round steel screen bars and the outer layer is made of manganese wire braided mesh, which effectively prevents large materials from impacting the screen and increases the service life of the screen. In addition, the screen cylinder is divided into two parts. The diameters of the screen holes of the front and rear cylinders are different, which can better screen materials. The mud mixing section is 400mm, which can break through hard rocks wrapped in gold.
 |
Sale Filter Alluvial Gold Mining Machinery Equipment for Mobile Gold Processing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Brazil, None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150t/h | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | 7500x1850x3500mm | Weight: | 6500 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Product Name: | Gold Wash Plant | Processed Materials: | Separating Mine |
| Installation: | Under Guidance | Function: | Screening\separation\sorting\sieving |
| Usage: | Mining Concentration | Material: | Steel |
| Capacity: | 80-150t/h | After Sale Service: | One Year |
| Color: | As Your Request | ||
Product Description
Product Description
The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.The processing capacity of this equipment can reach 80-150t/h per hour, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.

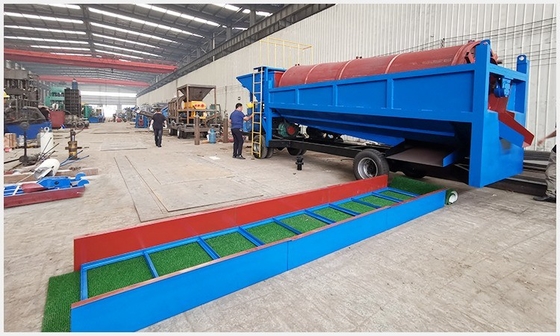

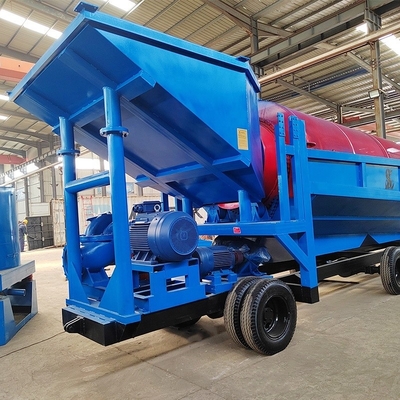

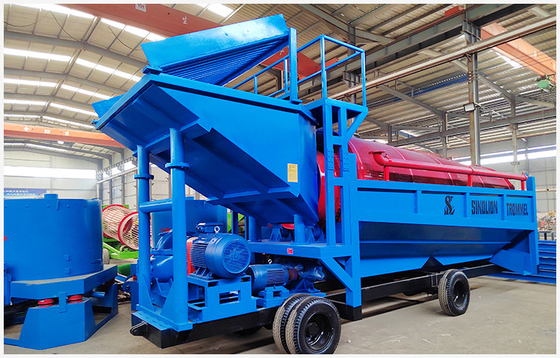

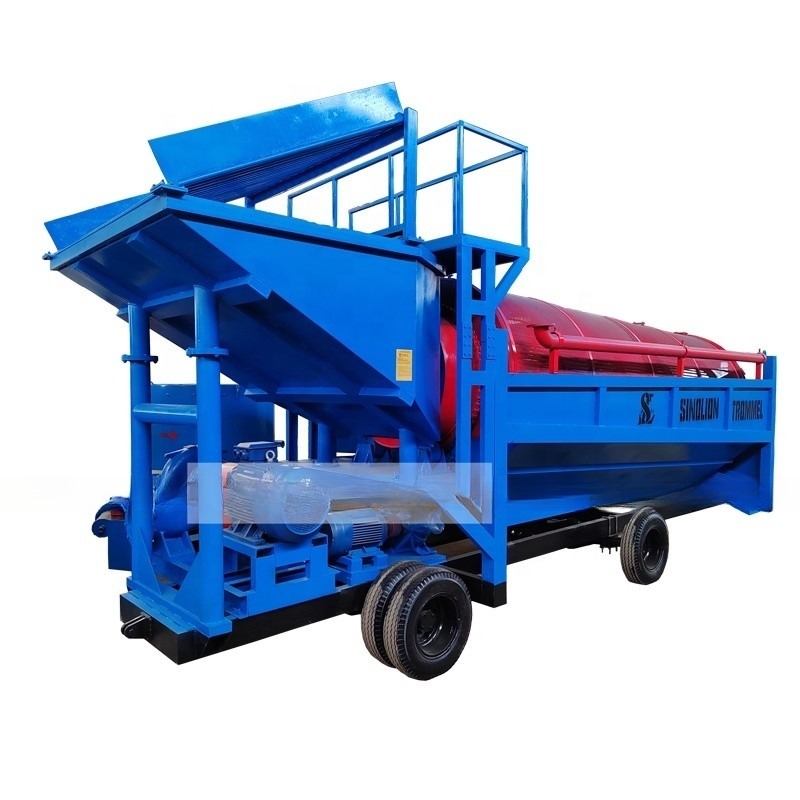

The working principle of GMTS1548 is a workbench at the feed inlet and a ladder on one side of the workbench. Workers can stand on the workbench through ladders to observe the unloading situation of the feed port, which can better cooperate with the work of the equipment. The equipment is equipped with traction and 4 tires, which allows you to move the equipment anytime and anywhere, which is very convenient and fast.
Gold Mobile Trommel Screen 1548 can be washing and screening.Hopper 1.9m³.When the alluvial gold and placer gold enter the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface are flipped and rolled, so that the qualified materials are discharged through the outlet at the bottom of the rear end of the drum, and the unqualified materials are discharged through the outlet at the rear end of the drum. Discharge from the discharge port.Gold Mobile Trommel Screen 1548 is equipped with two discharging ports,which can collect more gold faster.
Products Details
Specifications
Model | GMTS-1500x4800 | ||||||
Drum Diameter | 1500mm | ||||||
Drum Length | 4800 mm | ||||||
Towing Hook | Include | ||||||
Mixing section length | 400mm | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 80-150 tons/hour | ||||||
Engine | Diesel engine Electric engine | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 1.9m³ | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
FAQ
Q1: How long is the delivery time？
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
