Gold Mining Machinery Equipment Gravity Centrifuge Separator Machine for 10-90kg/cycle
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,080.00 - $15,385.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Viet Nam, Peru, Indonesia, Russia |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 10-90kg/cycle | Voltage: | 380V |
| Dimension(L*W*H): | 1180*1140*1250mm/2300*1800*2200mm | Weight: | 1500 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Engine |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Color: | Customized Making | ||
Product Description
Product Description

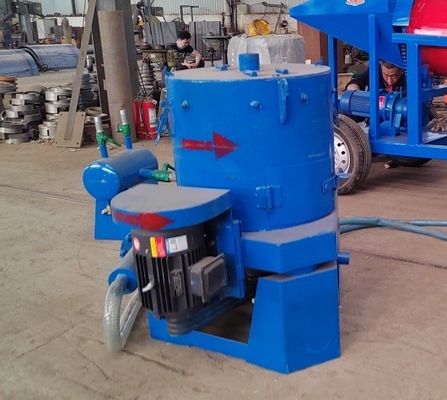

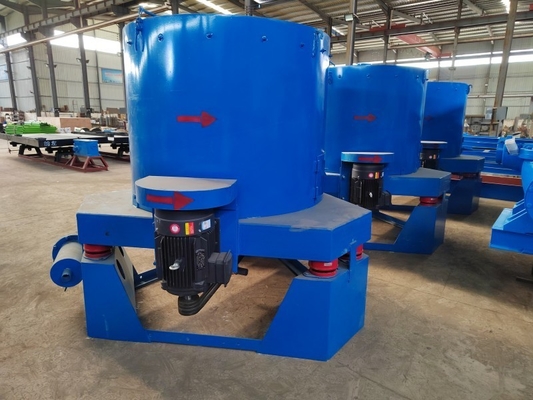

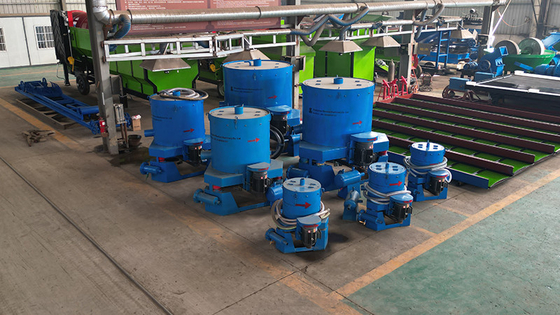

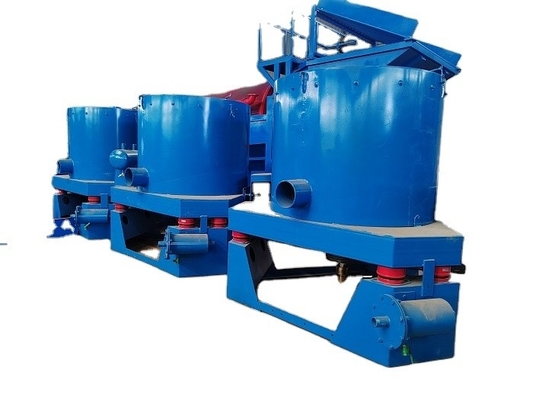

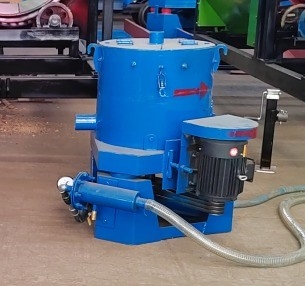

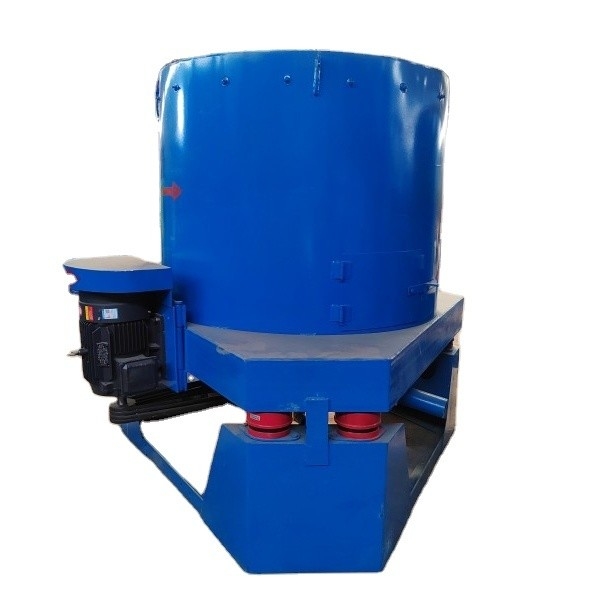

The centrifugal concentrator is a gravity separation equipment widely used in gold mines. The centrifugal concentrator equipment uses centrifugal force to expand the gravity of mineral particles to separate heavy particles from light particles.The models we sell are STLB30,STLB60,STLB80,STLB100.
Working principle
The centrifuge is driven by a motor to rotate at high speed and is surrounded by pressurized backwash water. The material is injected from the upper end of the enrichment cone. There are grooves formed by rows of ribs inside the enrichment cone. The centrifugal force generated by the rotation of the enrichment cone The minerals will be thrown towards the groove, but due to the effect of the recoil water sprayed outward in the groove, only the heavy mineral particles can overcome the resistance of the recoil water and stay in the groove to form concentrate, while the light mineral particles will be The centrifugal force is small and it is difficult to overcome the effect of the backwash water. The backwash water will flush out the groove and overflow from the upper end of the enrichment cone driven by the continuously injected water flow to become tailings.
The entire system of the fully automatic centrifuge consists of a main machine, a water pump, a piping system, an air pump, and a control cabinet.Centrifuges are divided into fully semi-automatic centrifuges and automatic centrifuges. They need to be equipped with a clean water centrifugal pump. There is a butterfly valve at the top of the centrifuge, and the feed is fed through the air pump control switch. The fully automatic centrifuge can automatically flush water every 3-6 cycles.
Detail information
Specification
Model | STLB30 | STLB60 | STLB80 | STLB100 | |||
Feeding Capacity(t/h) | 2-4 | 8-12 | 35-45 | 70-80 | |||
Fluidization water Required(m3/h) | 3-5 | 7-10 | 30-36 | 55-80 | |||
Slurry Water Required(m3/h) | 5-7 | 8-12 | 35-50 | 70-120 | |||
Feeding Density(%) | 0-50 | 0-50 | 0-50 | 0-50 | |||
Feeding size(mm) | 0-3 | 0-5 | 0-5 | 0-5 | |||
Concentration Cleaning Up Cycle | Vein gold :1-3 Hours Placer gold :2-6 Hours | ||||||
Concentrate weight(Kg) | 10-20 | 30-40 | 60-70 | 80-90 | |||
Power(KW) | 1.5 | 4 | 11 | 22 | |||
Weight(Kg) | 400 | 1000 | 1500 | 2000 | |||
Overall dimensions(mm) | 1180x1140x1250 | 1970x1670x1750 | 2300x1800x2200 | 2400x2000x2300 | |||
