Gold Mining Equipment Washing Plant Mining Machines with Gold Gravity Separator
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $5,310.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 10-30TPH | Voltage: | 380V |
| Dimension(L*W*H): | 4350*1350*2350mm | Weight: | 1200 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other |
| Key Selling Points: | Competitive Price | Application: | Gold |
| Color: | Customized Making | ||
Product Description
Product Description

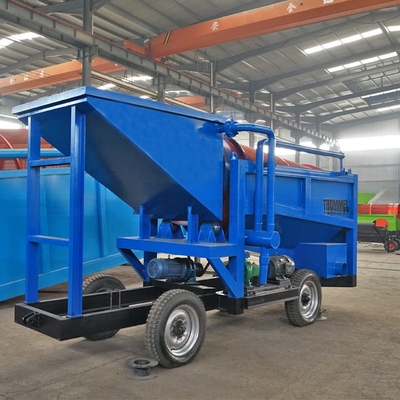

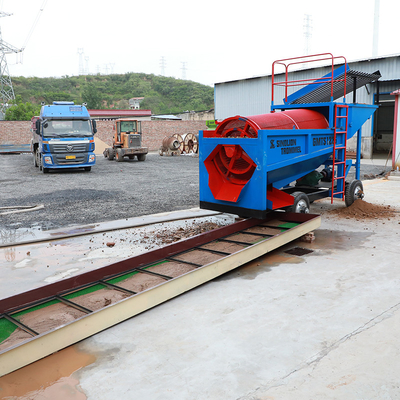

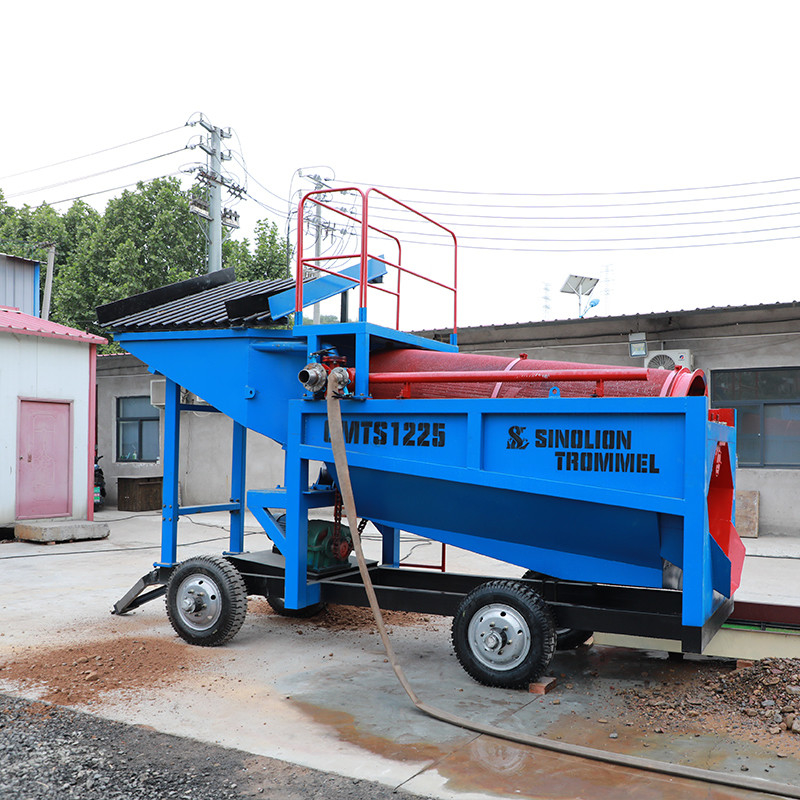

The gold mobile tormmel screen equipment is mainly used in dry land and beaches.GMTS1020 is a gravity processing equipment suitable for placer gold and alluvial gold.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.GMTS1020 can choose HONDA gasoline engine、diesel engine or electric motor.
Work Principle

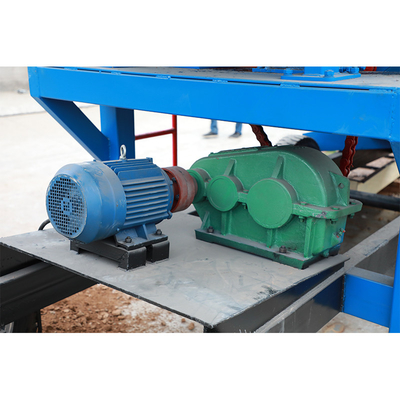

The drum screen mainly consists of motor, reducer, drum device, frame, and inlet and outlet.The material first passes through the grille to filter out large pieces of material, and then passes through the bin and enters the screen cylinder. At this time, the high-pressure water in the water pipe cleans the material. At the same time, the motor drives the screen cylinder to rotate through the chain, and the material particles in the screen cylinder follow. The screen drum rotates to a certain height and is thrown down by gravity. It is filtered through the screen while cleaning, forming cleaning and screening.
Trommel Screen

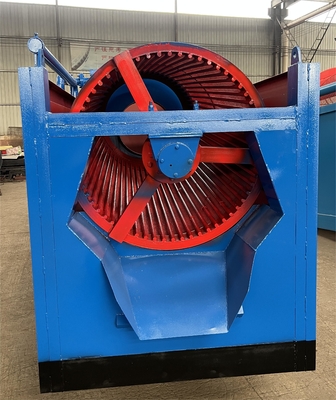

The screen adopts high manganese steel woven screen, which has high efficiency and long service life.The screen is divided into two parts, the first half is smaller than 5mm, and the second half is larger than 5mm. The cylinder has a double-layer structure,and the inner layer is connected to the outer screen by a round steel screen bar structure, which helps prevent direct impact of large materials. The screen greatly extends the service life of the outer screen and improves the screening efficiency of the outer screen.
The above are the supporting equipment of GMTS1020. If you need it, we will configure it for you.
Specification
Model | GMTS-1000x2000 | ||||||
Drum Diameter | 1000mm | ||||||
Drum Length | 2000 mm | ||||||
Gearbox | XWD4-9 | ||||||
Towing Hook | Include | ||||||
Tires Size | 650-16 | ||||||
Rubber Tires Quantity | 4 pieces | ||||||

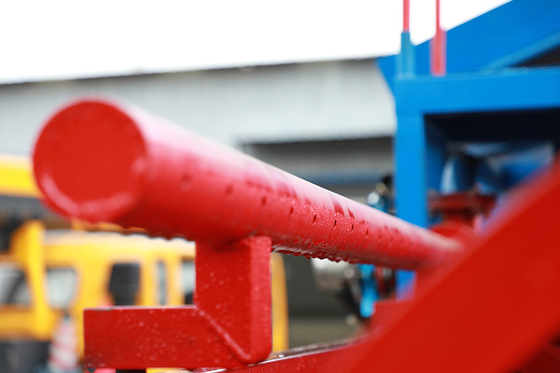

Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 10-30 tons/hour | ||||||
Engine | Diesel engine Electric motor | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 0.9m³ | ||||||
Packing & Delivery
Certifications
Company Profile
FAQ
Q1: How long is the delivery time？
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
