Gold Mining Concentration Equipment with 1900 KG Mobile Trommel and Spinner Separator
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction Works , Energy & Mining, Other, Advertising Company, Gold Mining Separating Machine | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator, Gravity Separation |
| Production Capacity: | 30-50t/h | Voltage: | 380V |
| Dimension(L*W*H): | 4.3*1.65*2.22m | Weight: | 1900 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Other, Engine, Gearbox |
| Key Selling Points: | Patented Product | Product Name: | Gold Mining Machine |
| Installation: | Technical Guidance | Function: | Screening\separation\sorting\sieving |
| Usage: | Mining Concentration | Color: | As You Request |
| Feature: | High Recovery Rate Easy | Capacity: | 30-50t/h |
| After Sale Service: | Video Technical Support | ||
Product Description
Product Description

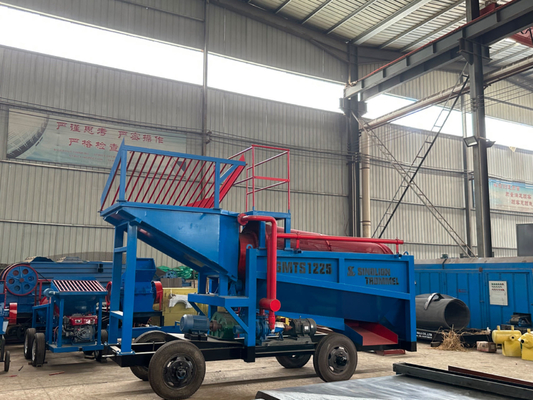

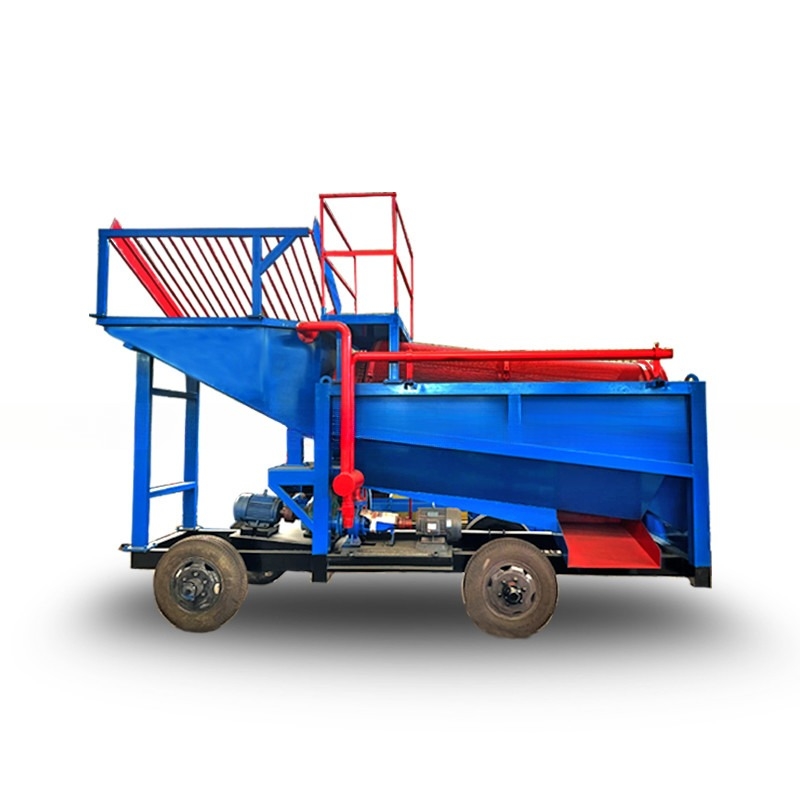

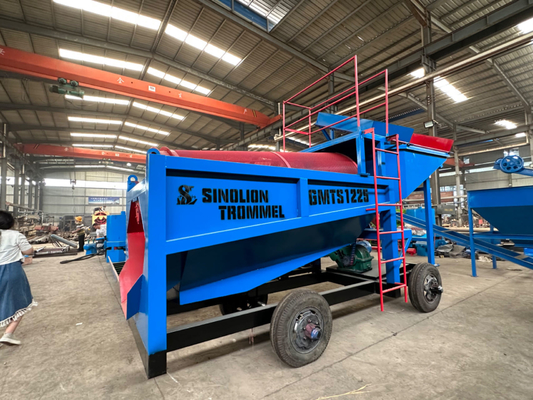

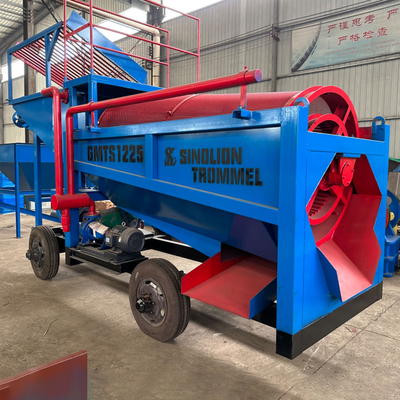

The gold mobile trommel screen1225, which is mainly used in dry land, beaches and ancient rivers. It is a kind of gravity beneficiation equipment, which mainly consists of the motor, frame, drum device, reducer, four tires, and inlet and outlet. The capacity of gold moblie trommel screen1225 is 30-50 tons per hour, and the power is 5.5kw, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.
Specification
Model | GMTS1225 | ||||||

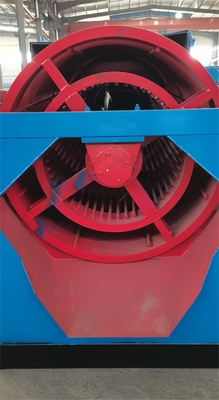

Drum Diameter | 1200mm | ||||||
Drum Length | 2500 mm | ||||||
Towing Hook | Include | ||||||
Tires Size | 650-16 | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 30-50 tons/hour | ||||||
Engine | Diesel engine Electric motor | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 1.3m³ | ||||||
Weight | 1900kg | ||||||
Power | 5.5kw | ||||||
Certifications

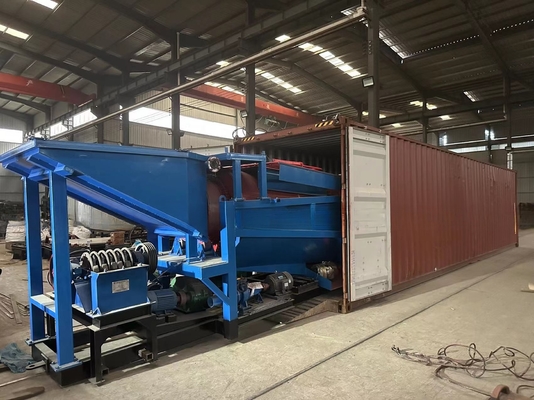

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
