7500x1850x3500mm Gold Mining Trommel Processing Plant Sale Separator Equipment for Gold
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Brazil, UAE |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150t/h | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | 7500x1850x3500mm | Weight: | 6500 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Product Name: | Gold Wash Plant | Processed Materials: | Separating Mine |
| Installation: | Under Guidance | Function: | Screening\separation\sorting\sieving |
| Usage: | Mining Concentration | Material: | Steel |
| Capacity: | 80-150t/h | After Sale Service: | One Year |
| Color: | As Your Request | ||
Product Description
Product Description

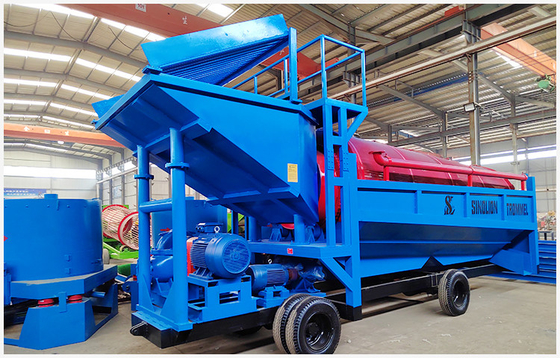

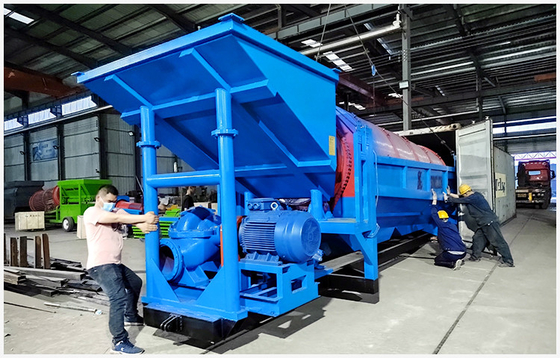

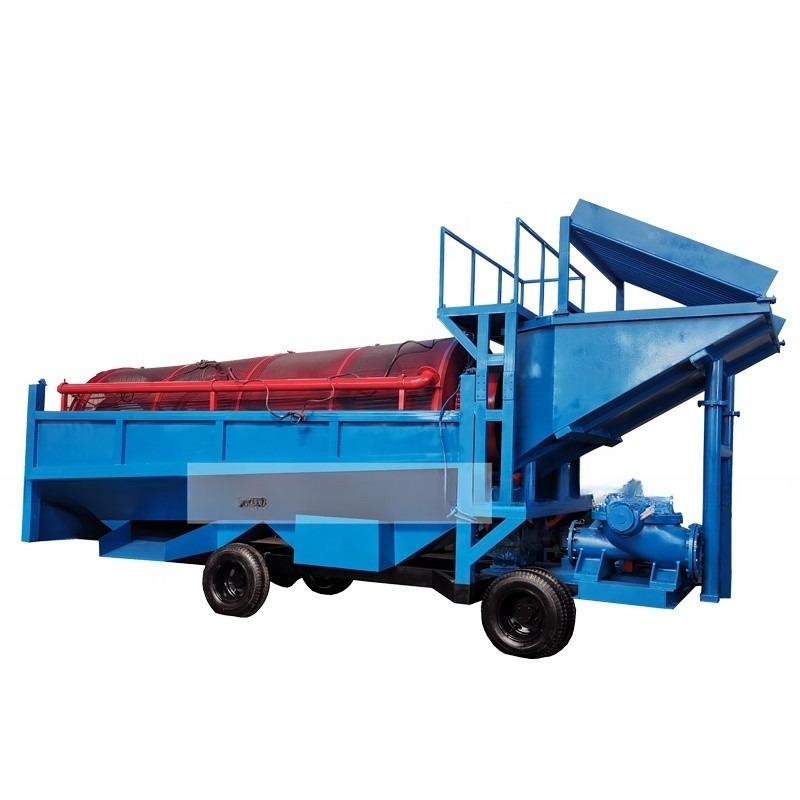

GMTS1548 suitable for placer gold and alluvial gold.it can be washing and screening, it have a traction wheel can rotate 360° on land, It is more convenient to move. it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.The processing capacity of this equipment can reach 80-150tons per hour, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.

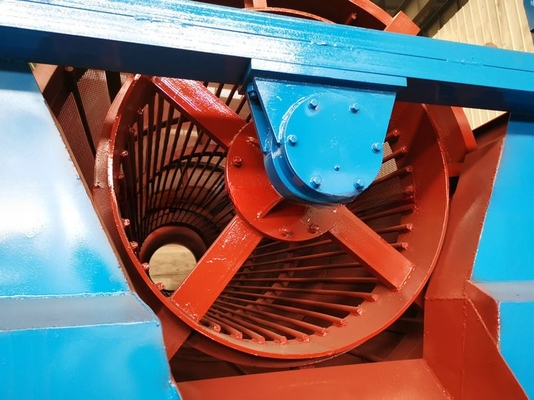

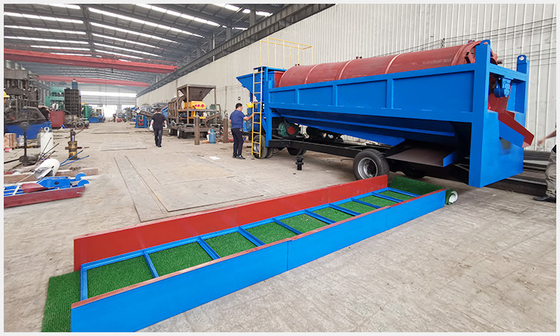

Gold Mobile Trommel Screen 1548 can be washing and screening. Hopper 1.9m³. When the materials enter the drum device, after tilting and rotating the screen barrel, the materials on the screen surface are flipped and rolled, so that the qualified gold are discharged through the outlet at the rear end of the drum. The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The screen is easy to washing and will not block. Discharge from the discharge port. Gold Mobile Trommel Screen 1548 is equipped with two discharging ports, which can collect more gold faster. If you need, We can match a sluice box to connect the discharge port.
Products Details
Specifications
Model | GMTS-1500x4800 | ||||||
Drum Diameter | 1500mm | ||||||
Drum Length | 4800 mm | ||||||
Towing Hook | Include | ||||||
Mixing section length | 400mm | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 80-150 tons/hour | ||||||
Engine | Diesel engine Electric engine | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 1.9m³ | ||||||
Weight | 6500kg | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Company Profile
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
FAQ
Q1: How long is the delivery time？
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
A: Normally within 7-10days
Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.
Q3: How long is the warranty period？
A:One year
Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course
Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
