80-150t/h Mobile Alluvial Gold Ore Wash Plant Trommel Washer with All-in-One Function
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $22,540.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, United Kingdom, United States, France, Germany, Brazil, UAE |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150t/h | Voltage: | 380V/415V/440V |
| Dimension(L*W*H): | 8500x3050x3750mm | Weight: | 7000 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Other, Pressure Vessel, Engine, Gearbox |
| Key Selling Points: | Patented Product | Application: | Alluvial Gold Washing |
| Product Name: | Gold Wash Plant | Processed Materials: | Separating Mine |
| Installation: | Under Guidance | Function: | Screening\separation\sorting\sieving |
| Usage: | Mining Concentration | Material: | Steel |
| Capacity: | 80-150t/h | After Sale Service: | One Year |
| Color: | As Your Request | ||
Product Description
Product Description

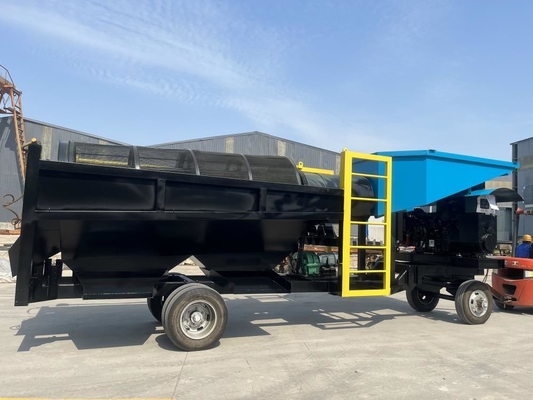

Gold Mobile Trommel Screen 1555 can process 80-150 tons of materials per hour, with a recovery rate of up to 95-98%. Gold moblie trommel screen is suitable for placer gold and alluvial gold. It is a movable platform with a traction on the front side of the machine body, it can rotate 180°, which can be well fixed and moved on the sand. It is mianly consist of motor, drum device, frame, tries, grille, workbench, and inlet and outlet. We can also match a motor or a diesel engine.

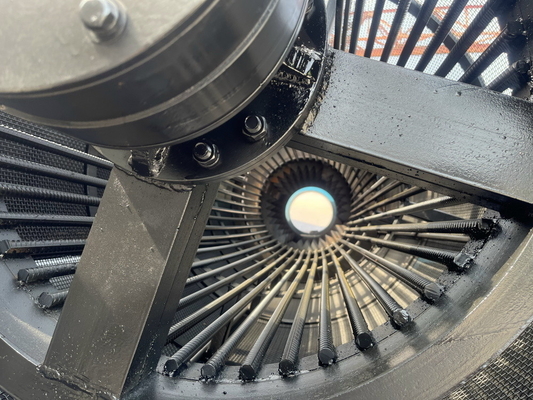

Gold Mobile Trommel Screen 1555 can be washing and screening. When the materials enter the drum device, after incline and rotating the screen barrel, the materials on the screen surface are flipped and rolled, so that the qualified gold are discharged through the outlet at the rear end of the drum. The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The drum device divide into two parts, the hole diameter of the front of the drum is less than 5mm, the rear of the drum is less than 10mm. The screen is easy to washing and will not block. Gold Mobile Trommel Screen 1555 is equipped with two discharging ports, which can collect more gold faster. If you need, We can match a sluice box to connect the discharge port. It also has a mud mixing section with a length of 1500mm.
Products Details
Specifications
Model | GMTS1555 | ||||||
Drum Diameter | 1500mm | ||||||
Drum Length | 5500mm | ||||||
Towing Hook | Include | ||||||
Mud mixing section length | 1500mm | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 80-150 tons/hour | ||||||
Engine | Diesel engine Electric motor | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm | ||||||
Weight | 7000kg | ||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
