Steel Gravity Separator Gold Washing Plant Small Equipment for Precious Metal Mining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company, Other | Showroom Location: | Italy, Germany, Viet Nam, Peru, India, Kenya |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 5-10TPH | Voltage: | 380V |
| Dimension(L*W*H): | 3000*800*1500mm | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Other |
| Key Selling Points: | Easy To Operate | Application: | Alluvial Gold Washing |
| Color: | Customized Making | Feeding Size: | 300mm |
| After-sales Service Provided: | Video Technical Support | Material: | Steel |
| Processed Materials: | Alluvial Gold Sand Gold | ||
Product Description
Product Description

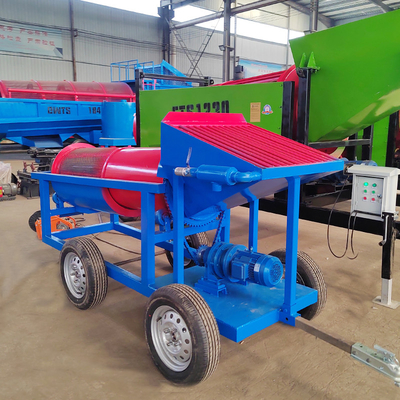

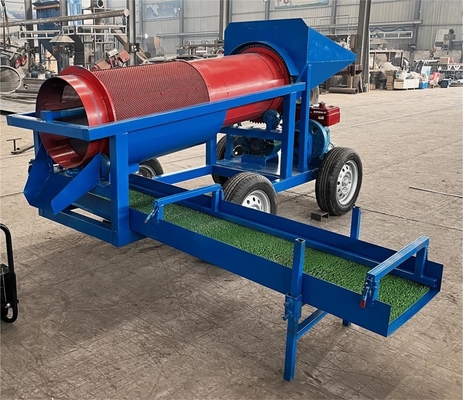

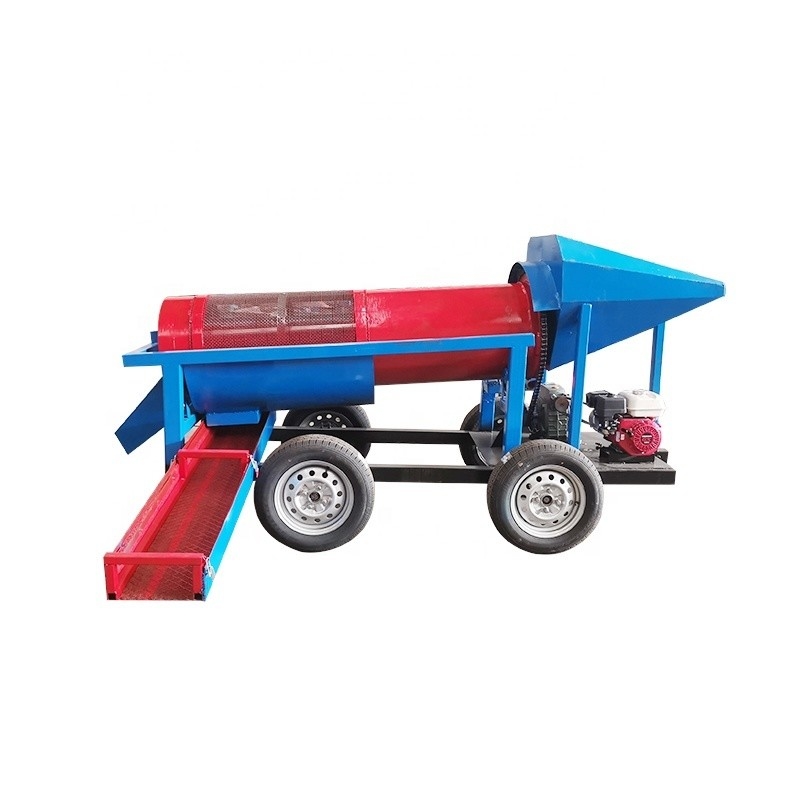

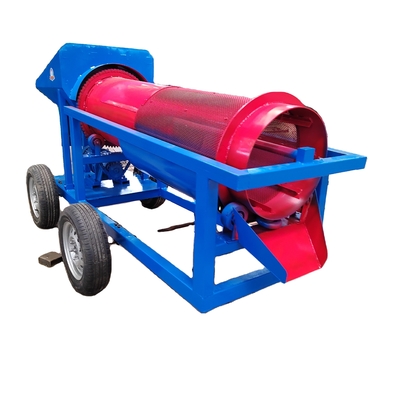

Gold Mobile Trommel Screen 0519 can process 5-10 tons of materials per hour, with a recovery rate of up to 95-98%. Gold mobile trommel screen is suitable for placer gold and alluvial gold. It is a movable platform with a traction on the front side of the machine body, which can be well fixed and moved on the sand. It is mianly consist of motor, drum device, frame, tries, grille, and inlet and outlet. We can also match a HONDA gasoline engine, diesel engine or electric motor.
Working Principle
The gold washing trommel 0519 can be washing and screening. When GMTS 0519 is running, it is powered by the motor, and the materials enters from the feed inlet. Some large pieces of materials are blocked outside the grille, and small pieces of materials enter the drum to start screening. Since the density and specific gravity of gold are different, so during the washing and screening process, heavy metals containing gold will be screened out from the discharge port.The trommel screen is equipped with a engine, which has a long service life and does not need to worry about outdoor power generation. It is economical, durable, safe and powerful.
Product Details
Gold dust separated
Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collecting.
Hopper grate
The grille can clog large pieces of materials outside, and smaller placer gold and alluvial gold enter the hopper for screening, which is beneficial to improving the efficiency of the screening hopper.
Drum Device
The cylinder screen is a single-layer structure, The screen adopts high manganese steel woven screen, which has high efficiency and long service life. It is have a breaking knife inside the trommel screen, which can break some hard stones wrapped in gold.
Specification
Model | GMTS0519 |
Drum Diameter | 500mm |
Drum Length | 1910mm |
Capacity | 5-10 tons/hour |
Power | 1.5kw |
Motor | Diesel engine HONDA gasoline engine Electric motor |
sluice box | 1000*6000mm Angle adjustable 2-8° |
Grizzly | Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³ |
Weight | 600kg |
