Small Spiral Washing Concentrator Machine for 5-10tph Gold Washing Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Other, Advertising Company, Environmental Friendly, Metallurgical Industry, Chemical Industry | Showroom Location: | Canada, United States, Italy, Germany, Philippines |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator, Mobile |
| Production Capacity: | 5-10t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 3.0m*0.8m*1.6m | Weight: | 600 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Engine, Gearbox, Other |
| Key Selling Points: | Easy To Operate | Application: | Alluvial Gold Washing |
| Product Name: | Gold Mining Machine | Keywords: | Gold Separation Machine |
| Name: | Gold Mining Wash Plant | Color: | As Your Request |
| Capacity: | 5-10T/H | Usage: | Mining Concentration |
| Recovery Rate: | 94-98% | Processed Materials: | Alluvial Gold Placer Gold |
Product Description
Product Description

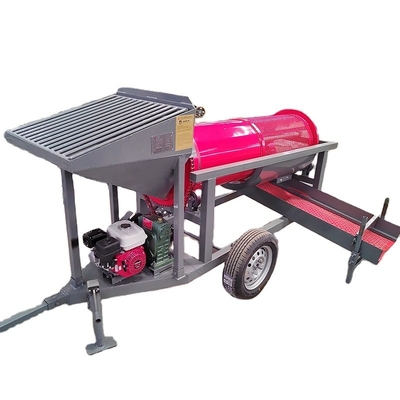

The mobile gold trommel screen is a movable gold selection platform, mainly used in dry land, beaches, and ancient rivers. It is a kind of gravity mineral processing equipment, which has the characteristics of less investment, less labor, quick return on investment, simple operation, and flexibility.
GMTS0519 model generator can be equipped with electric motor, diesel engine or HONDA gasoline engine.

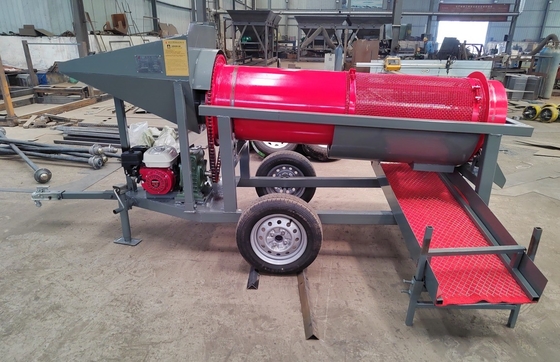

This is HONDA gasoline engine, which can solve the problem of power supply outdoors with low noise.
This is diesel engine, which can solve the problem of power supply outdoors with great power.
Working Principle

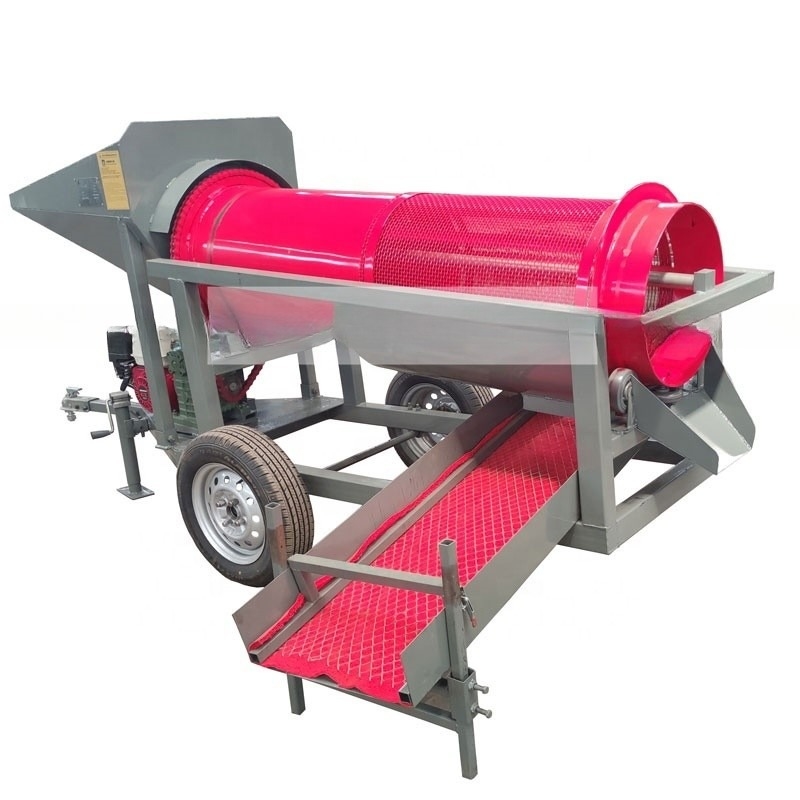

The trommel screen is mainly consists of a motor, a reducer, a drum device, a frame, four tires, and a material inlet and outlet. The motor is connected with the roller device through the reducer through the coupling, and drives the roller device to rotate around its axis. The hopper of gold Mobile Trommel Screen 0519 is 0.5m³. When the alluvial gold and placer gold enter the drum device, due to the incline and rotation of the drum device, the materials on the screen surface are flipped and rolled, so that the qualified materials are discharged through the outlet at the bottom of the rear end of the drum. Gold Mobile Trommel Screen 0519 is a single-layer screen structure and GMTS0519 can connect with a sluice box, which can collect more gold.
Specifition
|
Model
|
GMTS0519
|
|
Drum Diameter
|
500mm
|
|
Drum Length
|
1910mm
|
|
Capacity
|
5-10 tons/hour
|
|
Engine
|
HONDA gasoline engine
Diesel engine
Motor engine
|
|
sluice box
|
1000*6000mm
Angle adjustable 2-8° |
|
Grizzly
|
Steel bard diameter 20mm
Bar spacing 50mm Input hopper: 0.5m³ |
|
Weight
|
600kg
|
|
Power
|
1.5kw
|
Product packaging
