30-50t/h High Recovery Rate Gold Trommel Australia for Easy Portable Mobile Screening
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $7,750.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company, Other, Gold Mining Separating Machine | Showroom Location: | Egypt, United Kingdom, France, Philippines, Russia, South Korea |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator, Gravity Separation |
| Production Capacity: | 30-50t/h | Voltage: | 380V |
| Dimension(L*W*H): | 4.3*1.65*2.22m | Weight: | 1900 KG |
| Warranty: | 1 Year | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Engine, Gearbox, Other |
| Key Selling Points: | Patented Product | Product Name: | Gold Mining Machine |
| Installation: | Technical Guidance | Function: | Screening\separation\sorting\sieving |
| Usage: | Mining Concentration | Feature: | High Recovery Rate Easy |
| Capacity: | 30-50t/h | After Sale Service: | Video Technical Support |
| Color: | Customized Making | ||
Product Description
Product Description

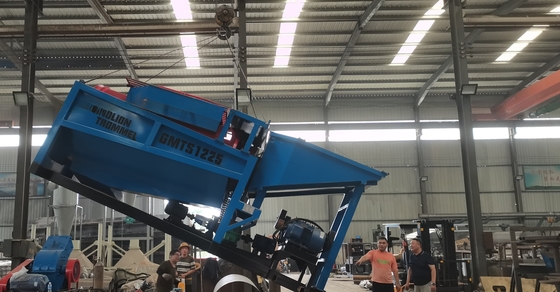

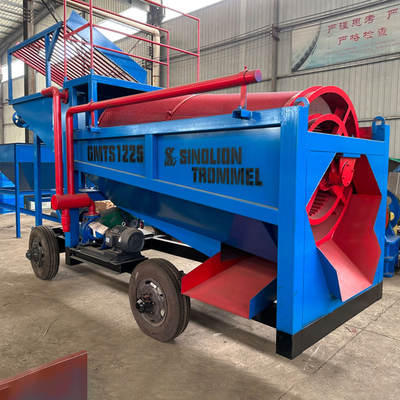

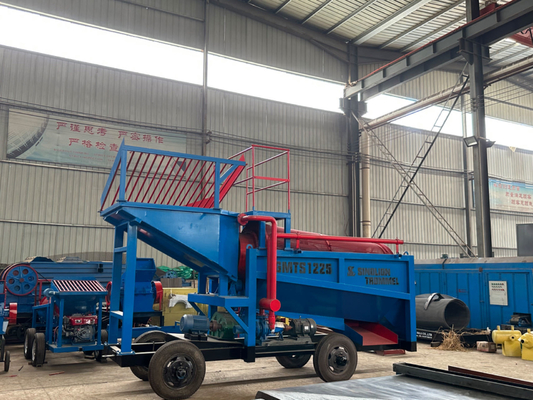

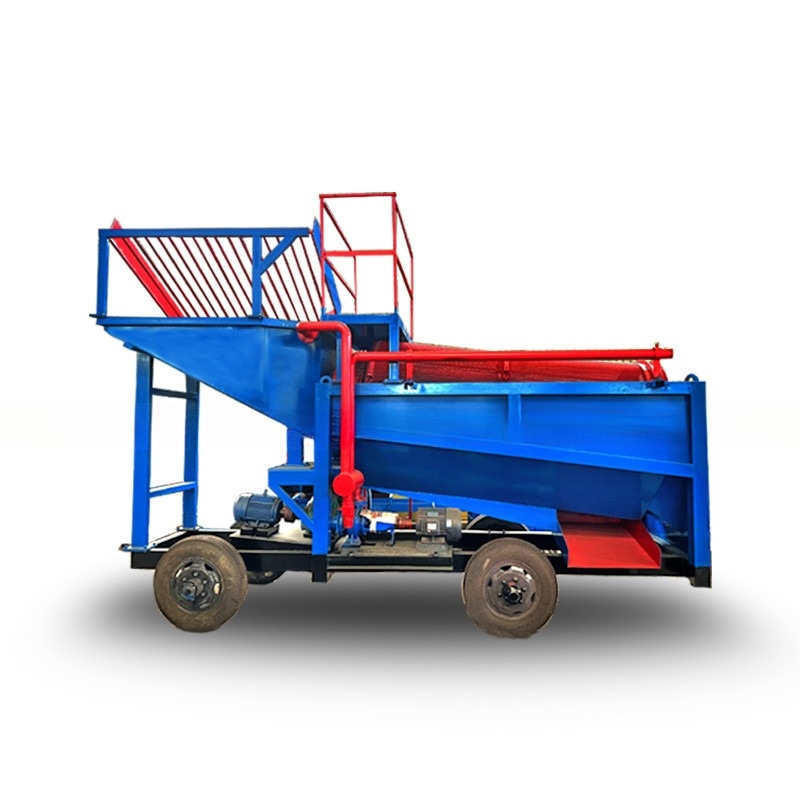

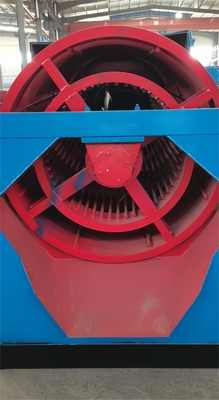

Gold mobile drum screen 1225 is a movable gold selection platform, mainly used in dry land, beaches and ancient rivers. The mobile gold drum screen 1225 can process 30-50 tons of materials per hour, with a recovery rate as high as 98%. Gold mobile drum screen is suitable for placer gold and placer gold. It is a mobile platform with traction on the front side of the fuselage, which can rotate 180° and can be well fixed and moved on the sand. It is mainly composed of motor, roller device, frame, grille, tires, inlet and outlet, etc. Its screen adopts a double-layer screen design. The inner screen is made of round steel screen bars, and the outer screen is made of high manganese wire mesh. We can also match it with a diesel engine or electric motor.
Working Principle
When the alluvial gold and placer gold enter the drum device, due to the incline and rotation of the drum device, the materials on the screen surface are flipped and rolled, so that the qualified materials are discharged through the outlet at the bottom of the rear end of the drum, and the unqualified materials are discharged through the outlet at the rear end of the drum. Discharge from the discharge port.
Specification
Model | GMTS1225 | ||||||
Drum Diameter | 1200mm | ||||||
Drum Length | 2500 mm | ||||||
Towing Hook | Include | ||||||
Tires Size | 650-16 | ||||||
Rubber Tires Quantity | 4 pieces | ||||||
Spray Pipe Material | Galvanized seamless pipe | ||||||
Capacity | 30-50 tons/hour | ||||||
Engine | Diesel engine Electric motor | ||||||
Sluice Box | 1000x6000mm | ||||||
Grizzly | Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 1.3m³ | ||||||
Weight | 1900kg | ||||||
Certifications

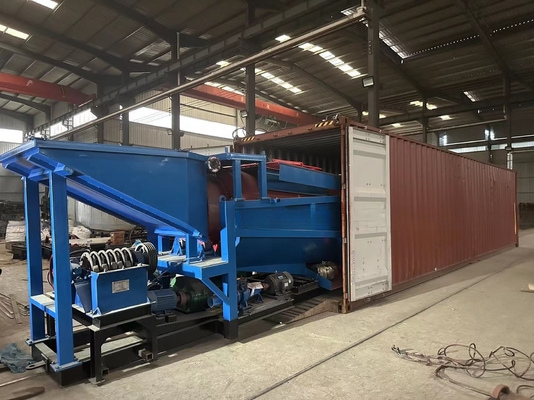

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
