Model: GMTS1848
Capacity(t/h): 150-200
Diameter(mm): 1800
Length(mm): 4800
Dimension(mm): 8000*2200*4000
Hopper size(mm): 2200*2000*1320
Feeding height(m): 3
Engine: motor engine/ diesel generator engine
 |
User-friendly Design Gold Trommel Screen Scrubber Machine for Large Scale Washing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $17,900.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | Egypt, Canada, United Kingdom, United States, France, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 150-200t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 8000*2200*4000mm | Weight: | 6800 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Engine, Other |
| Key Selling Points: | Big Capacity | Application: | Gold |
| Product Name: | Gold Mining Machine | Keywords: | Centrifugal Gold Concentrtor |
| After-sales Service Provided: | Service Machinery Overseas | Usage: | Mining Concentration |
| Name: | Gold Mobile Trommel Screen | Color: | Customized Making |
| Installation: | Technical Support | Material: | Steel |
Product Description
Product Description

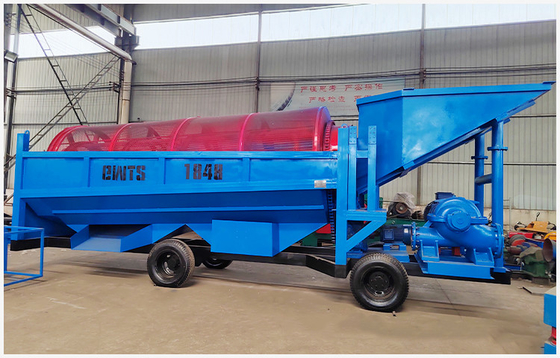

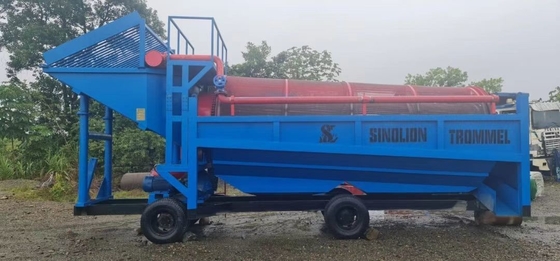

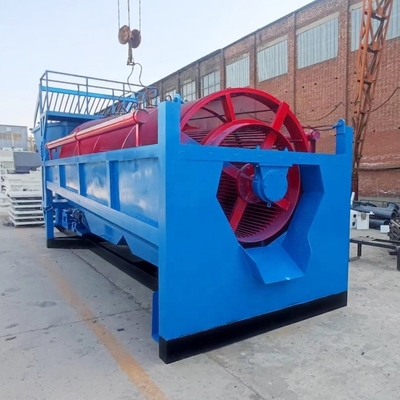

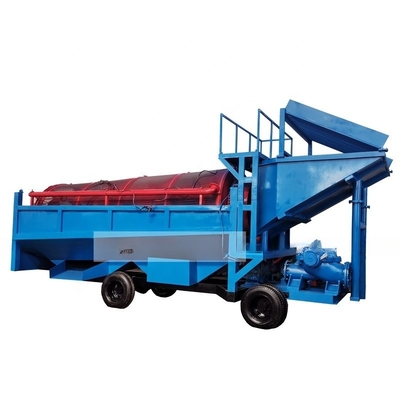

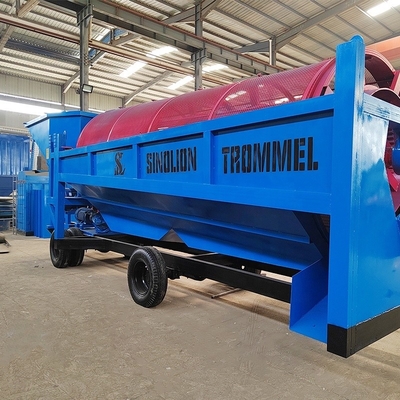

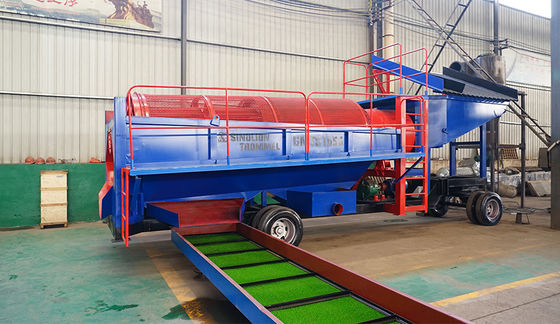

Suitable for placer gold or alluvial gold mobile trommel screen
The mobile gold drum screen1848 is a movable gold selection platform, which is mainly used in dry land, beaches and ancient rivers. Gold Mobile Trommel Screen 1848 can process 150-200 tons of materials per hour, with a recovery rate of up to 98%. GMTS18489 is double layer structure, and the inner is round steel, the outer is high manganese steel woven mesh. It is a movable platform with a traction on the front side of the machine body, it can rotate 180°, which can be well fixed and moved on the sand. It is mianly consist of motor, drum device, frame, tries, grille, work platform, traction, and inlet and outlet. We can also match electric motor or a diesel generator engine. Our Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
Production Line
Specification
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Case
Company Profile
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
