Portable Gold Washing Plant Mobile Trommel Screen Machine Prices with Steel Material
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $14,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company, Other | Showroom Location: | Egypt, Canada, United Kingdom, United States, Germany |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 80-150t/h | Voltage: | 220V/380V/440V |
| Dimension(L*W*H): | 8m*2.2m*3.6m | Weight: | 6500 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Engine |
| Key Selling Points: | Multilayer | Application: | Alluvial Gold Washing |
| Usage: | Mining Concentration | Product Name: | Gold Separation Equipment |
| Keywords: | Centrifugal Gold Concentrtor | Installation: | Under Guidance |
| Capacity: | 80-150t/h | Material: | Steel |
| Color: | As You Request | After-sales Service Provided: | 1 Year |
| Name: | Gold Ore Processing Equipment | ||
Product Description
Product Description

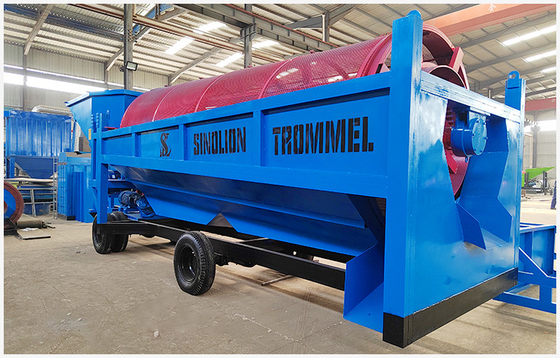

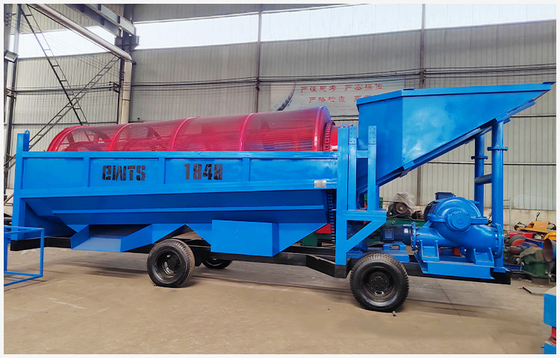

Gold trommel screen 1548

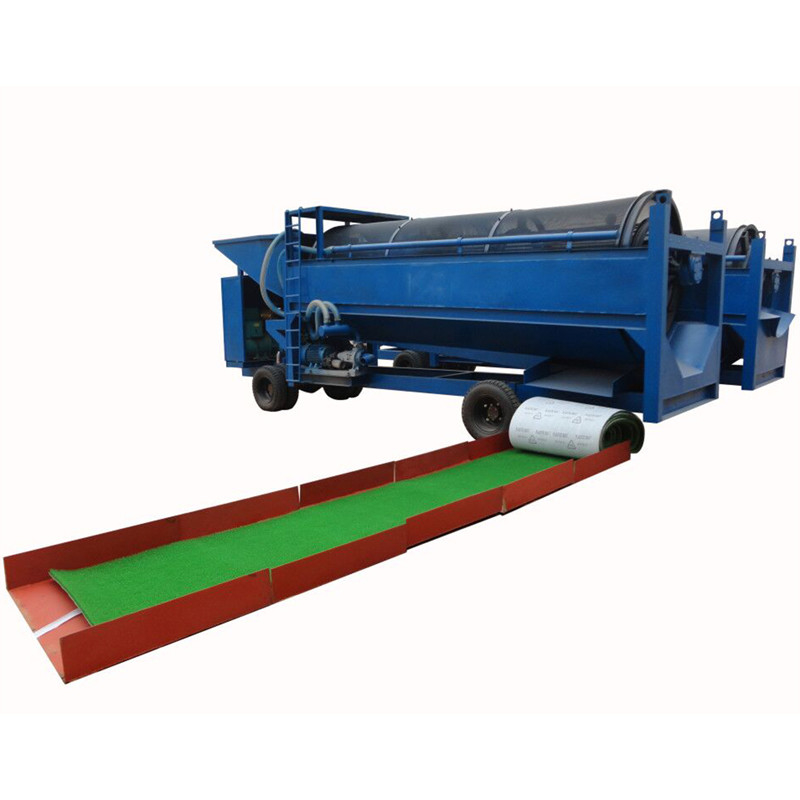

The 1548 model gold mining trommel screen adopts a double-layer screen design. The inner layer adopts a round steel structure, which helps prevent large materials from directly impacting the screen, greatly extending the service life of the outer screen and improving the screening efficiency of the outer screen. The outer layer is made of high manganese woven mesh with a pore diameter of 5mm. If you want other sizes of pores, we can according to your require customize it. The water pipe material is a galvanized seamless pipe located above the drum. When the equipment is running, the water can flow directly into the drum for washing gold. There is a ladder on the side of the equipment and a manual work platform on the upper part of the hopper. You can observe the situation in the hopper or manually flush the materials accumulated at the feed port with a high-pressure water gun. The Gold Rush Drum Screen 1548 can be equipped with a clean water centrifugal pump IS100- 65-200 and 1*6m sluice box.
Detail information
Case
Main technical parameter
Model | Trommel Diameter (mm) | Trommel Length (mm) | Capacity (t/h) | Dimensions (L*W*H) | Weight （kg） |
GMTS1548 | 1500 | 4800 | 80-150 | 8*2.2*3.6 | 6800 |
Packing & Delivery
Transported in a 40-foot high container
