High Capacity Compost Separating Rotary Trommel Screeners with Two Belt Conveyors
Product Details:
| Place of Origin: | Henan |
| Brand Name: | Zhengzhou Sinolion Machinery |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Factory, Farms, Home Use, Energy & Mining, Food & Beverage Shops | Showroom Location: | United States, Italy, Philippines, Mexico, UAE, Colombia, Nigeria, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Motor, Gear | Condition: | New |
| Application: | Screener | Voltage: | 220/380V |
| Weight: | 2900 KG | Warranty: | 1 Year |
| Model: | MTS1230 | Raw Materials: | Compost, Soil, Charcoal,Firewood, |
| Mesh Materials: | Manganese Steel,Steel Plate | Capacity: | 0-90 M³/h |
| Color: | Blue,Red,Yellow,gray | Diameter Of Mesh Pole: | 5-50 Mm |
| Logo: | Customization | ||
Product Description
Specifications
Scope of Application
Like all machines in the MTS series, the MTS 1230 not picked about sifting out waste and raw materials regards. It isequally suitable for compost, soil,light rubble, wood, biomass, sand and gravel etc. Screening materials: earth, sand, gravel, compost, wood chips, construction waste, recycling material, slag, crushed stone and stone in grain sizes from 2 mm to 80 mm.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |

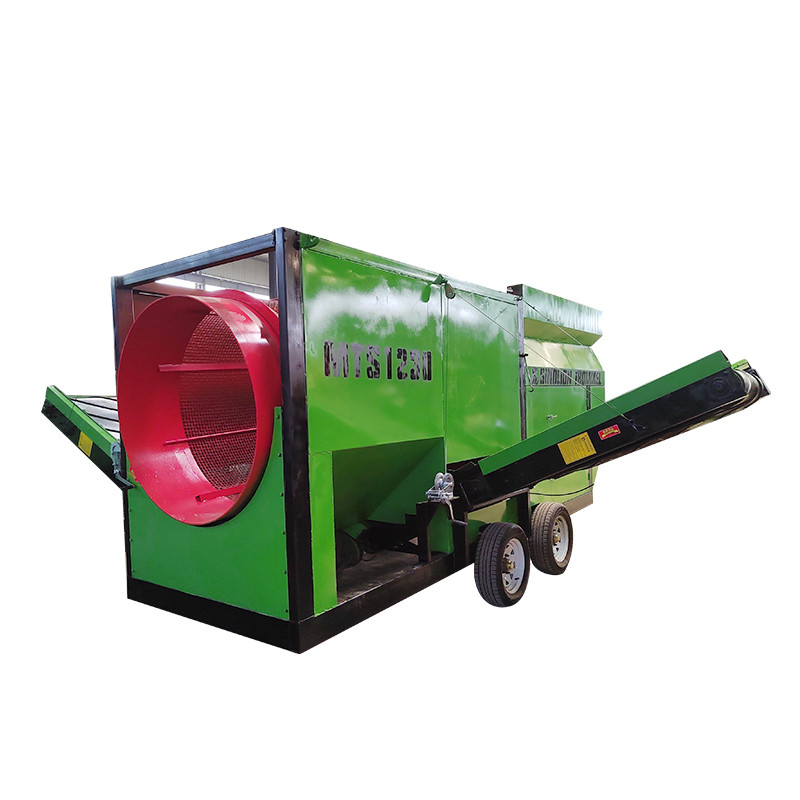

MTS1230
This trommel screeener have perfect outlook and durable performance. This is the product with the highest repurchase rate. The side conveyor can screen materials with different diameters.
Brief introduction
Our products are professional in all kinds of trommel screeners, which can meet your different requirements in sieving compost, soil, topsoil, firewood, worms, rock, charcoal, food and so on.
Our products with quality inspection certificates are produced by our R& D team.
Our products can be customized as clients'requirements including logo, color, size and so on.
Our products can adjust different mesh pole diameter and mesh materials as clients'actual needs.
Our products have different dimensions with height, size of drum, size of feeding hopper.
Our products can be equipped with motor, diesel generator,gasoline generator.
Model | MTS1230 | ||||||||
Dimension | 5.4*2.1*2.7 mm | Weight | 2900 kg | Capacity | ≤60m³/h | ||||
Power | 11.4 kw | Feed hopper | 2.35*1.6*0.88mm | Feed hopper | 2 m³ | ||||
Drum diameter | 1200 mm | Drum length | 3000 mm | Belt conveyors | B650*2200 | ||||
Trailer towing : It helps the whole machine to move easily. Machine guard: it avoids collisions and deformation.
Electric control cabinet : It regulates speed, and sets the control switches of each part at the same time.
Feed hopper: feed raw materials into hopper.
Tire: it facilitates machine movement.
Electric control cabinet : It regulates speed, and sets the control switches of each part at the same time.
Feed hopper: feed raw materials into hopper.
Tire: it facilitates machine movement.
Advantages
This trommel screener consists of drum trommel, belt conveyor, feed hopper, trailer towing, machine guard, electric control cabinet, tires, brush, motor and so on.
***The belt conveyor both side is equipped and adjusted the height and angle.
***The trailer towing and tire make the machine move easily and change different working site.
***We provide all the accessories, which can be installed and used after the customer gets the goods.
***The brush cleans the pole of mesh, which makes mesh working efficiently.
***There is a belt conveyor inside to ship the raw materials from feed hopper to drum trommel.
1、The appearance is grand, with practicality and beauty.
2、Large 2 m³ feed hopper with a loading height of just 1.8 m 3、2.5 m long discharge belt conveyors with only 1.75 m delivery height 4、The optional control panel is convenient for starting and running the machine. 5、The compact size saves you transportation costs.
More details can be referred by MTS1230.
Case
Company Profile
FAQ
Inquiry
1、What's the raw materials for screening ?
Our trommel screeners can be used to sieve compost, soil, topsoil, worms, wood, charcoal, rock, cobblestones, and other materials as client's actual requirements.
2、Can you accept customization ?
Of course ! Our customized service is including color, diameter of pole mesh, mesh metarials, and so on. Our engineer will check again for voltage, power, electric motor or diesel generator available in your actual sites.
3、 What is payment method ?
We accept T/T, paypal, and others as your actual situation.
4、How about the warrenty ?
We make sure the working of main components for one year.
5、Can you provide installation guidance ?
Yes, we will send installation manual, and provide guidance from our engineers.
