Product Details:

Place of Origin: Henan, China
Brand Name: sinolion
Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $15,900.00/sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops Showroom Location: Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Gear Condition: New
Type: Flotation Separator Voltage: 380v/415v/440v
Dimension(L*W*H): Depends On Models Weight: 3200 KG
Warranty: 1 Year Product Name: Mobile Trommel Screener For Earth, Sand, Gravel, Compost, Wood Chips
Application: Earth, Sand, Gravel, Compost, Wood Chips, Construction Waste Screen Material: Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel
Discharge Size: As Request After-sales Service Provided: Field Maintenance And Repair Service

Product Description

Product Overview

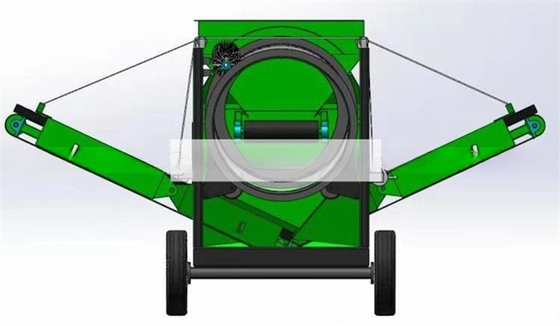

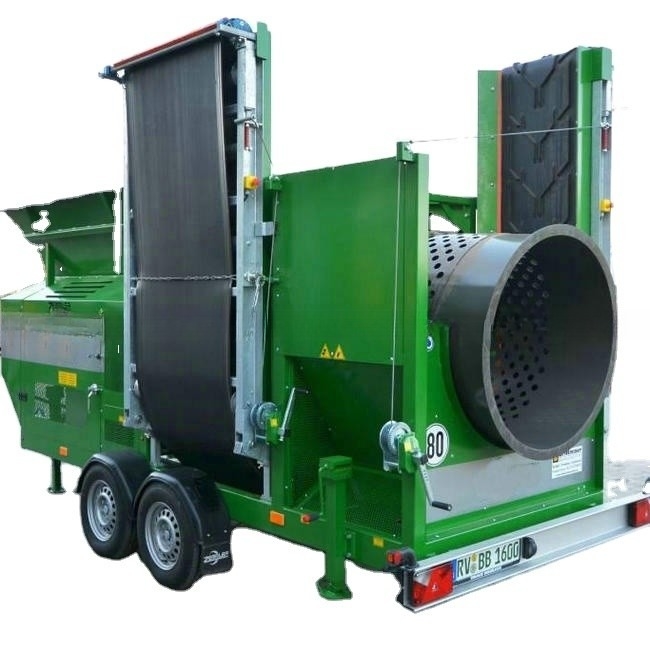

Mobile trommel screener MTS1230 for earth, sand, gravel, compost, wood chips

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening,landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.
FEATURES AT A GLANCE
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 0
Scope of application
Like all machines in the MTS series, the MTS 1230 not picky about sifting out waste and raw materials regards. It is equally suitable for compost, soil,light rubble, wood, biomass, sand and gravel etc.
Screening materials: earth, sand, gravel, compost, wood chips, construction waste, recycling material, slag, crushed stone and
stone in grain sizes from 2 mm to 80 mm
Advantages
·Quick change system for the sieve insert, optionally drum or star screen insert
·Large 2 m³ feed hopper with a loading height of just 1.8 m ·2.5 m long discharge belts with 1.75 m delivery height
·Electronic load control for a perfect screening result optimal throughput
·Perfect mobility thanks to compact transport dimensions
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 1
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 2
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 3
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 4
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 5
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 6
PRODUCT SPECIFICATIONS
Model
Trommel diameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
Weight
(Kg)
Dimensions
(L*W*H)
MTS1230
1200
3000
≤60
3210
5.4*2.1*2.7
Successful Project
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 7
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 8
Company Profile
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 9
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 10
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 11
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 12
Mobile Trommel Screener MTS1230 for Earth Sand Gravel Compost Wood Chips High Capacity 13
FAQ
1. What's the delivery time after I pay the deposit ?
In your first inquiry, please let us know your information and requirements, we will give you guidance for choosing the right
machine.

2. Is mineral samples analysis available?
Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable
solution and equipment selection.

3. What's the delivery time after I pay the deposit?
We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.

4. How long of your machine quality guarantee terms ?
Quality guarantee time is one year(wearing parts excluded).
