PE series jaw crusher machine for broken constructions waste cement blocks and bricks
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $1,200.00/sets >=1 sets |

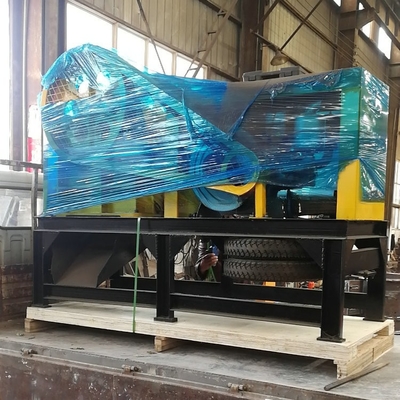

Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
Supply Ability: | 50 Set/Sets per Month constructions waste jaw crusher |
Detail Information |
|||
Applicable Industries: | Machinery Repair Shops, Home Use, Other, Advertising Company | Showroom Location: | None |
---|---|---|---|
Condition: | New | Type: | Jaw Crusher |
Application: | Chemical Industry, Stone, Ore, Glass,, Granite, Basalt, Gravel, Coal Gangue, Gold Ore, Bricks, Cement Blocks | Motor Type: | AC Motor |
Capacity(t/h): | 1-500t/h | Dimension(L*W*H): | As Per Different Model |
Weight: | KG | Warranty: | 2 Years |
Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
Core Components: | PLC, Motor | Key Selling Points: | Easy To Operate |
Product Name: | Waste Broken Cement Blocks Broken Bricks Jaw Crusher Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Model: | PE Series Coal Jaw Crusher Machine | Feeding Size: | 0-1020mm |
Discharge Size: | 0-300 | Jaw Plate Material: | High Manganese |
Driving Type: | Diesel Engine Or Motor | Wearing Parts: | Jaw Plates |
Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Dalian Guangzhou( As Client Request) |
Product Description
Introduction of constructions jaw crusher
1. Lab jaw crusher is widely used in the works of mine, smelting, building materials, road, railway, irrigation,chemical industry etc.
2. The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA. It is the preferred equipment of secondary crushing.
Constructions jaw crusher (4) working principle:
The motor drives the belts and the belt wheels, and make the movable jaw up and down by the
eccentric shaft. When the movable jaw descends, the angle between the fixed jaw and the movable jaw becomes smaller, and the materials can be crushed; when the movable jaw rises, the angle
between the fixed jaw and the movable jaw becomes bigger; and the movable jaw plate leaves
from the fixed jaw by the function of the tension rod and the spring. And then the crushed materials
are discharged from the lower outlet of the crushing cavity.
Primary constructions jaw crusher specifications:
Model | max feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
PE-150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 |
PE-200×300 | 180 | 20-70 | 2-8 | 11 | 1.4 |
PE-250×400 | 210 | 20-80 | 5-20 | 15 | 3 |
PE-400×600 | 350 | 40-100 | 15-60 | 30 | 6.5 |
PE-500×750 | 425 | 50-100 | 40-110 | 55 | 11.3 |
PE-600×900 | 480 | 65-160 | 90-150 | 75 | 17.625 |
PE-750×1060 | 630 | 80-160 | 100-250 | 90-110 | 27.5 |
PE-900×1200 | 750 | 95-165 | 120-300 | 110-160 | 52 |
PE-1000×1200 | 850 | 110-260 | 180-350 | 110-160 | 57 |
PE-1200x1500 | 1020 | 150-300 | 300-500 | 180-220 | 100 |
Secondary constructions jaw crusher specifications:
Model | max feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
PEX-150×750 | 120 | 8-25 | 10-40 | 15 | 3.5 |
PEX-250×750 | 210 | 12-25 | 15-50 | 30 | 5.5 |
PEX-250×1000 | 210 | 12-50 | 30-95 | 37 | 6.37 |
PE-350×750 | 300 | 15-50 | 20-50 | 30 | 6.5 |
PE-300×1300 | 250 | 20-90 | 45-130 | 75 | 11 |
PE-600×900 | 480 | 65-160 | 90-150 | 75 | 17.625 |
Constructions jaw crusher structure:

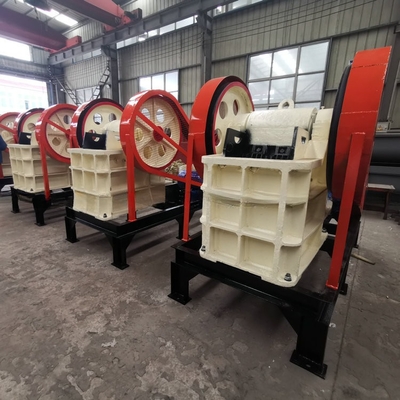

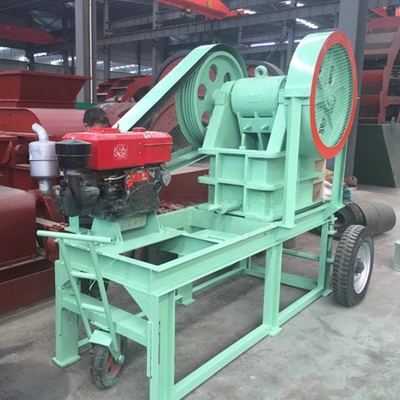

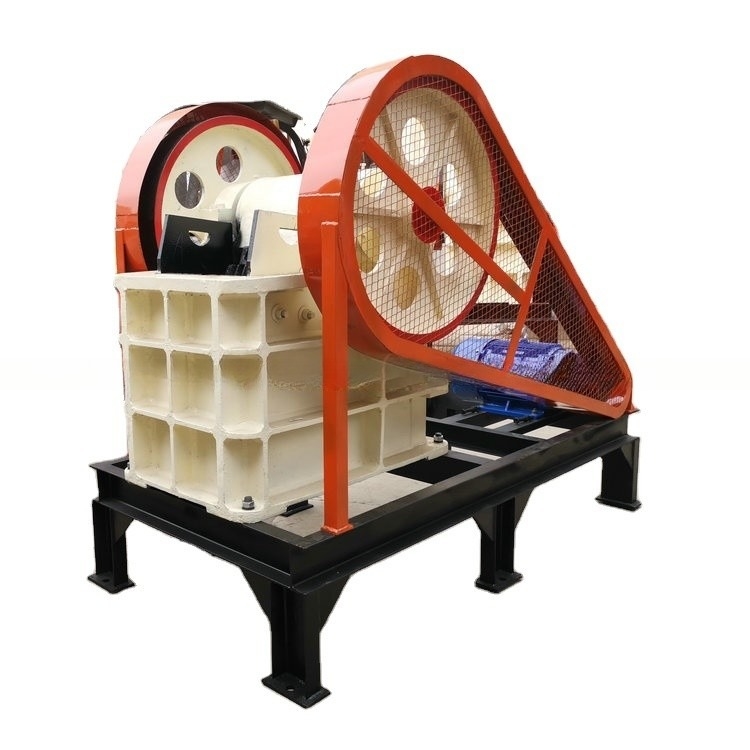

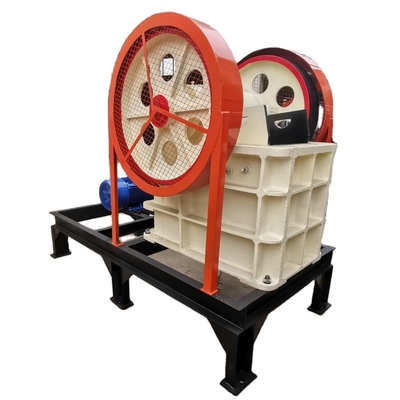

Finished jaw crushers:
Laboratory jaw crusher spare parts:

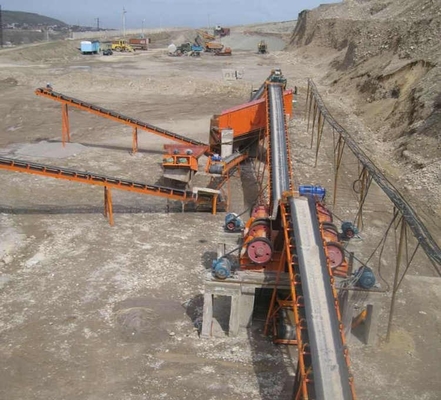

Jaw crushers from Sinolion customers working site:
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.




Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
