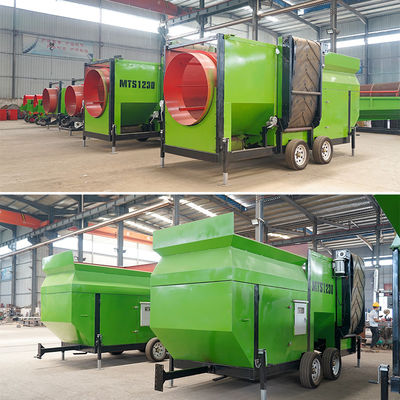

Mobile Compost Trommel Screen with 110V--440V Voltage and 5600x2015x2010mm Size
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,080.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case. |
| Supply Ability: | 50 Set/Sets per Quarter |
|
Detail Information |
|||
| Applicable Industries: | Farms, Home Use, Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, PLC, Gearbox, Motor | Condition: | New |
| Type: | Gravity Separator, Compost Trommel Screener | Application: | Sawdust, Firewood, Topsoil, Compost, Solid, Municipal Soild Waste |
| Voltage: | 110V--440V( As Client Request) | Dimension(L*W*H): | 5.4*2.1*2.7m |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Product Name: | Mobile Compost Trommel Screen | Capacity: | 60m3/h |
| Drum Length: | 3000mm | Drum Diameter: | 1200mm |
| Trommel Power: | 4KW | Power: | 3-45KW |
| Dimension: | 5600x2015x2010mm | Feeding Size: | Less Than 300mm |
| Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) | ||
Product Description
Factory Price High Performance Mobile Trommel Compost Sifter Mobile Compost Trommel Screen
This mobile compost trommel screen is made of high quality materials. Designed for high performance, high productivity, low operating costs and low maintenance. The compost is classified after entering the drum, and the larger material flows forward along the inclined direction of the drum, and gradually passes through different screens for classification. The graded small materials fall into their respective silos, and are sent to finished product stacking by manpower or belt conveyors. This mobile compost trommel screen can neatly screen e.g. compost, soil, sand, slag, gravel, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. This Mobile compost rotary drum screen is used not only for earth processing, but also for more specific fields of application, such as the extraction of recyclable parts of plastics, foils and wood chips and the processing of composting, grinding materials, construction rubble, stone, gravel , and glass is even recycling sandbags.
Structure and Principle
The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motorpower （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
