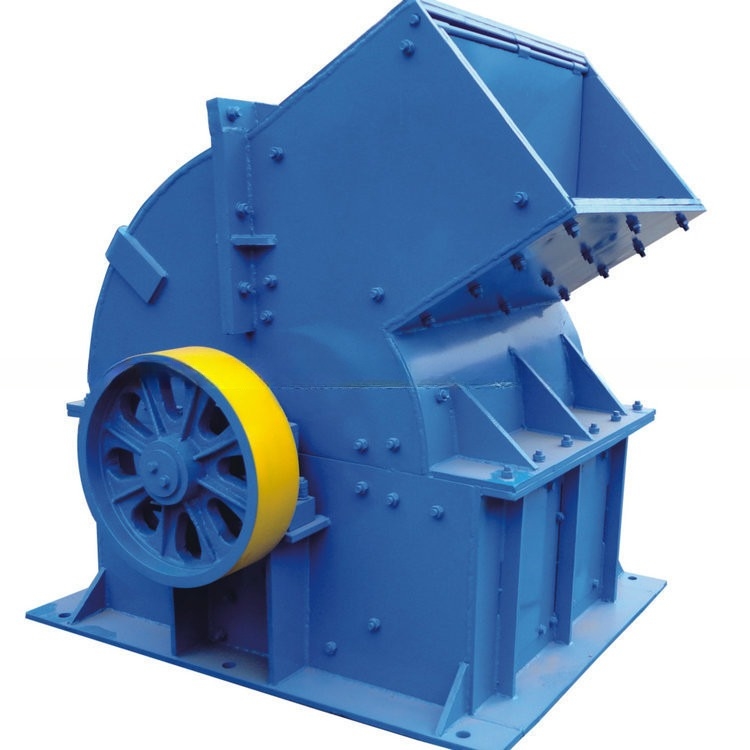

Hammer Crusher For Energy Mining Professional Stone Crasher Machine

Hammer Crusher For Energy Mining Professional Stone Crasher Machine

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,100.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: None
Condition: New Type: Hammer Crusher
Motor Type: AC Motor Capacity(t/h): 1-500t/h
Dimension(L*W*H): As Per Different Model Weight: 3000 KG
Warranty: 2 Years Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: PLC
Key Selling Points: Easy To Operate After-sales Service Provided: Video Technical Support

Product Description

Product Description
Hammer Crusher For Energy Mining Professional Stone Crasher Machine 0

The Instroction of Stone Crasher Machine Hammer Impact Crusher For Sale

Stone Crasher Machine Hammer Impact Crusher For Sale is a crusher whose purpose is to shred or crush aggregate material into smaller pieces by the repeated blows of little hammers. The basic principle is straightforward. A hammer crusher is essentially a steel drum containing a vertical or horizontal rotating shaft or drum on which hammers are mounted. The hammers are free to swing on the ends of the cross, or fixed to the central rotor. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper. The material is impacted by the hammer bars and is thereby shredded and expelled through screens in the drum of a selected size. The hammer crusher can be used as a primary, secondary, or tertiary crusher.

Hammer Crusher Drawing:

Hammer Crusher For Energy Mining Professional Stone Crasher Machine 1



Working Principle of Stone Crasher Machine Hammer Impact Crusher For Sale:


 The main working part of  hammer mill stone crusher is the rotor with hammers.The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor.The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.


Stone Crasher Machine Hammer Impact Crusher For Sale technical parameters:

Model
Feeding Size(mm)
Discharging Size(mm)
Capicity(t/h)
Power(kw)
Weigh(t)
PC400*300
≤100
≤10
5-10
11
0.8
PC600*400
≤120
≤15
10-25
18.5
1.5
PC800*600
≤120
≤15
20-35
55
3.1
PC1000*800
≤200
≤15
20-40
90
7.9

PC1000*1000
≤200
≤15
30-70
132
8.66
PC1250*1250
≤250
≤25
50-100
185
10.5
PC1300*1200
≤250
≤29
60-150
240
13.6
PC1400*1400
≤280
≤30
120-170
280
16.2
PC1600*1600
≤350
≤30
200-280
450
19.6


Main Features of Hammer mill stone crusher:


1. Working hammer casting with new technology, wear-resistant and impact-resistant.
2. Output size can adjust according to the customer's request.
3. Beautiful overall design, compact structure, less easily damaged parts, easy maintenance and other advantages, is an upgraded product.

4.Hammer crusher can be used in both dry and wet material, with simple structure, large crushing and high productivity.

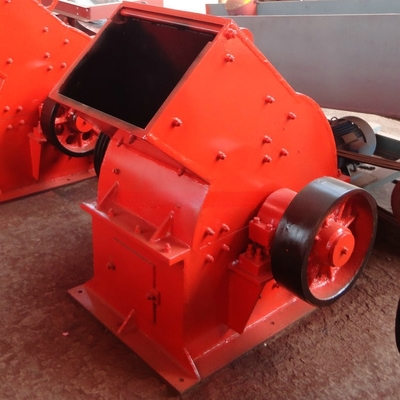

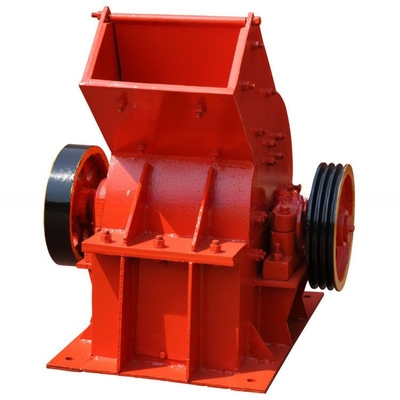

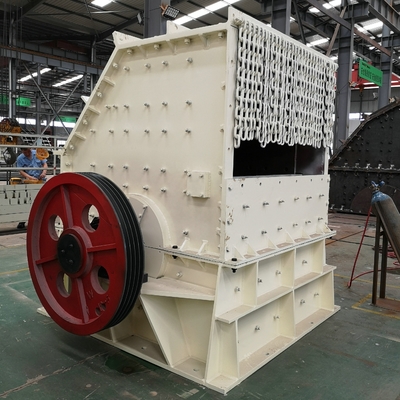

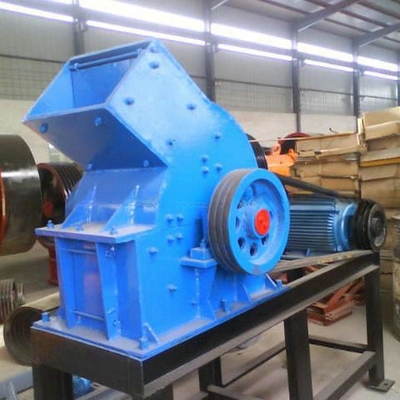

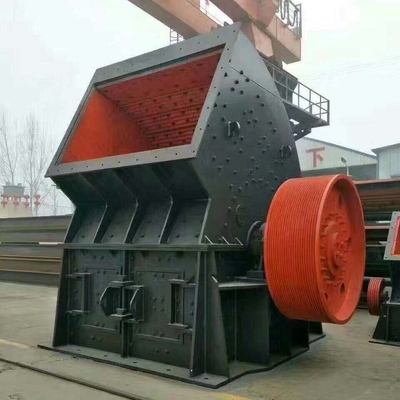

Detailed Images
Hammer Crusher For Energy Mining Professional Stone Crasher Machine 2
Hammer Crusher For Energy Mining Professional Stone Crasher Machine 3
Hammer Crusher For Energy Mining Professional Stone Crasher Machine 4
Hammer Crusher For Energy Mining Professional Stone Crasher Machine 5
Our Service

1. Pre-sale service:

1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore, iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.

2. Sale service:

1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.

3. After Sale service:

1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.

Packing & Delivery

1. Waterproof packing with the international export standard by 20GP, 40GP, 40HQ container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.

Hammer Crusher For Energy Mining Professional Stone Crasher Machine 6
Our Company

Zhengzhou Sinolion Machinery Co., Ltd. is a high-tech Company which professional manufacturing the production of briquette equipment, building material equipment, and mining machinery.
we will continue to adhere to "Quality is our eternal pursuit and pride", create new glories with customers! Welcome to Sinolion for visiting and seeking common development.

Hammer Crusher For Energy Mining Professional Stone Crasher Machine 7
FAQ

Question 1: What's the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.


Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.


Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc


Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
