Trommel Screen 's Soil Drum Sieve Ideal for Sieving Dirt and Compost in Energy Mining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $1,200.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Mexico |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 2 Years |
| Core Components: | Gearbox, Motor | Condition: | New |
| Type: | Compost Trommel Screener | Application: | Plaster, Topsoil, Compost, Solid, Municipal Soild Waste, Glass, Mulch, Organics, Bark, MSW, Municipal Solid Waste |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 18 Month Excluding Spare Parts |
| Product Name: | Trommel Screen Soil Drum Sieve For Sieving Dirt And Compost | Model: | Compost Trommel Screener 1200x2500 |
| Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel | Power: | 3-45KW |
| Installation: | Supply Manual To Guide User | Capacity: | 30-50 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

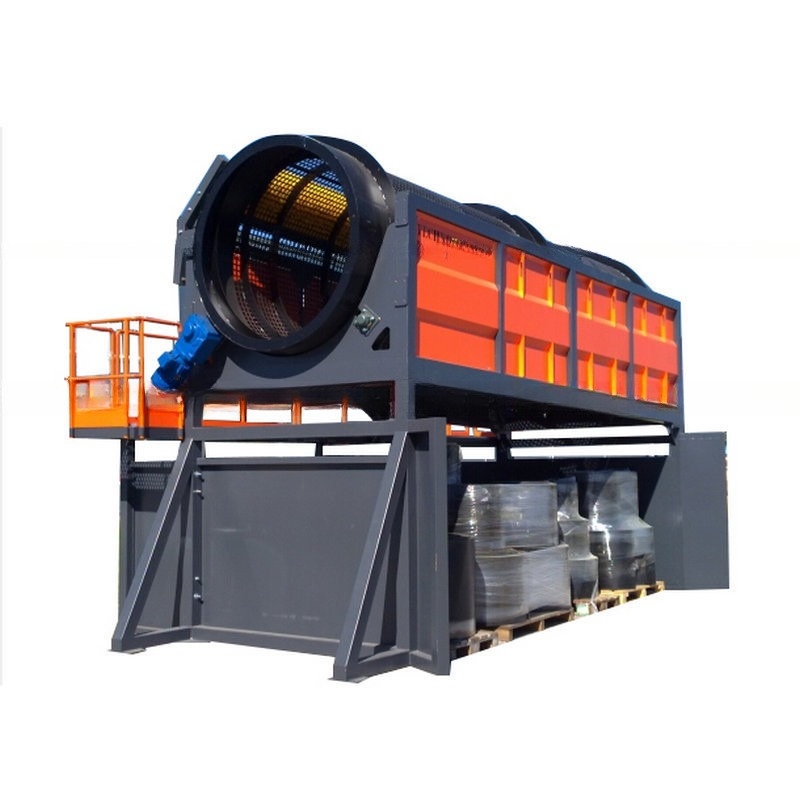

Trommel screen manufacturer soil drum sieve for sieving dirt and compost
GTS series trommel screen, also known as drum screen and drum sieve, used to process topsoil, gravel, stone, concrete, dirt, sand, compost, mulch and other bulk materials.
Trommel Sieve Machine Vibrating Screener For Soil vibration motor excitation as the source of vibration, so that the material was tossed in the sieve, while forward in a straight line material evenly into the screening machine feeder feed port, multi-layer mesh specifications of sieve, sieve material, respectively, discharged from their exports. With low power consumption, high yield, simple structure, easy maintenance, fully enclosed structure, no dust, automatic nesting, more suitable for pipeline operations.
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
1. lowering initial investment cost (comparative price)
2. saving operational cost (outstanding durability and simple mechanical structure)
3. reducing any additional cost in the future (high productivity & mobility)
4. GTS series can precisely select gold dust in highest yield rate of 98%.
5. High gold dust gathering capability by long-time and non-stop operation
| Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension |
| GTS1020 | 10-30 | 4.0 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
| GTS1225 | 30-50 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
| GTS1545 | 50-120 | 11 | 1500 | 4500 | 0-100 | ≤400 | 8160×2300×2500 |
| GTS1548 | 80-150 | 11 | 1500 | 4800 | 0-100 | ≤400 | 8460×2300×2500 |
| GTS1848 | 100-200 | 15 | 1800 | 4800 | 0-100 | ≤400 | 8460×2300×2700 |
| GTS2060 | 200-350 | 30 | 2000 | 6000 | 0-100 | ≤400 | 9680×2300x3420 |
Packing Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case. Loading container in factory.
Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Why Choose US
-
Manufacturer, more reasonable price
- International high quality certification product chain
-
Solid technical support and after-sales service
-
Uphold the principle of “Customer Supreme”
-
Exports to more than 20 countries and regions, good customers feedback
-
One-stop service, customized exclusive project feasibility report
if you want to get the briquette machine , you need use our briquette machine below :
if you need more photos and video , please click here to contact me :
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 4: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
