Machinery Repair Shops Dependable Limestone Jaw Crusher for Primary Crushing Line
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinoline, Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $1,100.00 - $110,000.00/sets |
Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel box or wooden box. |
Supply Ability: | 50 Set/Sets per Quarter |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining | Showroom Location: | None |
---|---|---|---|
Condition: | New | Type: | Jaw Crusher |
Application: | Chemical Industry, Stone, Ore, Glass, Coal | Motor Type: | AC Motor |
Capacity(t/h): | 1-500t/h | Dimension(L*W*H): | Depends On Models |
Weight: | 600 KG | Warranty: | 1 Year |
Marketing Type: | New Product 2021 | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1.5 Years |
Core Components: | PLC, Motor, Engine, Pump | Key Selling Points: | Competitive Price |
Keyword: | Limestone Jaw Crusher Of Mining Machine | Feeding Size: | 0-1020mm |
Discharge Size: | 0-300 | Jaw Plate Material: | High Manganese |
Driving Type: | Diesel Engine Or Motor | Wearing Parts: | Jaw Plates |
Installation: | Supply Manual And Send Engineer To Guide User | Product Name: | Primary Crushing Line Limestone Jaw Crusher Of Mining Machine |
Port: | Qingdao, Tianjin, Lianyungang, Shanghai Dalian Guangzhou( As Client Request) |
Product Description

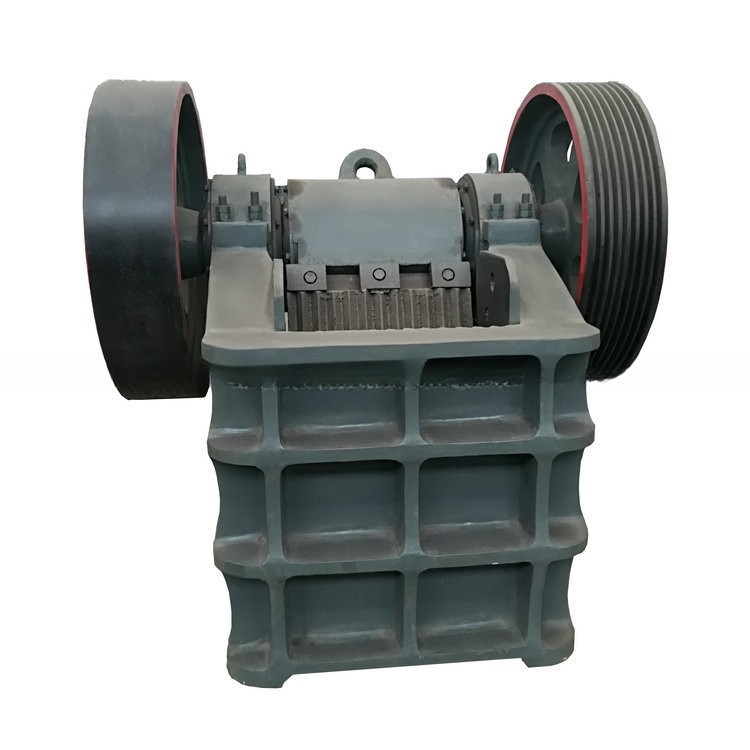

Primary Crushing Line Limestone Jaw Crusher of Mining Machine
Crasher stone crusher machine
The jaw crusher has been a staple of the hard rock mining industry since its invention. It is used as a primary crusher for all types of ores. The jaw typically takes the larger run of mine product and produces a sized discharge for feed to a secondary crusher such as a cone crusher, ball mill, or hammer mill. We have sold our jaw crushers to many different industries over the years, but the hard rock mining industry is still the #1 purchaser of our jaw crushers and other equipment such as turn-key ore processors.
Crasher stone crusher machine working principle:
Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done.
When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room.
With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.
Our diesel engine jaw crusher model: 150*250, 200*300, 250*400, 400*600.
Diesel engine jaw crusher for sale technical parameters:
Model | max feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
PE-150×250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 |
PE-200×300 | 180 | 20-70 | 2-8 | 11 | 1.4 |
PE-250×400 | 210 | 20-80 | 5-20 | 15 | 3 |
PE-400×600 | 350 | 40-100 | 15-60 | 30 | 6.5 |
PE-500×750 | 425 | 50-100 | 40-110 | 55 | 11.3 |
PE-600×900 | 480 | 65-160 | 90-150 | 75 | 17.625 |
PE-750×1060 | 630 | 80-160 | 100-250 | 90-110 | 27.5 |
PE-900×1200 | 750 | 95-165 | 120-300 | 110-160 | 52 |
PE-1000×1200 | 850 | 110-260 | 180-350 | 110-160 | 57 |
PE-1200x1500 | 1020 | 150-300 | 300-500 | 180-220 | 100 |
Secondary diesel engine jaw crusher technical parameters:
Model | max feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
PEX-150×750 | 120 | 8-25 | 10-40 | 15 | 3.5 |
PEX-250×750 | 210 | 12-25 | 15-50 | 30 | 5.5 |
PEX-250×1000 | 210 | 12-50 | 30-95 | 37 | 6.37 |
PE-350×750 | 300 | 15-50 | 20-50 | 30 | 6.5 |
PE-300×1300 | 250 | 20-90 | 45-130 | 75 | 11 |
PE-600×900 | 480 | 65-160 | 90-150 | 75 | 17.625 |
Diesel engine jaw crusher for sale structure:
Portable diesel engine jaw crusher:

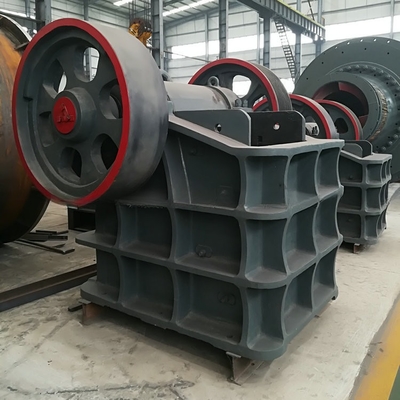

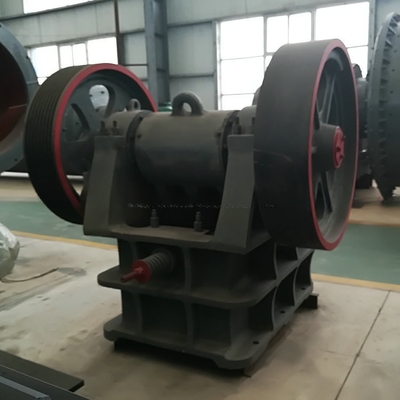

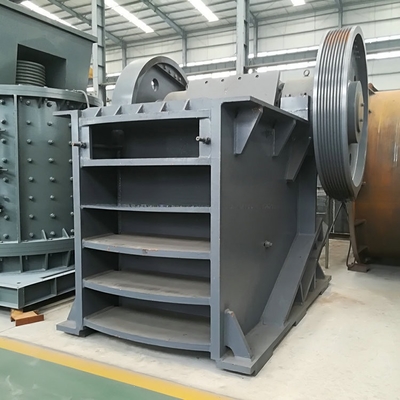

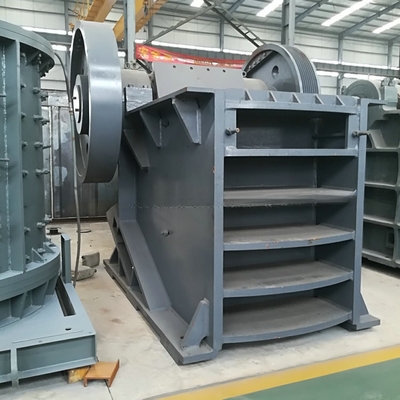

Finished jaw crushers:

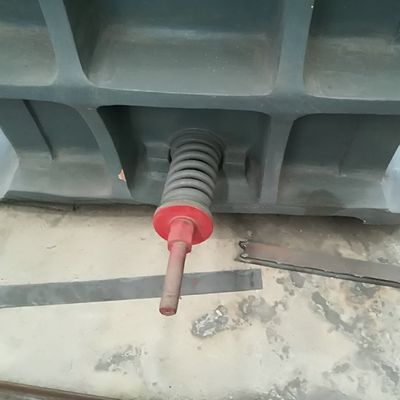

Jaw crusher spare parts: jaw plates, spring, fly wheels, etc.
1. Pre-sale service:
1) Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
4) Spare parts and wearing parts will be offered with production cost in 10 years.
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
