Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $1,500.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Hotels, Manufacturing Plant, Home Use, Food Shop, Energy & Mining, Food & Beverage Shops Showroom Location: None
Condition: New Type: Wood Chipper
Power Type: Diesel Weight: 400 KG
Warranty: 1 Year Marketing Type: New Product 2021
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Gear, PLC
After-sales Service Provided: Engineers Available To Service Machinery Overseas Application: Peanut, Straw Stalk, Corn Cob, Straw, Couch Grass
Spare Parts: Hammer Blades Quatity: 24 Pieces
Capacity: 1000-1500kg/h Feeding Size: Less Than 300mm
Rotation Speed: 3500 R/min Color: Yellow, White, Red, Blue, Gray( Or As Client Request)
Motor Speed: 1440r/min

Product Description

Production description

Wood crusher introduction:

1. Our wood crusher is the ideal equipment for advanced production of edible mushroom cultivition, biomass fuel pellet making. It can process the wood, branch into sawdust or powder at the same time.



2. The wood crusher machine also can be used for making raw materials for shaving broad, sawdust broad and MDF.



The wood crusher produced by our company is a king of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc .It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for pre-processing of wood logs.



Wood crusher machine advantage:

1.1. Wood crusher can crush wood, corn cob, agri waste, etc.

1.2. It doesn't need drying wood and can directly crush them.

1.3. It adopts the blade cutting and high-speed airflow impact, collision double crushing function as an organic whole, and also can finish the small material processing operations at the same time . In the crushing process of the blade cutting, rotor produce high-speed airflow, along with the direct of the blade cutting to rotate , materials in the air flow speeds up, and make the material crush by double pieces again at the same time, and speed up the material crushing rate.

Main usage:

It is a whole body with blade and crusher, and can crush 1-20cm wood and branch. It also can adapt bamboo, grass, corn stalk, kaoliang stalk and other kinds of fiber materials.

Technical parameters

Model SLFS-400 SLFS-500 SLFS-600 SLFS-700 SLFS-800 SLFS-1000
Feeding size(mm) 160*200 180*200 200*200 200*250 250*300 300*400
Rotation speed(r/min) 2800 2600 2600 2300 2000 2000
Power(kw) 11 15 18.5-22 22-30 30-45 75
Blades 4 4 4 4-6 4-6 4-6
Output (kg/h) 1200 1500 2000 2500 3000 4000
Cutter diameter 400mm 500mm 600mm 700mm 800mm 1000mm

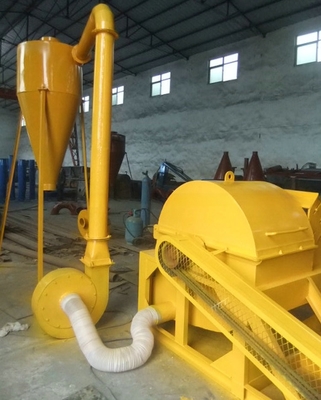

Wood Chipper Crushing Machine for Small Size in Energy Mining 0Wood Chipper Crushing Machine for Small Size in Energy Mining 1

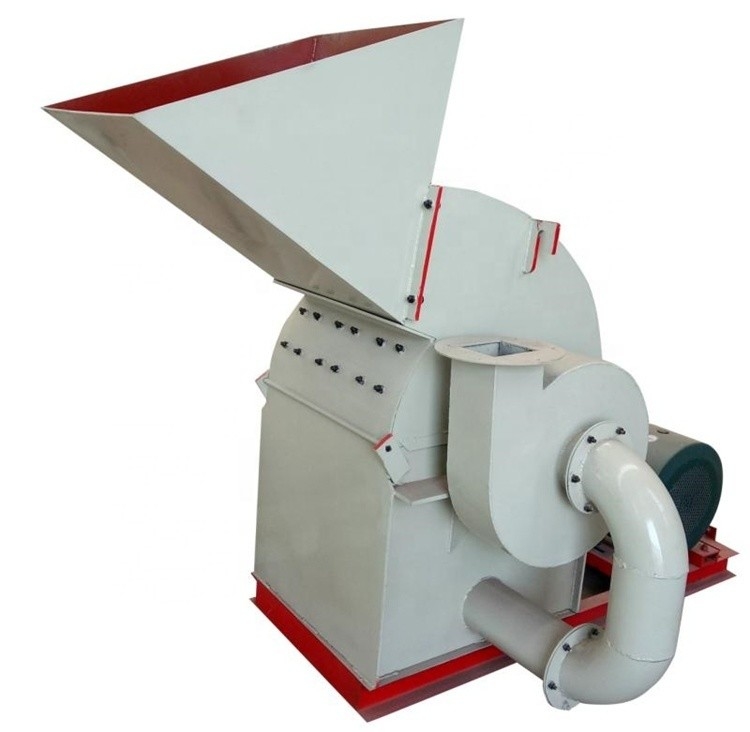

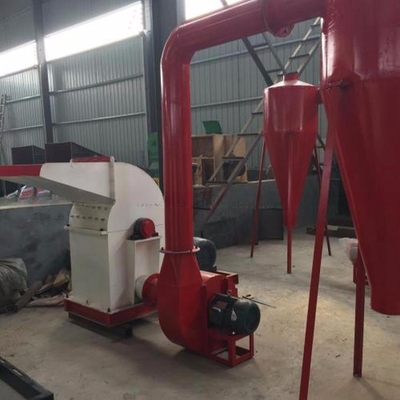

wood mill crusher:
Wood Chipper Crushing Machine for Small Size in Energy Mining 2

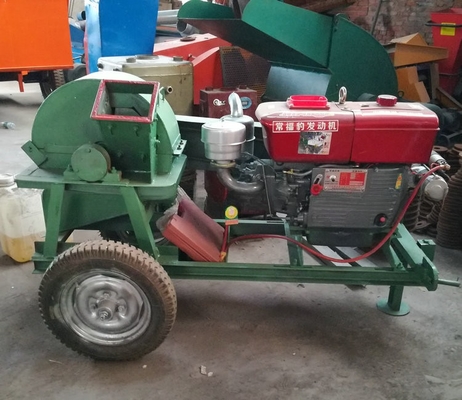

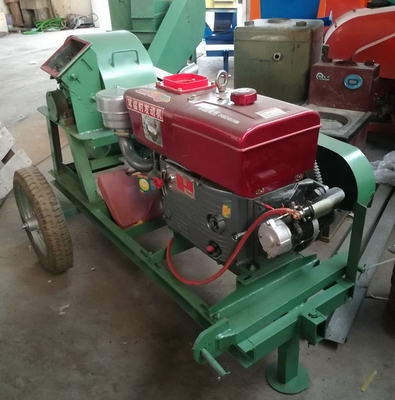

Diesel engine wood crusher:
Wood Chipper Crushing Machine for Small Size in Energy Mining 3Wood Chipper Crushing Machine for Small Size in Energy Mining 4Wood Chipper Crushing Machine for Small Size in Energy Mining 5
Wood Chipper Crushing Machine for Small Size in Energy Mining 6Wood Chipper Crushing Machine for Small Size in Energy Mining 7


Working site

 Wood Chipper Crushing Machine for Small Size in Energy Mining 8Wood Chipper Crushing Machine for Small Size in Energy Mining 9Wood Chipper Crushing Machine for Small Size in Energy Mining 10



Company Information

 Wood Chipper Crushing Machine for Small Size in Energy Mining 11Wood Chipper Crushing Machine for Small Size in Energy Mining 12Wood Chipper Crushing Machine for Small Size in Energy Mining 13

FAQ

01

Q: How do I choose a suitable wood crusher for my project?

A: In your first inquiry, please offer us information about your raw materials, its size, moisture, and the capacity per hour you required, also tell the output per hour you required



02

Q: After ordered a wood log machine, how do we slove the equipment installing?

A: For a small single wood log machine, we offer you user manual, customer will install and commissioning as operating introduction; For a complete wood log machine production line, we will send our engineer to your workplace to help you install and commissioning untill machines work normally.



03

Q: What’s the delivery time after I pay the deposit?

A: We will clear delivery time in sales contract, Single wood log machine often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.



04

Q: How long of your machine quality guarantee terms ?

A: Quality guarantee time is one year(wearing parts excluded).


Our Advantages

Wood Chipper Crushing Machine for Small Size in Energy Mining 14

 High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.

 High Productivity

 Fast Delivery

 Leading Level R & D Department

 Experienced Marketing Manager

 Professional Design Department

 Accept OEM & ODM

 Excellent After-sales Service
