5.5KW Coal Trommel Screen Machine for Separation of Organic and Compound Fertilizer
Product Details:
Place of Origin: | Henan, China |
Brand Name: | Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,100.00 - $28,750.00/sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant | Showroom Location: | None |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
Core Components: | PLC, Engine, Pump | Condition: | New |
Type: | Circular | Application: | Ore, Alluvial Gold Washing, Diamond, Rock, Soil, River Gold |
Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
Weight: | 2200 KG, 2.5-10T | Warranty: | 1 Year |
Product Name: | Drum Screen For Ocrganic Fertilizer Compound Fertilizer Separation | Model: | Coal Trommel Screen Machine |
Power: | 5.5KW, 7.5KW, 11KW | Dimension: | Depends On Model |
Capacity: | 30-150 Tons Per Hour | Feeding Size: | Less Than 300mm |
Discharge Size: | Less Than 6mm | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description
Compost drum screen for ocrganic fertilizer compound fertilizer separation

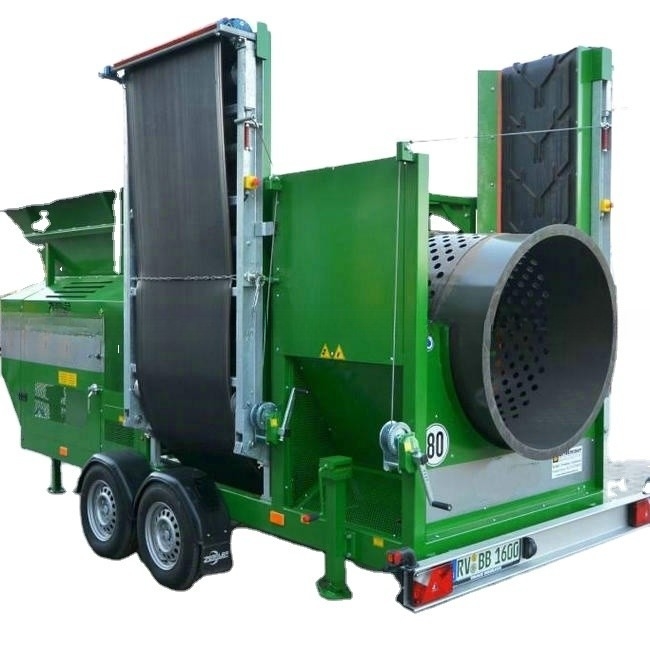

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

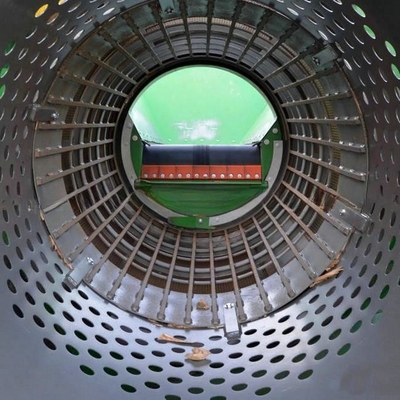

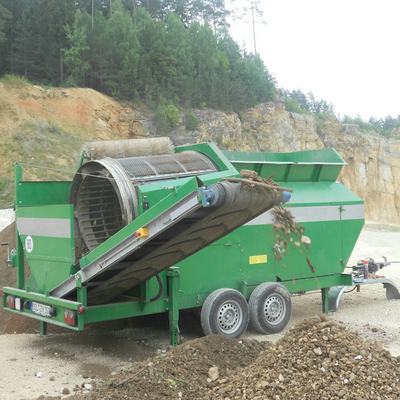

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel,wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.
Model | Trommeldiameter | Trommel length | Capacity | motor power (KW) | Weight | Dimensions |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
![]() | The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.
» Horizontal drum delivers consistent output.
» Material rides on screening surface for extremely effective separation. |
![]() | ![]() | ![]() |
