Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00/sets 1-1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining, Other Showroom Location: Canada, United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia, None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 1 Year
Core Components: Engine, Motor Condition: New
Type: Circular Application: Ore
Voltage: 380v/415v/440v Dimension(L*W*H): 3.15*1.1*1.65m
Weight: 520 KG Warranty: 1 Year
Keyword: Screen Screen Material: Earth,sand,compost, Soil, Wood, Biomass, And Gravel Etc.
Dimension: 3.15*1.1*1.65m Installation: Supply Manual To Guide User
Capacity: ≤15m³/h Feeding Size: Less Than 300mm
Discharge Size: 2mm-80mm Color: Green Or As Client Request
After-sales Service Provided: Field Installation, Commissioning And Training

Product Description

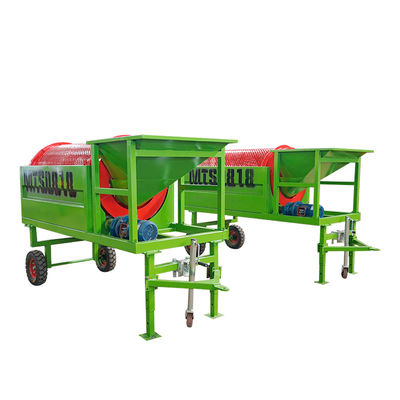

mobile trommel screen MTS0818  supplier direct small trommel screen



Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 0Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 1

Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 2

Product Description

The MTS0818 compost roller trommel screen machine is one of the smallest trommel screens in our factory. It can also be used to screen compost, wood or cow, sheep manure, etc.

It including a 2.33kw electric type,screen area is 3m2,processing capacity is also 15m³/h per hour,product size is 3150*1100*1650mm.



working principle

The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size.The screened material can also be transported out by the side belt conveyor.



Small mobile sand trommel screen for sale has following features:

1. Mesh is not easy to block, automatic cleaning brush on the top of trommel screen to avoid the blockage.
2. Smooth operation, low noise.

3. High screening efficiency, large screening capacity.
4. Simple structure, easy maintenance.
5. Sieve drum can be closed, easy to close the dust collection.

6. Convenient maintenance, the upper hood is removable.

Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 3





Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 4





specifications



Model

Trommel diameter
(mm)

Trommel length
(mm)

Capacity
(m3/h)

Weight
(Kg)

Dimensions
(L*W*H)













MTS0818

800

1800

≤15

650

3.15*1.1*1.65



Customer
 If you are interested in Small mobile sand trommel screen for sale, welcome to reach us here and visit our factory.
Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 5
Company Information

Zhengzhou Sinolion Machinery is a Chinese company with a department specialized in screening equipment;

Being consultant, designer and adviser of placer gold washing plant. Our company manufacture MTS Series mobile trommel screener, GMTS Series gold washing plant, MSW sorting plant and related equipment.



After 10 years of development, Sinolion is now setting up branches, integrating engineering, trade, research and development, production and sale to develop to be a large sized enterprise. Sinolion Machinery has been awarded as the pioneer in the field of screener manufacture in China.



SINOLION has modern standard workshops, as well as advanced technology and testing equipment. Extensively cooperating with environmental engineering research institutions and other research departments, SINOLION has continuously improved product values and performance. Now, there are 80 employees in Sinolion, among which over 30 are holders of Bachelor's Degree and above, and nearly 70% of senior and experienced engineers of researchers specializing in electrical engineering, mechanical engineering, hydraulics, logistics and so on.



SINOLION provides space planning and design, equipment installation and commissioning support. Our company persists in the philosophy of ''quality for survival, reputation and development'', and SINOLION strives to build a world well known brand to satisfy customers in order to let them rest assured with comfort. SINOLION Company is willing to take full use of the new technology, dedicated to providing superior products with reliable quality, favorable prices and perfect service for users who need us to design, manufacture and install production lines.



Like Sinolion, sincere, responsible, diligent and helpful, it brings together many ambitious talents who are good at different fields.

Direct of Small Trommel Screen with 2mm-80mm Discharge Size and Wood Screen Material 6
