Product Details:

Place of Origin: Henan, China
Brand Name: sionlion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00 - $28,750.00/sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Food & Beverage Factory, Farms, Home Use, Energy & Mining Showroom Location: Canada, United States, Australia
Condition: New Type: Mobile Trommel Screen
Production Capacity: 90% Voltage: 110v-440v
Dimension(L*W*H): Customized Weight: 2000 KG
Warranty: 1 Year Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pump, PLC
Key Selling Points: Easy To Operate Product Name: Mobile Trommel Screen
Application: Mining Separation After-sales Service Provided: Video Technical Support
Color: Customized Making Raw Materials: Molybdenum Ore
Quality: High Reputation Screen Size: 3-10mm / Customized
Keywords: Alluvial Gold Mining Machine Usage: Mining Separatoion
Main Products: Mining Feeder

Product Description

Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 0
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 1
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 2
Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 3
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 4
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 5
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 6

Structure and Principle

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 7
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)

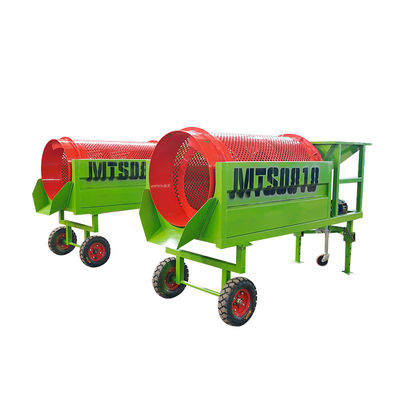

MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 8
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 9
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 10
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 11
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 12
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 13
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 14
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 15
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 16
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 17
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 18
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 19
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 20
Mining Separation Small Scale 5-10 tons Gold Ore Processing Equipment Trommel Screen 21
