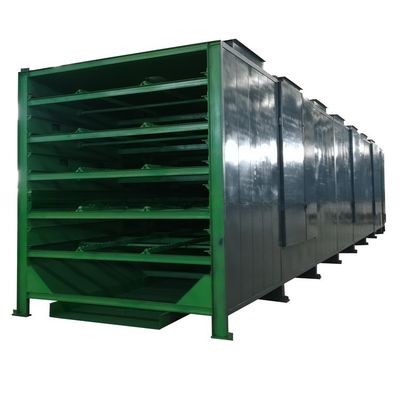

Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable

Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable

Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $6,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Type: Drying Oven Application: Machinery Industry, Dry Coal Charcoal Coke Carbon Black Iron Fluorite
Condition: New Voltage: 220V 380V 450V 600V
Power: 5.5-37kw Dimension(L*W*H): Acoording To Coal Briquette Mesh Belt Dryer Model
Key Selling Points: High Efficiency Warranty: 1 Year
Weight (KG): 14000 Applicable Industries: Energy & Mining
Showroom Location: Egypt, India, Mexico, Russia, Thailand Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Gearbox
Heating Source: Steam, Electricity, Far Infrared, Oil, Gas, Wood Pellet,coal Fuel Material: Stainless Steel, Carbon Steel, Wire Mesh, Steel Plate, Chain Plate
Length Of Dryer: 8m-36m Dryer Parts: Head, Tail, Middle Section, Motor, Reducer, Temperature Controller
After Sales Service Provided: Engineers Available To Service Machinery Overseas Dry Material Shape: Block, Briquette, Pellet, Stick, Bar, Pieces.
Function: Dry And Reduce Raw Material Moisture Color: As You Required
Key Words: Mesh Belt Dryer

Product Description

Product Description

The brief introduction of  coal briquettes chain plate dryer

The coal briquettes chain plate dryer uses electric heating, steam heating and hot air heating to heat the continuous drying of the steel mesh as a conveyor belt for continuous drying.

The coal briquettes chain plate dryer mainly transports the pressed finished ball to the flat conveyor through the conveyor. The finished ball is evenly distributed on the dryer through the scraper at the upper end of the flat conveyor to improve the permeability of the ball and achieve the drying effect.
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 0

Working principle of coal briquettes chain plate dryer

The main principle of coal briquettes chain plate dryer is to evenly spread the material on the mesh belt, and drag it by the transmission device to move back and forth in the dryer. The hot air flows through the material, and the water vapor is discharged from the drainage hole, finallyreach to the purpose of drying. The mesh belt dryer adopts 1.5-3mmsteel wire, and the length is equipped based on specified capicity.According to working site space, choose different layers to dry material.

Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 1

The features of coal briquettes chain plate dryer

1. Small space to take.

2. Low investment.

3. High efficiency.
4. Large output and high evaporation strength
5. Standardized production, the number of segments can be increased according to output and work shop.

Main technical parameter of coal briquettes chain plate dryer

Model
WD1.2-8
WD1.2-10
WD1.6-8
WD1.6-10
WD2-8
WD2-10
WD2-20
Quantity of unit
4
5
4
5
4
5
10
Width of belt(m)
1.2
1.6
2.0
Length of dry section(m)
8
10
8
10
8
10
20
Thickness of raw material(mm)
10-80
Operation temperature(oC)
5-140
Steam pressure(MPa)
0.2-0.8
Steam consumption (kg/h)
120-300
150-375
150-400
180-500
180-500
225-600
450-1200
Drying time (h)
0.2-1.2
1.25-1.5
0.2-1.2
0.25-1.5
0.2-1.2
0.25-1.5
0.5-3
Drying capacity(kg water/h)
60-160
80-200
85-220
100-260
100-260
120-300
240-600
Total power (kw)
11.4
13.6
14.6
18.7
19.7
24.5
51
Weight (kg)
4500
5600
5300
6400
6200
7500
14000
Detailed Images
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 2
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 3
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 4
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 5
Packing & Delivery
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 6
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 7
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 8
Our Service

1.Pre-sale service:

1)Sinolion will provide production line design, quotation sheet, working sites video, machinery photos, sample testing(gold ore, tin ore , iron ore, tungsten processing in laboratory).
2)Welcome to visit us at any time, we will pick you up.

2.Sale service:

1)Keep clients updated when our company gets advance payment.
2)Confirm production details with clients.
3)Take photos and send all pictures to customers during production.
4)Inspection and testing the product before delivery;
5)Clients are welcome to inspect the equipment when the equipment are ready to delivery. We will arrange cars, hotels and translators for customers.
6)logistics service if needed.

3.After Sale service:

1)Provide foundation drawing to the clients for installation.
2)Besides, our engineers are available to help with installation and workers training.
3)Repairing and maintenance if any problem occur in the warranty.
4)Spare parts and wearing parts will be offered with production cost in 10 years.

Our Company
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 9
Coal Briquettes Chain Plate Dryer with and Model According to Mesh Belt Dryer Suitable 10
FAQ

1. What kind of material can be dried by mesh belt dryer?

Answer: Nearly all kinds of lump and chips material can be dried by our mesh belt dryer such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.

2. What kind of fuel can be used with the mesh belt dryer?

Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.

3. What's the drying temperature of the mesh belt dryer?

Answer:Drying temperature of the mesh belt dryer is adjustable. It varies from 70 to 350 °C.

4. How long will the briquettes stay in the mesh belt dryer?

Answer:Normally the drying time will be about 50-120 minutes.

5. Is the belt speed adjustable?

Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
