Drum Trommel Screener for Portable Compost Charcoal Soil Firewood Rock Worms Topsoil
Product Details:
Place of Origin: | Henan |
Brand Name: | Zhengzhou Sinolion Machinery |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $4,100.00 - $28,750.00/sets |
Detail Information |
|||
Applicable Industries: | Food & Beverage Factory, Farms, Home Use, Energy & Mining, Food & Beverage Shops | Showroom Location: | United States, Italy, Philippines, Mexico, UAE, Colombia, Nigeria, Australia |
---|---|---|---|
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
Core Components: | Engine, Bearing, Gearbox, Motor, Gear | Condition: | New |
Application: | Screener | Voltage: | 220/380V |
Weight: | 650 KG | Warranty: | 1 Year |
Model: | MTS0818,MTS1022,MTS1230,MTS1550,FTS1230 | Raw Materials: | Compost, Soil, Charcoal,Firewood, |
Mesh Materials: | Manganese Steel,Steel Plate | Capacity: | 0-90 M³/h |
Color: | Blue,Red,Yellow,gray | Diameter Of Mesh Pole: | 5-50 Mm |
Logo: | Customization |
Product Description
Specifications


Brief introduction
Our products are professional in all kinds of trommel screeners, which can meet your different requirements in sieving compost, soil, topsoil, firewood, worms, rock, charcoal, food and so on.
Our products with quality inspection certificates are produced by our R& D team.
Our products can be customized as clients'requirements including logo, color, size and so on.
Our products can adjust different mesh pole diameter and mesh materials as clients'actual needs.
Our products have different dimensions with height, size of drum, size of feeding hopper.
Our products can be equipped with motor, diesel generator,gasoline generator.






Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power (KW) | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
MTS0818
This is mini trommel screener with 3.15 m long and 1.1 m wide. It is easy to move and portable to operate. This product can enjoy our preferential prices as hot selling. Those are detailed introduction below.


Advantages
The MTS0818 trommel screener is equipped with towing hook, tires, protecter, drum trommel, motor, feeding hopper and so on.
***The towing hook and tires make the machine move easily with one adult.
***The helical structure in the screen mesh makes materials move further and go out through the tail smoothly.
***The motor connected with reducer and rollers makes the material rotate fully.

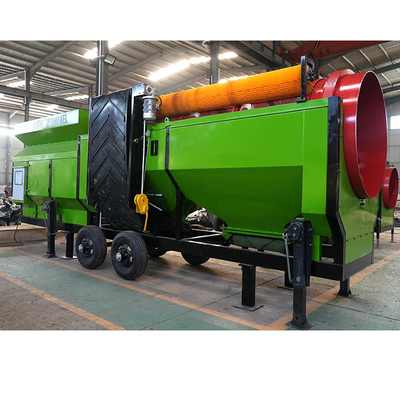

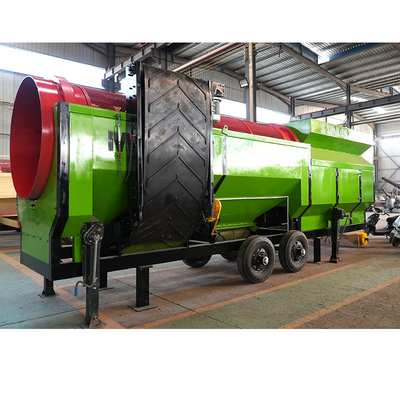

MTS1230
This trommel screeener have beautiful outlook and durable performance. This is the product with the highest repurchase rate. The side conveyor can screen materials with different diameters.

Advantages
This trommel screener consists of drum trommel, belt conveyor, feed hopper, trailer towing, machine guard, electric control cabinet, tires, brush, motor and so on.
***The belt conveyor both side is equipped and adjusted the height and angle.
***The trailer towing and tire make the machine move easily and change different working site.
***The electric control cabinet is optional to install according to your requirements.

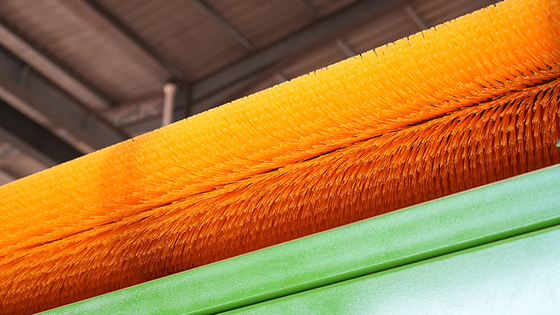

***The brush cleans the pole of mesh, which makes mesh working efficiently.
***There is a belt conveyor inside to ship the raw materials from feed hopper to drum trommel.







FTS1230
The screen mesh is different from MTS1230, and this trommel screener is chosen by firewood because of the mesh is made of angle iron bar.

Advantages
This kind of trommel screener can be used to screen the stripy raw material. It can be changed into different width of the angle iron bar.
***Stronger mesh materials ensure a long life period.
***The rolles connected with motor,reducer and V-belts makes the machine work smoothly.
***The feed hopper can be adjusted by your actual needs.

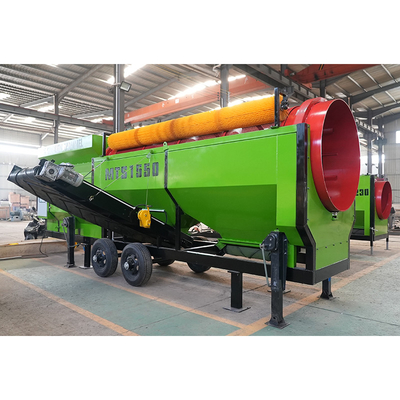

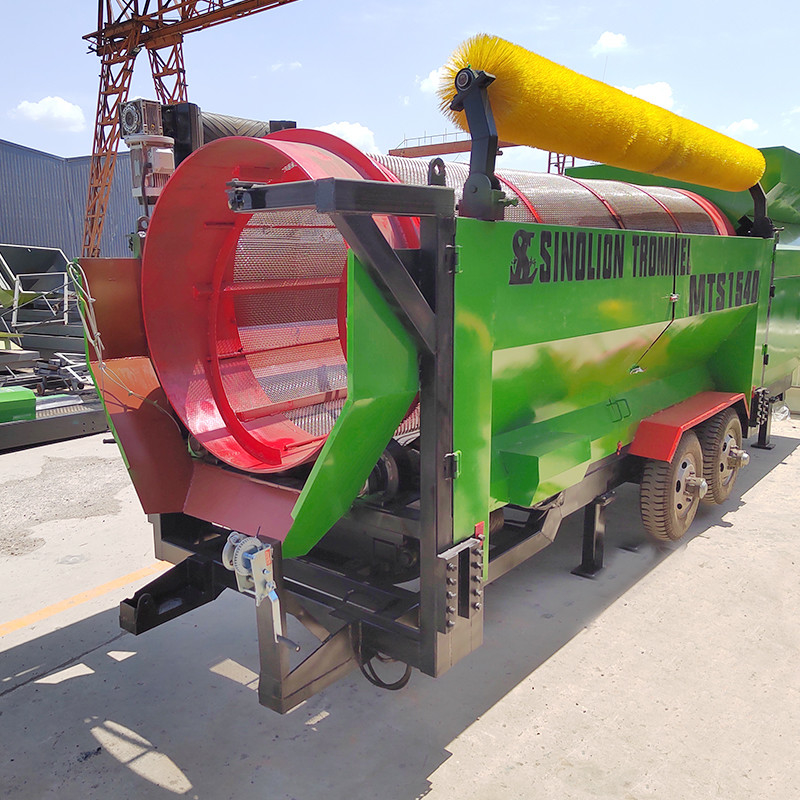

MTS1550
This larger size machine with capacity about 90 cubic meter per hour. The screen can be divided into 2 or 3 parts for different diameter materials.

More details can be referred by MTS1230.



Case




Company Profile


FAQ
Inquiry
1、What's the raw materials for screening ?
Our trommel screeners can be used to sieve compost, soil, topsoil, worms, wood, charcoal, rock, cobblestones, and other materials as client's actual requirements.
2、Can you accept customization ?
Of course ! Our customized service is including color, diameter of pole mesh, mesh metarials, and so on. Our engineer will check again for voltage, power, electric motor or diesel generator available in your actual sites.
3、 What is payment method ?
We accept T/T, paypal, and others as your actual situation.
4、How about the warrenty ?
We make sure the working of main components for one year.
5、Can you provide installation guidance ?
Yes, we will send installation manual, and provide guidance from our engineers.
