30kw PE400x600 Mobile Small Gold Ore Stone Jaw Crusher With 1400x1740x1663mm Dimensions
Product Details:
Place of Origin: | Henan, China |
Brand Name: | ZHENGZHOU Sinolion |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | $8,360.00/sets >=1 sets |
Detail Information |
|||
Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction Works , Energy & Mining, Advertising Company, Other | Showroom Location: | United States, France, Viet Nam, Peru |
---|---|---|---|
Condition: | New | Type: | Gravity Separator |
Production Capacity: | 15-60t/h, 15-60t/h | Voltage: | 380v |
Dimension(L*W*H): | 1400x1740x1663mm | Weight: | 27500 KG |
Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, Engine, Gearbox, Other |
Key Selling Points: | Easy To Operate | Application: | Gold Ore |
Color: | Customized Making | After Sale Service: | Video Technical Support |
Power: | 30kw |
Product Description
Product Description

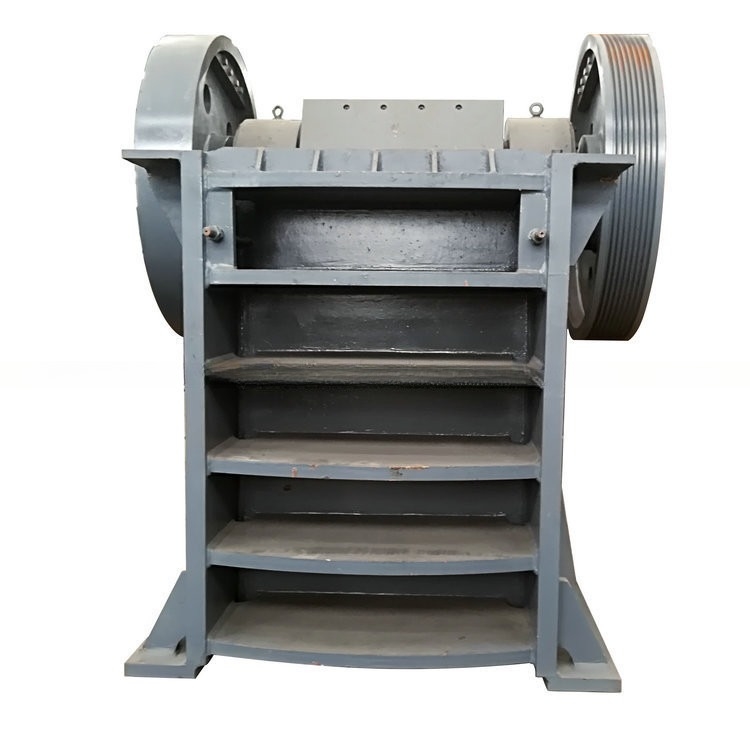

PE400*600 gold ore stone jaw crusher
The jaw crusher has the characteristics of big crushing ratio, uniform discharging size, simple structure, reliable performance, easy maintenance, and economical operating cost, etc. It is mainly used in mining, metallurgy, building material, highway, railway, water conservancy and chemical industry,etc. Crushing various material with resistance not more than 320 MPa.

Work principle

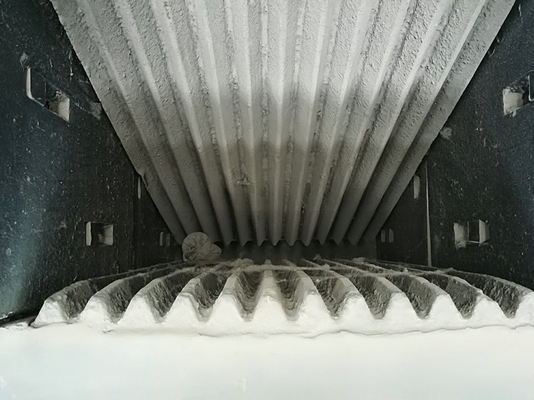

Jaw crusher is mainly divided into two series: PE and PEX. PE series is used for coarse crushing of materials, PEX series is used for initial crushing of materials, and the series is used for medium and fine crushing. Through the extrusion of the internal jaws, the large stone material is crushed into small stone material, fragments and discharged from the lower outlet. Our crusher is also equipped with a stand to facilitate discharging the material more smoothly. The wearing parts of the jaw crusher include jaw plate and side guard.
Product Details





Specification
Model
|
Max feed size(mm)
|
Discharge size(mm)
|
Capacity(T/h)
|
Power(kw)
|
Weight(T)
|
|
|
|
|
|
|
|
|
|
|
|
|
PE400×600
|
350
|
40-100
|
15-60
|
30
|
6.5
|
Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
