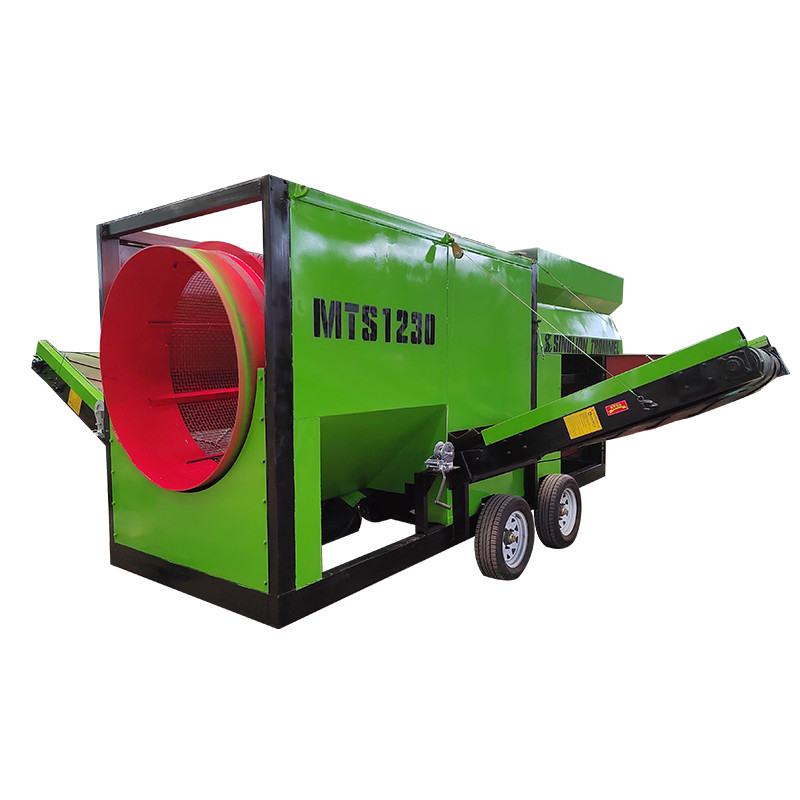

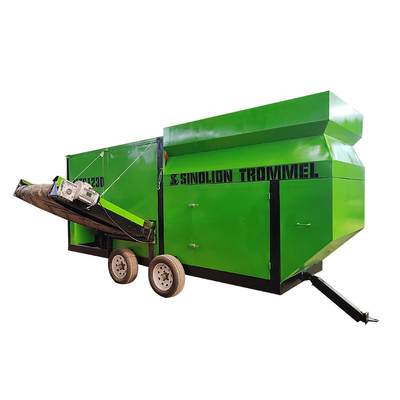

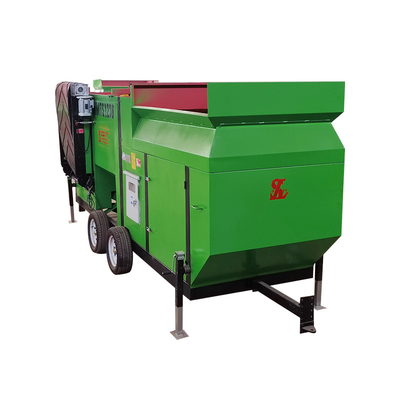

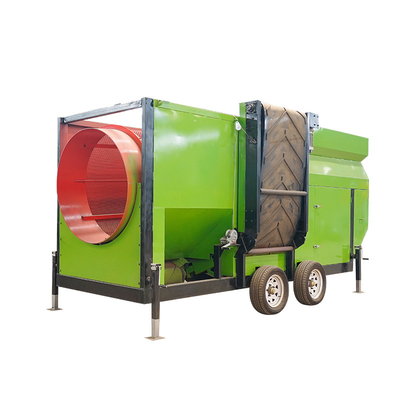

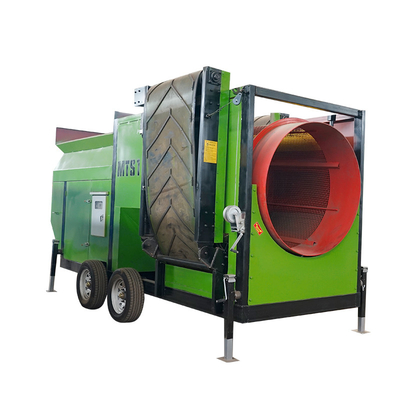

1200x2500 Compost Trommel Screener for Movable Refuse Screening in Compost Production

1200x2500 Compost Trommel Screener for Movable Refuse Screening in Compost Production

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Energy & Mining Showroom Location: United Kingdom, Mexico
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2023 Warranty Of Core Components: 2 Years
Core Components: Gearbox, Motor Condition: New
Type: Compost Trommel Screener Application: Plaster, Topsoil, Compost, Solid, Municipal Soild Waste, Glass, Mulch, Organics, Bark, MSW, Municipal Solid Waste
Voltage: 380V/415V/440V( As Client Request) Dimension(L*W*H): As Per Different Model
Weight: 2200 KG Warranty: 18 Month Excluding Spare Parts
Model: Compost Trommel Screener 1200x2500 Screen Material: Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel
Power: 3-45KW Installation: Supply Manual To Guide User
Capacity: 30-50 Tons Per Hour Feeding Size: Less Than 300mm
Discharge Size: Less Than 6mm Or As Request Color: Yellow, White, Red, Blue, Gray( Or As Client Request)

Product Description

Mobile movable trommel screener sifter factory price for topsoil compost refuse screening

Product Description



This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.



technical parameters



Model

Trommeldiameter
(mm)

Trommel length
(mm)

Capacity
(m3/h)

motor power

(KW)

Weight
(Kg)

Dimensions
(L*W*H)

MTS0818

800

1800

≤15

2.4

650

3.15*1.1*1.65

MTS1022

1000

2200

≤30

8.2

2750

4.3*1.9*2.45

MTS1230

1200

3000

≤60

10.6

3210

5.4*2.1*2.7

MTS1550

1500

5000

≤90

20

7900

9.4*2.2*2.9



1200x2500 Compost Trommel Screener for Movable Refuse Screening in Compost Production 0

The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.





» Horizontal drum delivers consistent output.



» Material rides on screening surface for extremely effective separation.

 1200x2500 Compost Trommel Screener for Movable Refuse Screening in Compost Production 1
