Product Details:

Place of Origin: China
Brand Name: Sinolion mesh belt dryer

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $120,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Type: Drying Oven Application: Coal Briquette Dryer, Briquette Dryer
Condition: New Voltage: 220-440V
Power: 5.5kw Dimension(L*W*H): Refer To The Specific Model
Key Selling Points: New Design Chain Plate Dryer Warranty: 12 Months
Weight (KG): 2000 Applicable Industries: Energy & Mining
Showroom Location: None Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Product Name: New Design Coal Briquettes Dryer Machine Factory Price Name: Coal Briquettes Dryer Machine Factory Price
Weight: 4-60T Heating Source: Steam,electricity, Gas Oil, Etc
Material: Stainless /carbon Steel Installation: Engineer's Guidance
Color: As You Required Mesh Belt Width: 0.6-2m
Mesh Belt Layer: 1-8 Layer

Product Description

New Design Coal Briquettes Dryer Machine Factory Price

Production description

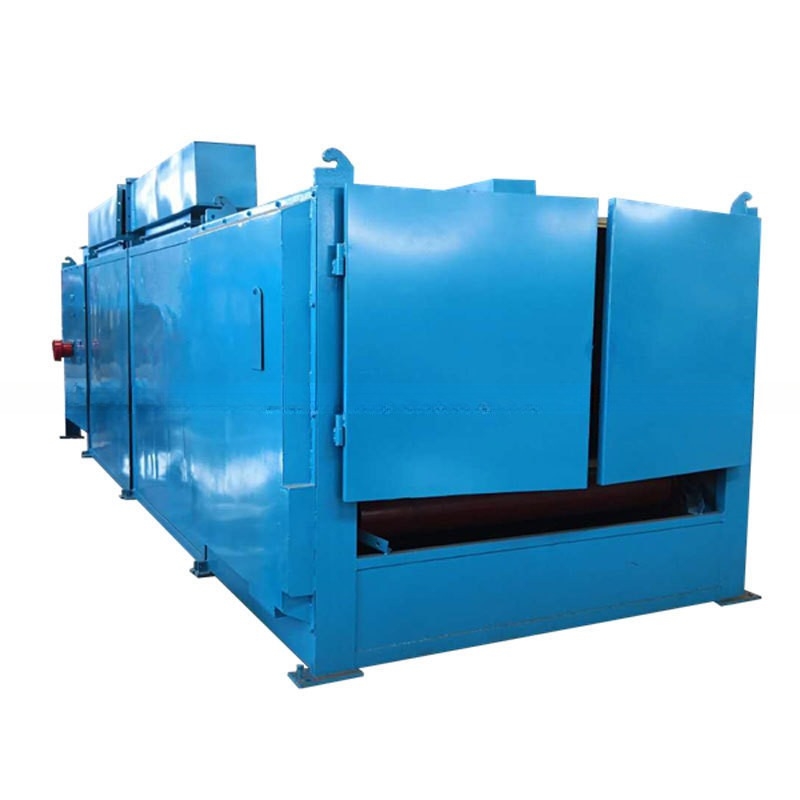

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 0



The coal briquettes dryer machine also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette coal briquettes dryer machine can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.



Working principle

Coal briquettes dryer machine main principle is the material evenly tiled on the mesh belt, is driven by the drive device in the dryer moving back and forth, hot air in materials and the cross flow, water vapour from the wet discharging hole in discharge, so as to achieve the purpose of drying. Network with 12-60 to wire mesh belt, the body length by a combination of the standard section, in order to save space, the drying mechanism into multi-layer, common has two room three and two-room five layers, length 6-40m, effective width 0.6-3.0m.

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 1

The material has the nose to enter slowly through the drying for drying, net belt line speed depending on the type of material and water content. Air flow to the use of negative pressure, porous air, to ensure the effective drying area, wind speed distribution uniformity, improve the drying effect. In order to get the best drying effect and the appropriate output, the water content of the material, the line speed of the net belt, the air volume and the air temperature must be the appropriate, reasonable and organic combination.

Technical parameters



Model DW-1.2-8 DW-1.2-10 DW-1.6-8 DW-1.6-10 DW-2-8 DW-2-10 DW-2-20
Quantity of unit 4 5 4 5 4 5 10
Width of belt(m) 1.2 1.6 2
Length of dry section(m) 8 10 8 10 8 10 20
Operation temperature(oC) 50-140
Steam pressure(MPa) 0.2-0.8
Steam consumption (kg/h) 120-300 150-375 150-400 180-500 180-500 225-600 450-1200
Drying time (h) 0.2-1.2 1.25-1.5 0.2-1.2 0.25-1.5 0.2-1.2 0.25-1.5 0.5-3
Drying capacity(kg water/h) 60-160
80-200
85-220 100-260 100-260 120-300 240-600
Total power (kw) 11.4 13.6 14.6 18.7 19.7 24.5 51

Overall size
L(m) 9.56 11.56 9.56 11.56 9.56 11.56 21.56
W(m) 1.49 1.49 1.9 1.9 2.32 2.32 2.32
H(m) 2.3 2.3 2.4 2.4 2.5 2.5 2.5





Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 2

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 3

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 4





Packaging & Shipping

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 5Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 6



Case

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 7

Company Information

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 8

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 9Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 10

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 11

Engineer's Guidance Installation Coal Briquettes Dryer Machine with Steam Heating 12

FAQ
  • What kind of material can be dried by coal briquettes dryer machine?
  • Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
  • What kind of fuel can be used with the coal briquettes dryer machine?
  • Answer: Diesel, natural gas, coal, wood chips and other kind of fuel.
  • What's the drying temperature of the coal briquettes dryer machine?
  • Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.
  • How long will the briquettes stay in the coal briquettes dryer machine?
  • Answer:Normally the drying time will be about 50-120 minutes.
  • Is the belt speed adjustable?
  • Answer: Yes, the belt speed is adjustable to make sure it can dry material with different moisture.
