Product Details:

Place of Origin: Henan, China
Brand Name: sionlion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00 - $28,750.00/sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 50 Set/Sets per Month alluvial mine trommel
Get Best Price Contact Now

Detail Information

Applicable Industries: Building Material Shops, Food & Beverage Factory, Farms, Energy & Mining Showroom Location: Canada, United States, Australia
Condition: New Type: Gravity Separator
Production Capacity: 150 Tons Per Hour Voltage: 380V
Dimension(L*W*H): 9800x3000x4000mm Weight: 8000 KG, 2.2T-18T
Warranty: 1 Year Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Pump, Gear, PLC, Other
Key Selling Points: High Rigidity Product Name: Mobile Trommel Screen
Keyword: Mobile Soil Screener Power: 5.5KW, 7.5KW, 11KW
Dimension: Depends On Model Application: Rock, Soil, River Stone, Gravel, Pebble
Installation: Supply Manual To Guide User Capacity: 30-150 Tons Per Hour
Feeding Size: Less Than 300mm Discharge Size: Less Than 6mm
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 0
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 1
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 2
Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 3
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 4
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 5

Structure and Principle

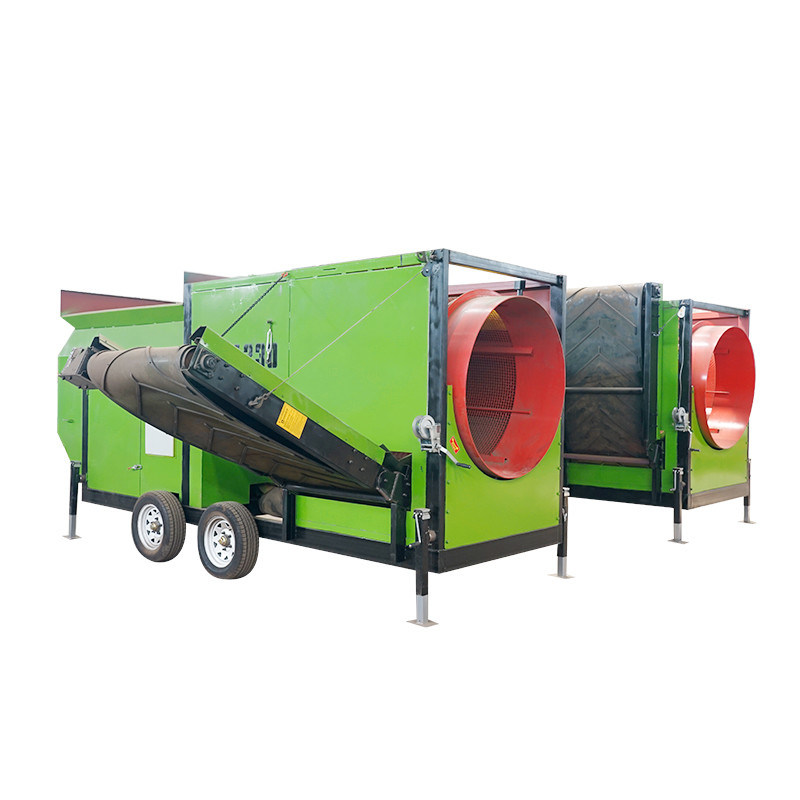

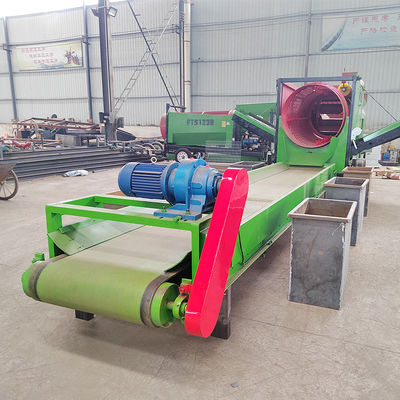

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 6
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 7
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 8
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 9
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 10
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 11
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 12
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 13
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 14
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 15
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 16
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 17
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 18
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 19
Building Material Shops Depend on Model Soil Trommel Screen with Diesel Generator Set 20
