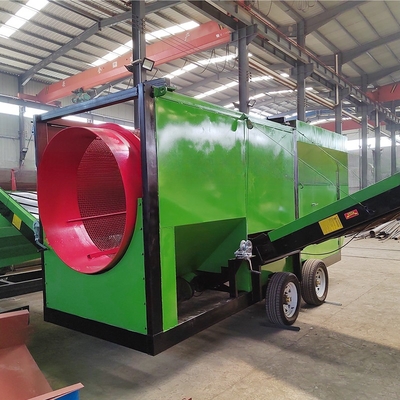

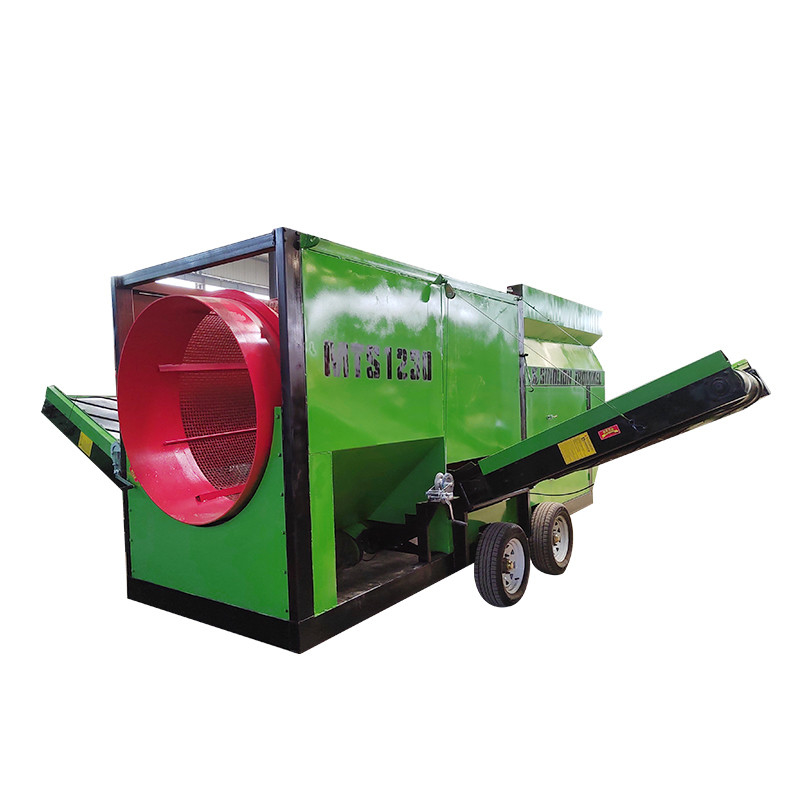

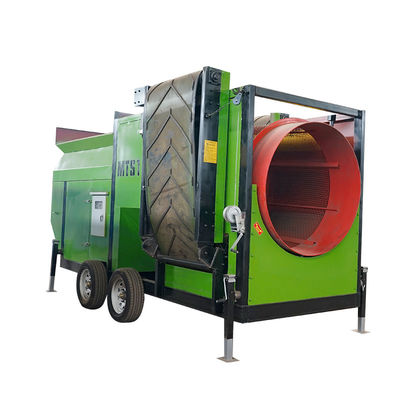

Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting

Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting

Product Details:

Place of Origin: HENAN
Brand Name: SINOLION

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00 - $28,750.00/sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Farms, Home Use, Compost Separator Showroom Location: United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia
Condition: New Type: Gravity Separator
Production Capacity: 15-90 M3/h Voltage: 220/380KW
Weight: 2900 KG Warranty: 1 Year
Marketing Type: New Product 2022 Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Gear, Engine, Gearbox, Other Key Selling Points: Easy To Operate
Application: Soil, Topsoil, Color: Blue, Red, Yellow, Green As Request
Power: As Model From 1.5-30 KW Feeding Size: As Model From 0.4-4.5 M3

Product Description

What's our products?


After the raw materials are put into the drum, under the action of gravity, the substances with small diameter enter the container through the screen hole, and the substances with large diameter are discharged from the tail of the screen drum.

Automatic rotary soil sieve ideal for grading all types of sand, soil, compost and building rubble. Meshes perfectly sifted soil for lawns, flower beds and potting sheds.

Our products are more convenient, easier to operate, and more suitable for the output of 15-90 cubic meters per hour.

The compost sifter consists of drum, frame, hopper, reducer and motor, and so on, all the parts make it work efficiently

Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 0
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 1
Why Choose Us

If you need to screen the following raw materials,like soil, compost, charcoal, it is necessary to use trommel screener machine.
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 2
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 3
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 4

Product details display for your reference.
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 5

Trailer towing : it helps the whole machine to move easily.
Machine guard: it avoids collisions and deformation.
Electric control cabinet : it regulates speed, and sets the control switches of each part at the same time.
Feed hopper: feed raw materials into hopper.
Tire: it facilitates machine movement.
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 6

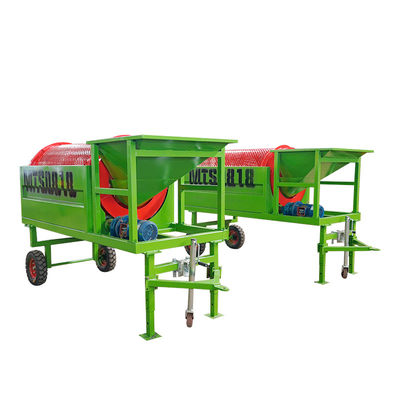

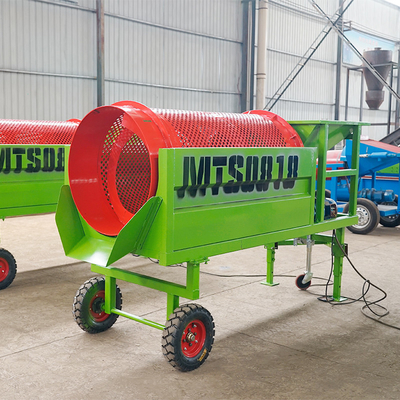

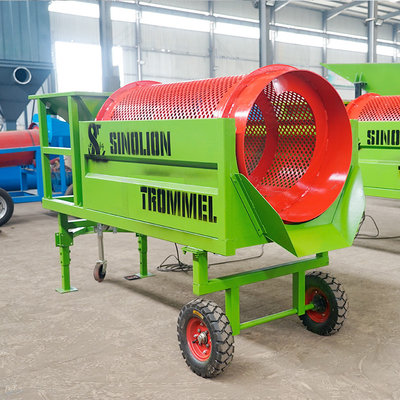

This is our mini trommel screen with smallest size.
This model is equipped with motor, feed hopper, towing hook, tires, drum trommel, and other parts.
Trailer towing : it helps the whole machine to move easily.
Feed hopper: feed raw materials into hopper.
Tire: it facilitates machine movement.


advantages
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 7

Stronger mesh

Our screens are made of punched steel plates with screen areas ranging from 3 square meters to 18 square meters.

Steel plate punching is more firm and durable.

The mesh diameter can be customized according to customer requirements.

There are strips with spiral structure inside the screen to help push the materials backward.

The design of round drum is more reasonable, convenient for operation smoothly.






Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 8

Larger product mesh
We can provide the screen made of manganese wire, with the aperture of 20 mm.
The larger the aperture, the greater the output.

This mesh is generally used on machines with products larger than 30 square meters per hour.

We provide replaceable screens at the time of delivery.







Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 9

Solider brush
Our brush is placed on the top of the screen and contacts with the screen surface to effectively clean the mesh blockage.

Each nylon hair is implanted to prevent it from falling off
The diameter of the brush is 250mm, which can meet the needs of long-term use.

The position of the brush and the screen can be fine adjusted to meet the needs of different sizes of raw materials.
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 10

Side conveyor belt
On both sides of the machine, two side conveyor belts are equipped, one in front and one behind, which can be matched with screens with two different apertures.

The height and angle of the side conveyor belt can be adjusted through the handle.

The crossed conveyor belt can effectively catch the discharge.

The width of conveyor belt ranges from 650 to 800 mm, and the length ranges from 2400 to 3500 mm.




Who choose us ?
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 11
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 12
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 13
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 14
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 15
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 16


The reasons of choosing us.


***Our customers come from many countries all over the world, and even many customers have bought our products many times.

***Our product is factory price with high quality.

***We keep the warranty for one year.

***We have professional team to provide a solution for each clients specially.


Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 17
Who are we ?
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 18
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 19
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 20
Highly Portable Automatic Trommel Screen Drum Sieve Separator for Soil Topsoil Sifting 21
FAQ

What raw materials you want to screen ?
___Our products can screen the topsoil, compost, soil ,wood, sawdust,charcoal, fertilizer and so on.

What capacity of the producing ?
___Our products of MTS 0818, MTS 1020, MTS 1230, MTS 1550 can meet the capacity of 15-90 m3/h.

Do you provide customerization ?
___It is no problem that our factory can design and make different pole of mesh , color , mesh materials , mesh size as your request.
