Product Details:

Place of Origin: China
Brand Name: sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $120,000.00/sets >=1 sets
Get Best Price Contact Now

Detail Information
Type: Drying Oven Application: Machinery Industry, Dry Coal Charcoal Coke Carbon Black Iron Fluorite
Condition: New Voltage: 220V 380V 450V 600V
Power: 1.75-8.19kw Dimension(L*W*H): Acoording To Coal Briquette Mesh Belt Dryer Model
Key Selling Points: High Efficiency Warranty: 1 Year
Weight (KG): 14000 Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: Egypt, India, Mexico, Russia, Thailand Marketing Type: New Product 2020
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Motor, Engine
Heating Source: Steam, Electricity, Far Infrared, Oil, Gas, Wood Pellet,coal Fuel Length Of Dryer: 4-12 M Box Dryer Oven
Dryer Parts: Head, Tail, Middle Section, Motor, Reducer, Temperature Controller After Sales Service Provided: Engineers Available To Service Machinery Overseas
Dry Material Shape: Block, Briquette, Pellet, Stick, Bar, Pieces. Function: Dry And Reduce Raw Material Moisture
Key Words: Oven Dryer Weight: Depend On Oven Dryer
Raw Material: Coal Briquettes, Charcoal Briquettes, Mineral Briquettes

Product Description

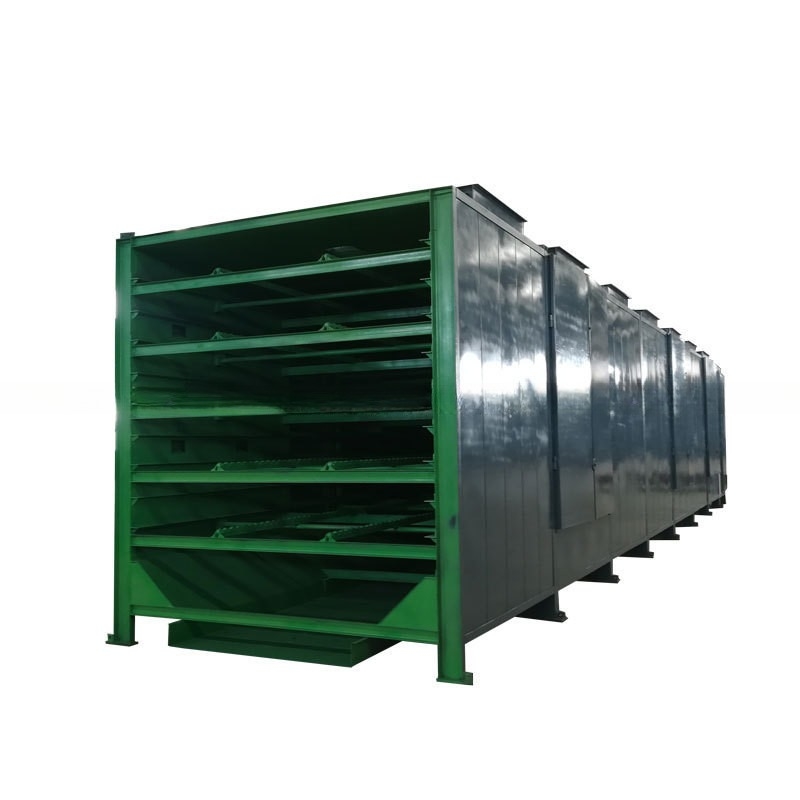

Oven dryer for charcoal briquettes

Production description

 The briquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone.  Especially it is the ideal dry equipment of various kinds of materials briquette production line.

Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 0Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 1

Features of briquette dryer mesh belt dryer machine

1. Small space to take. 2. Low investment. 3. High efficiency.
4. Large output and high evaporation strength
5. Standardized production, the number of segments can be increased according to output and work shop
Technical parameters
Model
DW-1.2-8
DW-1.2-10
DW-1.6-8
DW-1.6-10
DW-2-8
DW-2-10
DW-2-20
Quantity of unit
4
5
4
5
4
5
10
Width of belt(m)
1.2
1.6
2
Length of dry section(m)
8
10
8
10
8
10
20
Operation temperature(oC)
50-140
Steam pressure(MPa)
0.2-0.8
Steam consumption (kg/h)
120-300
150-375
150-400
180-500
180-500
225-600
450-1200
Drying time (h)
0.2-1.2
1.25-1.5
0.2-1.2
0.25-1.5
0.2-1.2
0.25-1.5
0.5-3
Drying capacity(kg water/h)
60-160
80-200
85-220
100-260
100-260
120-300
240-600
Total power (kw)
11.4
13.6
14.6
18.7
19.7
24.5
51

Overall size
L(m)
9.56
11.56
9.56
11.56
9.56
11.56
21.56
W(m)
1.49
1.49
1.9
1.9
2.32
2.32
2.32
H(m)
2.3
2.3
2.4
2.4
2.5
2.5
2.5





Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 2Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 3Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 4Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 5Large Capacity Oven Dryer for Charcoal Briquettes 14000KG 6
