The larger the aperture, the greater the output.
This mesh is generally used on machines with products larger than 30 square meters per hour.
We provide replaceable screens at the time of delivery.
 |

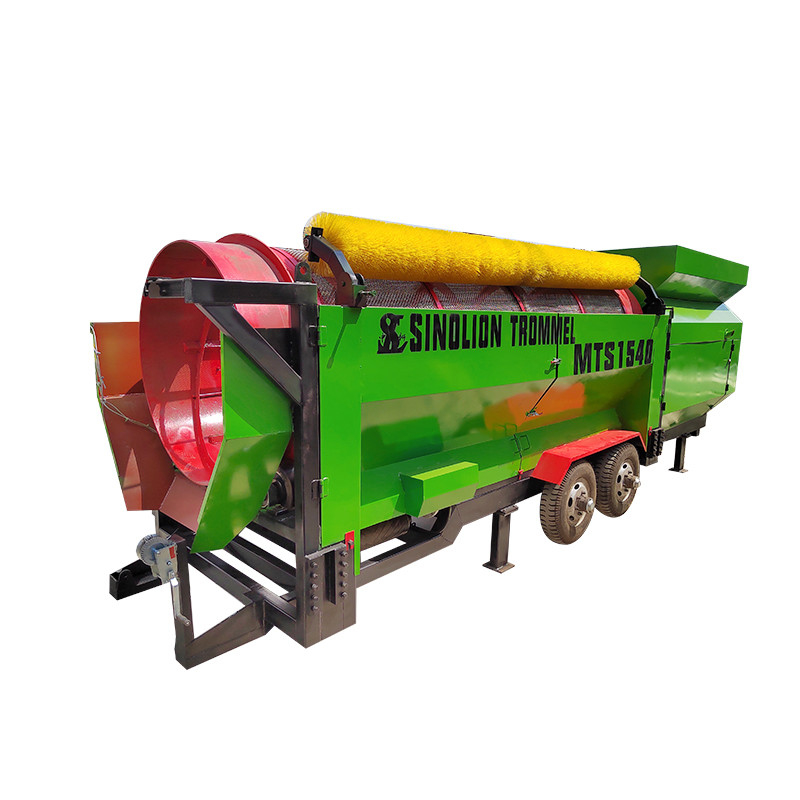

Drum Rotary Sieve Sifter for Compost Screener Topsoil Worm Fertilizer Mini Trommel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Farms, Home Use, Energy & Mining | Showroom Location: | United Kingdom, United States, Italy, UAE, Colombia, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Motor, Gear | Condition: | New |
| Type: | Gravity Separator | Voltage: | 220/380V |
| Weight: | 2900 KG | Warranty: | 1 Year |
Product Description
What's our products?
Automatic rotary soil sieve ideal for grading all types of sand, soil, compost and building rubble. Meshes perfectly sifted soil for lawns, flower beds and potting sheds.
Our products are more convenient, easier to operate, and more suitable for the output of 15-90 cubic meters per hour.
The compost sifter consists of drum, frame, hopper, reducer and motor, and so on, all the parts make it work efficiently
Why Choose Us
Our screens are made of punched steel plates with screen areas ranging from 3 square meters to 18 square meters.
Steel plate punching is more firm and durable.
The mesh diameter can be customized according to customer requirements.
There are strips with spiral structure inside the screen to help push the materials backward.
The design of round drum is more reasonable, convenient for operation smoothly.
We can provide the screen made of manganese wire, with the aperture of 20 mm.
Our brush is placed on the top of the screen and contacts with the screen surface to effectively clean the mesh blockage.
Each nylon hair is implanted to prevent it from falling off
The diameter of the brush is 250mm, which can meet the needs of long-term use.
The position of the brush and the screen can be fine adjusted to meet the needs of different sizes of raw materials.
Side conveyor belt
On both sides of the machine, two side conveyor belts are equipped, one in front and one behind, which can be matched with screens with two different apertures.
The height and angle of the side conveyor belt can be adjusted through the handle.
The crossed conveyor belt can effectively catch the discharge.
The width of conveyor belt ranges from 650 to 800 mm, and the length ranges from 2400 to 3500 mm.
Product details display for your understanding.
Trailer towing : it helps the whole machine to move easily.
Machine guard: it avoids collisions and deformation.
Electric control cabinet : it regulates speed, and sets the control switches of each part at the same time.
Feed hopper: feed raw materials into hopper.
Tire: it facilitates machine movement.

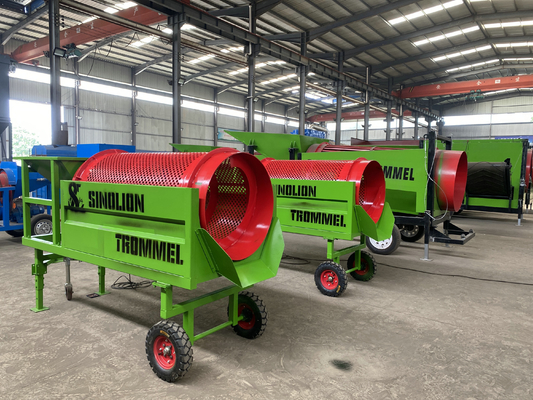

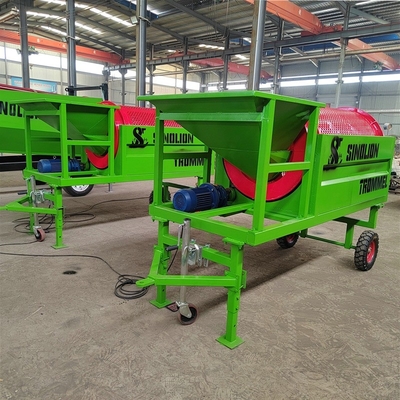

This is our mini trommel screen with smallest size.

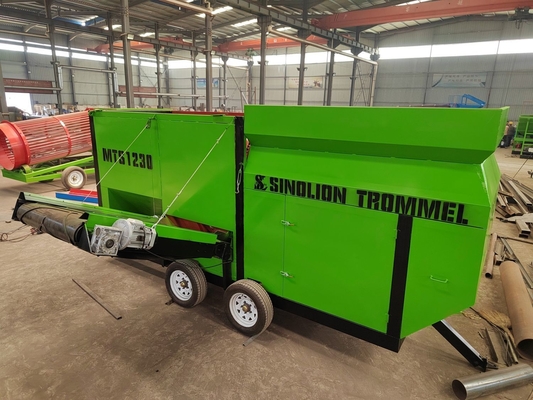

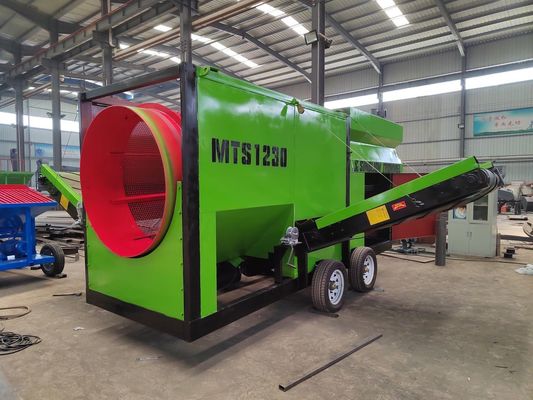

Our different model of compost sieve trommel screeners.
Model | Trommel diameter (mm) | Trommel length (mm) | Capacity (m3/h) | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 7900 | 9.4*2.2*2.9 |
Who choose us ?
The reasons of choosing us.
***Our product is factory price with high quality.
***We keep the warranty for one year.
***We have professional team to provide a solution for each clients specially.
Who are we ?
Want to Know more details about this product
