2 Meters Per Section Mesh Belt Dryer for Coal Charcoal Coke Breeze Powder Briquettes
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION mesh belt dryer |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Tray Dryer | Application: | Plastics Processing |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/450v |
| Power: | 5.5-45 | Dimension(L*W*H): | 2 Meters Per Section |
| Key Selling Points: | High-accuracy | Warranty: | One Year |
| Weight (KG): | 2000 | Applicable Industries: | Machinery Repair Shops, Other, Advertising Company |
| Showroom Location: | None | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Material: | Stainless Steel, Carbon Steel, Wire Mesh, Steel Plate, Chain Plate | Usage: | Medlar, Peony, Dogwood, Radix Rehmanniae, Lotus, Yam, Ginkgo |
| Belt Width: | 1200-3800mm | Length Of Dryer: | 8m-36m |
| Operation Temperture: | 50℃-220℃ | Steam Pressure: | 0.2-0.8Mpa |
| Steam Consumption: | 120-1200kg/h | Drying Capacity: | 60-600kg Water/hour |
| Drying Time: | 0.2-3h | After Warranty Service: | Video Technical Support |
Product Description
Stainless and carbon steel coal charcoal coke breeze powder briquettes conveyor mesh belt dryer factory price

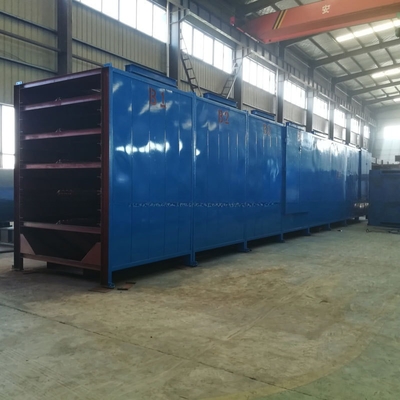

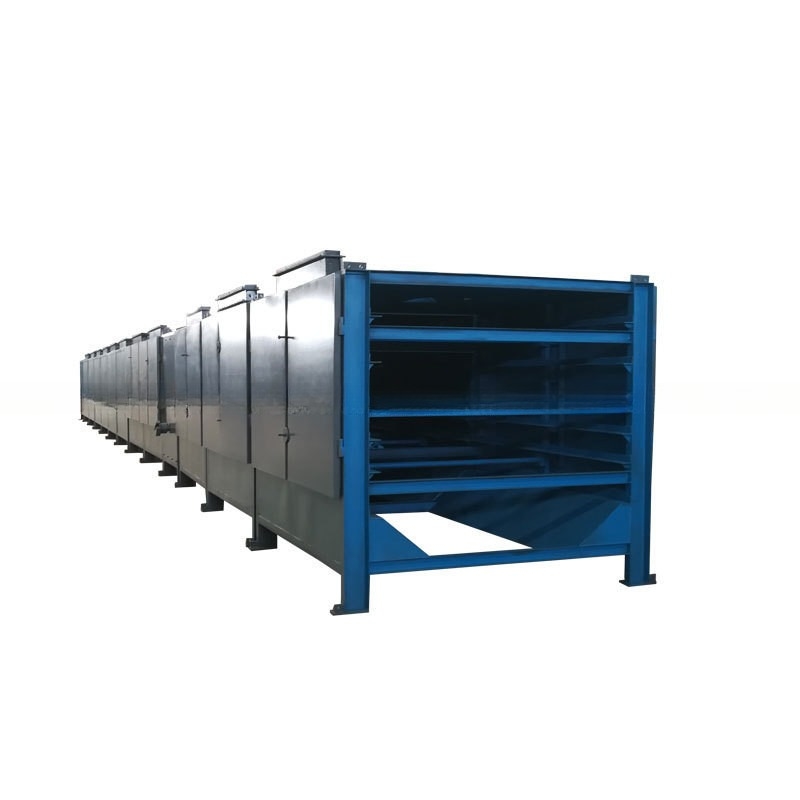

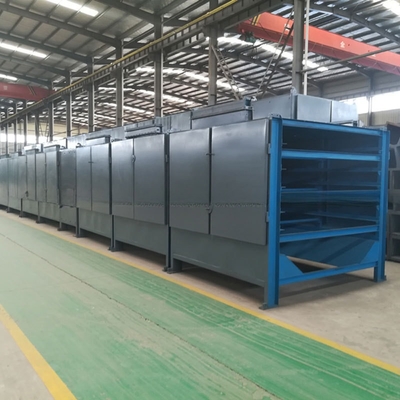

Pictures of our mesh belt dryer:
Description of Stainless and carbon steel mesh belt dryer with low factory price for coal charcoal coke powder briquettes
1. carbon steel type mesh belt dryer for coal ,charcoal and other material briquettes
2. stainless steel type mesh belt dryer for food, like fruits, vegetable and sea food ect.
The charcoal briquettes mesh belt dryer also called as belt dryer, mesh belt dryer, conveyor dryer . The mesh belt dryer can be usedin drying the material like charcoal briquettes, coal briquettes, mineral powder briquettes, fertilizer briquettes and so on. All the wet briquettes which are in a certain shape and you do not want to
damage the shapes during drying, this belt dryer is your best choice!
You need to build a furnace in your place, then heat wood or coal as power, when the wood or
coal burning, it will produce hot air. The mesh belt dryer have a draught fan, it will draw on the hot
air go though the mesh belt dryer. In the top of the mesh belt dryer, it has a in-put door, you can put the
briquettes, then the briquettes will down to the belt. This mesh belt dryer also have a driving motor, the
speed of the driving motor is adjustable, you can control the speed of the belt.
Main principle of Stainless and carbon steel mesh belt dryer with low factory price for coal charcoal coke powder briquettes
Briquette mesh belt dryer is a continuous and batch equipment and which the 2 -5 mesh belts heated by hot air. The main principle is to spread the materials on the belt and driven by the transmission device, which makes the materials on the belt driving uniform. Hot air flows across the materials and the water vapor out from the exhaust pipe to achieve the drying purpose.

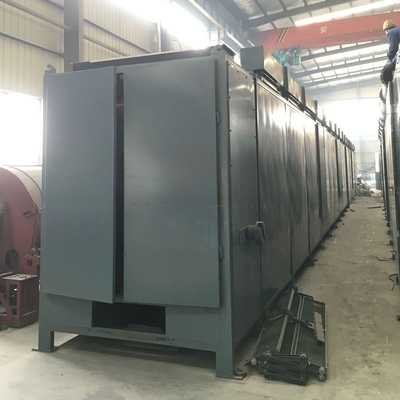

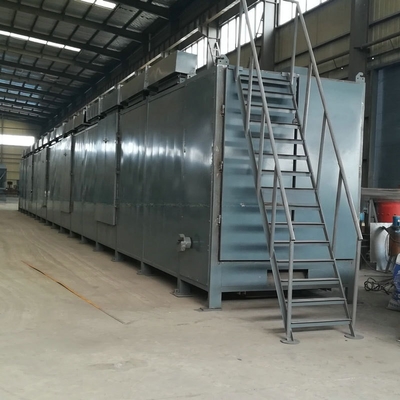

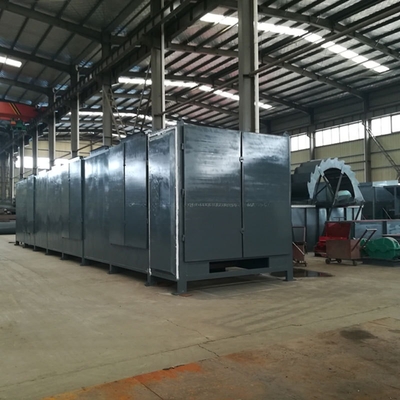

Mesh belt dryer working picture
Stainless and carbon steel mesh belt dryer with low factory price for coal charcoal coke powder briquettes Features
1. Small space to take. 2. Low investment. 3. High efficiency. 4. Large output and high evaporation strength 5. Standardized production, the number of segments can be increased according to the output.
Picture of mesh belt making of mesh belt dryer
Stainless and carbon steel mesh belt dryer with low factory price for coal charcoal coke powder briquettes Main technical parameter
| Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
| Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
| Width of belt(m) | 1.2 | 1.6 | 2 | |||||
| Length of dry section(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | |
| Thickness of raw material spreading(mm) | 10-80 | |||||||
| Operation temperature(oC) | 50-140 | |||||||
| Steam pressure(MPa) | 0.2-0.8 | |||||||
| Steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | |
| Drying time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | |
| Drying capacity | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | |
| Total power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | |
| | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 |
| W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 | |
| H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | |
| Weight (kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 | |
1. What kind of material can be dried by mesh belt dryer?
Answer: Nearly all kinds of lump and chips material can be dried by our mesh belt dryer such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2. What kind of fuel can be used with the mesh belt dryer?
Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3. What's the drying temperature of the mesh belt dryer?
Answer:Drying temperature of the mesh belt dryer is adjustable. It varies from 70 to 350 °C.
4. How long will the briquettes stay in the mesh belt dryer?
Answer:Normally the drying time will be about 50-120 minutes.
5. Is the belt speed adjustable?
Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
Why us?
1.Pre-sale service:
2)Welcome to visit us at any time, we will pick you up.
2.Sale service:
1)Keep clients updated when our company gets advance payment.
2)Confirm production details with clients.
3)Take photos and send all pictures to customers during production.
4)Inspection and testing the product before delivery;
5)Clients are welcome to inspect the equipment when the equipment are ready to delivery. We will arrange cars, hotels and translators for customers.
6)logistics service if needed.
3.After Sale service:
1)Provide foundation drawing to the clients for installation.
2)Besides, our engineers are available to help with installation and workers training.
3)Repairing and maintenance if any problem occur in the warranty.
4)Spare parts and wearing parts will be offered with production cost in 10 years.
