Steam Pressure 0.2-0.8Mpa Conveyor Mesh Belt Dryer for Charcoal Coal Mineral Briquettes
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Drying Oven | Application: | BRIQUETTES PROCESSING |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/450v |
| Power: | 5.5-45 | Dimension(L*W*H): | 2 Meters Per Section |
| Key Selling Points: | Automatic | Warranty: | One Year |
| Weight (KG): | 1000 | Applicable Industries: | Manufacturing Plant, Energy & Mining |
| Showroom Location: | None | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Gear, Motor, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Material: | Industrial Stainless Steel, Carbon Steel |
| Installation: | Engineer's Guidance | Belt Width: | 1200-3800mm |
| Length Of Dryer: | 8m-36m | Operation Temperture: | 50℃-220℃ |
| Steam Pressure: | 0.2-0.8Mpa | Steam Consumption: | 120-1200kg/h |
| Drying Capacity: | 60-600kg Water/hour | Product Name: | Mesh Belt Dryer |
Product Description
New design best sell conveyor mesh belt dryer machine for charcoal coal mineral briquettes use mesh belt or chain plate
New design best sell conveyor mesh belt dryer machine for charcoal coal mineral briquettes use mesh belt or chain plate
Description of briquette conveyor mesh belt dryer machine
1. carbon steel type for briquettes
2. stainless steel type for food, like fruits, vegetable and sea food ect.
The conveyor mesh belt dryer plant is also called as belt dryer, mesh belt dryer, conveyor dryer, The conveyor mesh belt dryer machine can be used in drying the material like charcoal briquettes, coal briquettes mineral powder briquettes , fertilizer briquettes and so on. All the wet briquettes which are in a certain shape and you do not want to
damage the shapes during drying, thisconveyor mesh belt dryer machine is your best choice!
You need to build a furnace in your place, then heat wood or coal as power, when the wood or
coal burning, it will produce hot air. The mesh belt dryer have a draught fan, it will draw on the hot
air go though the dryer. In the top of the mesh belt dryer, it has a in-put door, you can put the coal
briquettes, then the coal briquettes will down to the belt. This mesh belt dryer also have a driving motor, the
speed of the driving motor is adjustable, you can control the speed of the belt.
Main principle of briquette conveyor mesh belt dryer machine
Conveyor mesh belt dryer machine is a continuous and batch equipment and which the 2 -5 mesh belts heated by hot air. The main principle is to spread the materials on the belt and driven by the transmission device, which makes the materials on the belt driving uniform. Hot air flows across the materials and the water vapor out from the exhaust pipe to achieve the drying purpose.
Feature of briquette conveyor mesh belt dryer
1. Small space to take. 2. Low investment. 3. High efficiency. 4. Large output and high evaporation strength 5. Standardized production, the number of segments can be increased according to the output.
Main technical parameter of briquette conveyor mesh belt dryer machine
| Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
| Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
| Width of belt(m) | 1.2 | 1.6 | 2 | |||||
| Length of dry section(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | |
| Thickness of raw material spreading(mm) | 10-80 | |||||||
| Operation temperature(oC) | 50-140 | |||||||
| Steam pressure(MPa) | 0.2-0.8 | |||||||
| Steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | |
| Drying time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | |
| Drying capacity | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | |
| Total power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | |
| | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 |
| W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 | |
| H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | |
| Weight (kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 | |

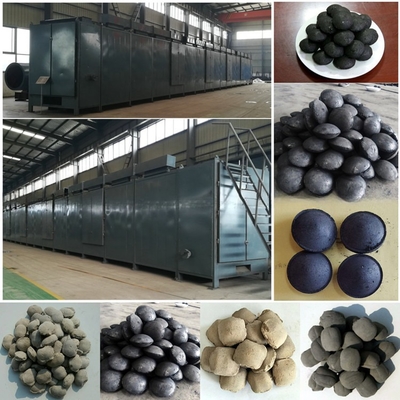

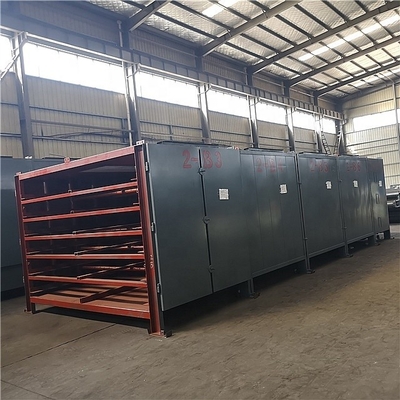

Some customers' mesh belt dryer working site.
1.What kind of material can be dried by conveyor mesh belt dryer machine?
Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2.What kind of fuel can be used with the conveyor mesh belt dryer machine?
Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3.What's the drying temperature of the conveyor mesh belt dryer machine?
Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.
4.How long will the briquettes stay in the conveyor mesh belt dryer machine?
Answer:Normally the drying time will be about 50-120 minutes.
5.Is the belt speed adjustable?
Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
Why us?
1.Pre-sale service:
2)Welcome to visit us at any time, we will pick you up.
2.Sale service:
1)Keep clients updated when our company gets advance payment.
2)Confirm production details with clients.
3)Take photos and send all pictures to customers during production.
4)Inspection and testing the product before delivery;
5)Clients are welcome to inspect the equipment when the equipment are ready to delivery. We will arrange cars, hotels and translators for customers.
6)logistics service if needed.
3.After Sale service:
1)Provide foundation drawing to the clients for installation.
2)Besides, our engineers are available to help with installation and workers training.
3)Repairing and maintenance if any problem occur in the warranty.
4)Spare parts and wearing parts will be offered with production cost in 10 years.
