Ore Drum Sieve for Rotary Malt Wood Sawdust Fertilizer Stone Soil Wastewater Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | 3.15*1.1*1.65m |
| Weight: | 520 KG | Warranty: | 1 Year |
| Keyword: | Small Drum Sieve | Screen Material: | Wood Sawdust Fertilizer Stone Soil Wastewater |
| Dimension: | 3.15*1.1*1.65m | Installation: | Supply Manual To Guide User |
| Capacity: | ≤15m³/h | Feeding Size: | Less Than 300mm |
| Discharge Size: | 2mm-80mm | Color: | Green Or As Client Request |
| After-sales Service Provided: | Field Installation, Commissioning And Training | ||
Product Description
small industrial rotating drum sieve for rotary malt wood sawdust fertilizer stone soil wastewater drum sieve treatment

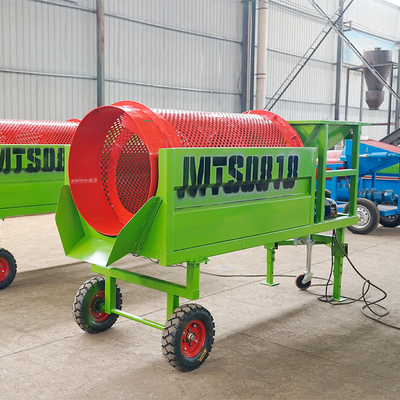

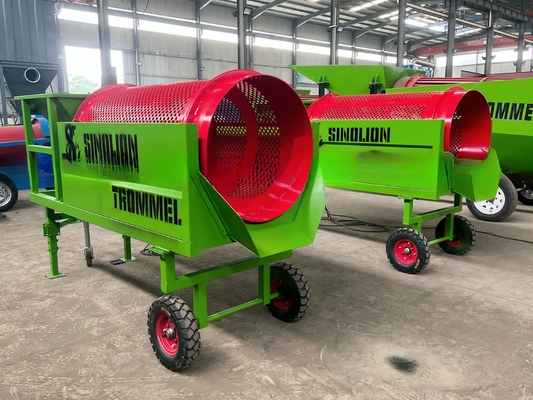

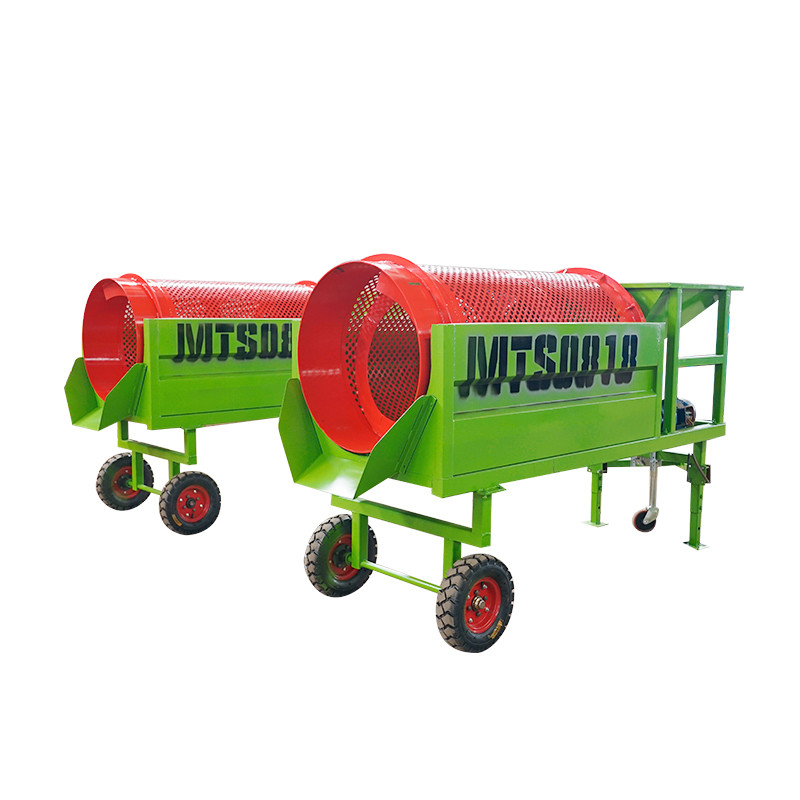

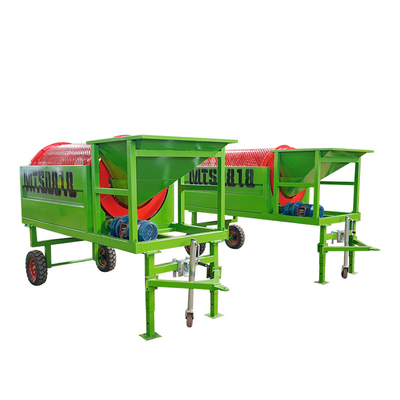

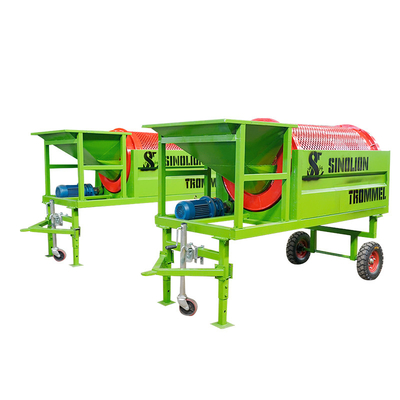

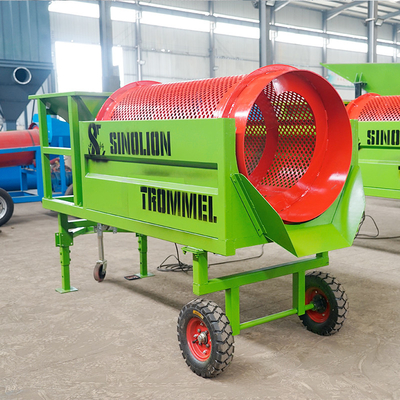

Like all treatments in the MTS series, the MTS0818 compost rotary trommel screen treatment
not picky about sifting out waste and raw materials regards. lt is equally suitable for compost, soi, wood, biomass, sand and gravel etc.
Screening materials: earth, sand, gravel, compost,wood chips, construction waste, recycling material,slag, crushed stane and stone in grain sizes from 2mm to 80mm
The MTS0818 compost roller trommel screen treatment is one of the smallest trommel screens in our factory. It can also be used to screen compost, wood or cow, sheep manure, etc.
It including a 2.2kw electric type,screen area is 3m2,processing capacity is also 15m³/h per hour,product size is 3150*1100*1650mm.
The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size.The screened material can also be transported out by the side belt conveyor.
| Model | MTS0818 | ||
| Process material | compost, soil, top soil, wood or cow, sheep manure wood shipps, sawdust etc | ||
| Screen capacity | ≤15m³ | Total power | 2.4kw |
| Roller Diameter | 800mm | Drum length | 1800mm |
| Hopper Capacity | 0.4m³ | Weight | 520KG |
| | |
