Small Slag/Coal/Slime/Sludge/Sawdust Conveyor Mesh Belt Dryer for Building Material Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SINOLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel box, depends on machine weight. <br>Motor is packed with steel box or wooden box. <b |
| Supply Ability: | 40 Set/Sets per Month box dryer |
|
Detail Information |
|||
| Type: | Drying Oven | Application: | Chemicals Processing, Plastics Processing, Food Processing, Dry Coal Charcoal Coke Carbon Black Briquettes Or Ball |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/450v |
| Power: | 5.5-45 | Dimension(L*W*H): | 2 Meters Per Section |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
| Weight (KG): | 1620 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | India, Russia, Thailand, Kenya, South Korea, Sri Lanka, South Africa, Ukraine | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gear, Motor, Gearbox, Engine |
| Product Name: | Small Slag/Coal/Slime/Sludge /Sawdust Conveyor Mesh Belt Dryer | Keywords: | Conveyor Mesh Belt Dryer |
| Material: | Stainless Steel, Carbon Steel Mesh Belt Or Chain Plate | Installation: | Engineer's Guidance |
| Application 2: | Fruits, Vegetables, Herbs And Food Etc | Steam Consumption: | 120-1200kg/h |
| Drying Capacity: | 60-600kg Water/hour | Drying Time: | 0.2-3h |
| Port: | Qingdao Shanghai Tianjin, Lianyungang,Guangzhou | ||
Product Description

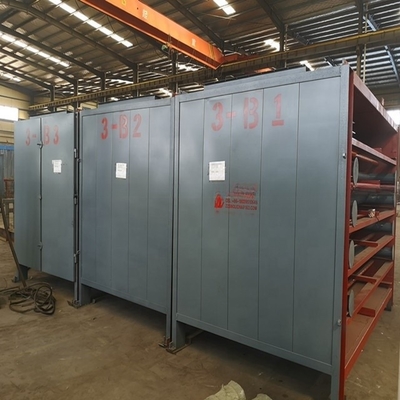

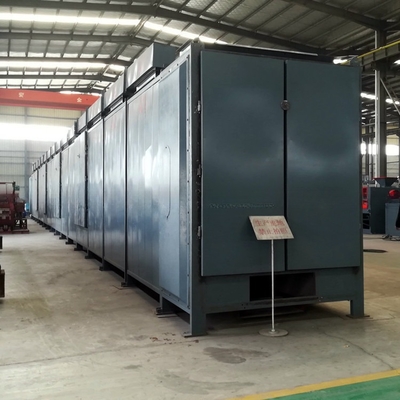

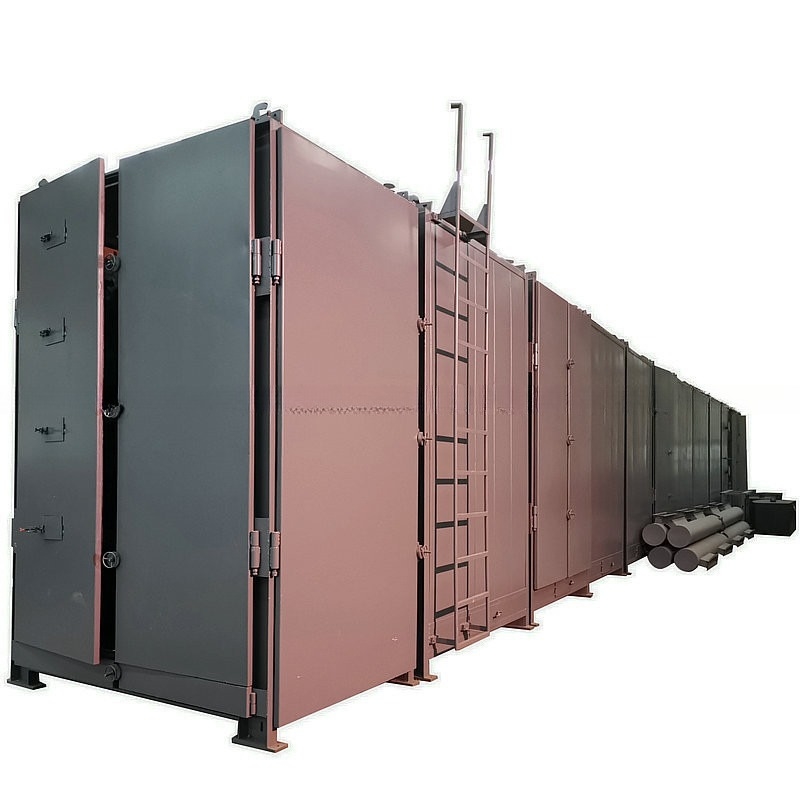

Small Slag/Coal/Slime/Sludge /Sawdust Conveyor Mesh Belt Dryer
The riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.
Working principle

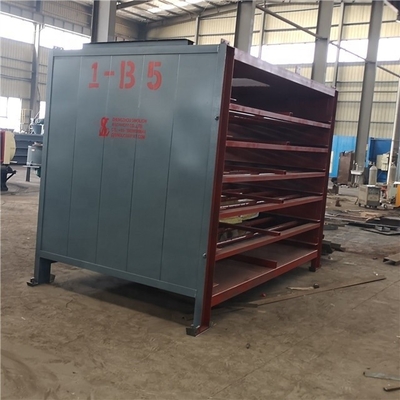

Mesh belt type drying machine main principle is the material evenly tiled on the mesh belt, is driven by the drive device in the dryer moving back and forth, hot air in materials and the cross flow, water vapour from the wet discharging hole in discharge, so as to achieve the purpose of drying. Network with 12-60 to wire mesh belt, the body length by a combination of the standard section, in order to save space, the drying mechanism into multi-layer, common has two room three and two-room five layers, length 6-40m, effective width 0.6-3.0m.
The material has the nose to enter slowly through the drying for drying, net belt line speed depending on the type of material and water content. Air flow to the use of negative pressure, porous air, to ensure the effective drying area, wind speed distribution uniformity, improve the drying effect. In order to get the best drying effect and the appropriate output, the water content of the material, the line speed of the net belt, the air volume and the air temperature must be the appropriate, reasonable and organic combination.
| Model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
| Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
| Width of belt(m) | 1.2 | 1.6 | 2 | |||||
| Length of dry section(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | |
| Operation temperature(oC) | 50-140 | |||||||
| Steam pressure(MPa) | 0.2-0.8 | |||||||
| Steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | |
| Drying time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | |
| Drying capacity(kg water/h) | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | |
| Total power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | |
Overall size | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 |
| W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 | |
| H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | |
- What kind of material can be dried by mesh belt dryer?
- Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
- What kind of fuel can be used with the mesh belt dryer?
- Answer: Diesel, natural gas, coal, wood chips and other kind of fuel.
- What's the drying temperature of the mesh belt dryer?
- Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.
- How long will the briquettes stay in the mesh belt dryer?
- Answer:Normally the drying time will be about 50-120 minutes.
- Is the belt speed adjustable?
- Answer: Yes, the belt speed is adjustable to make sure it can dry material with different moisture.
