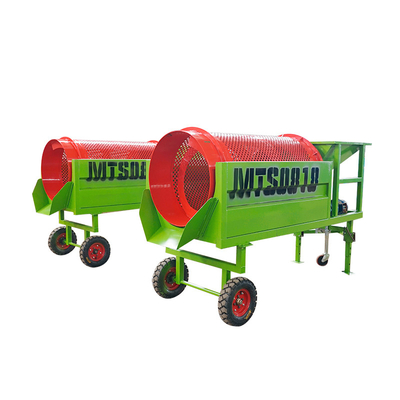

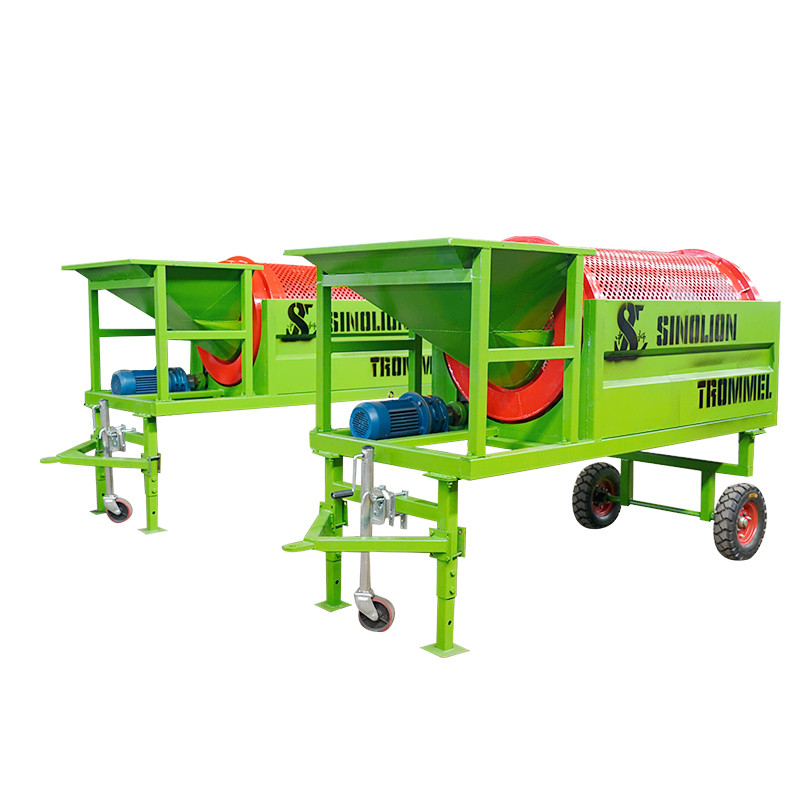

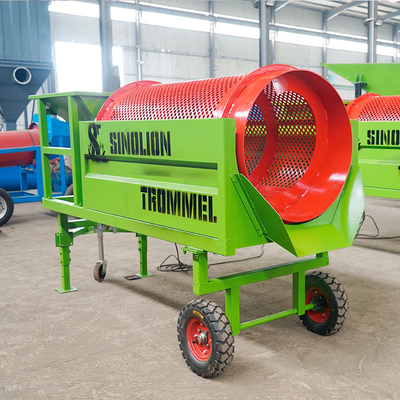

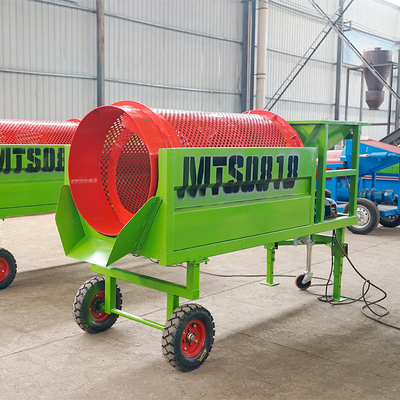

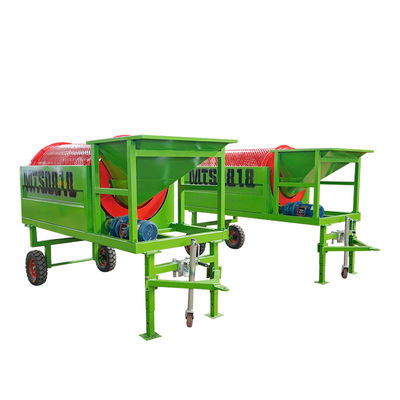

15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production

15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production

Product Details:

Place of Origin: Henan, China
Brand Name: Sinolion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $2,650.00/sets >=1 sets
Packaging Details: All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case, depends on machine weight. <br>Motor is packed with steel case or wooden case.
Supply Ability: 100 Set/Sets per Quarter
Get Best Price Contact Now

Detail Information
Applicable Industries: Farms, Home Use, Energy & Mining Showroom Location: Canada, United States, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2022 Warranty Of Core Components: 1 Year
Core Components: Motor, PLC, Gearbox, Motor Condition: New
Type: Gravity Separator, Compost Trommel Screener Application: Sawdust, Firewood, Topsoil, Compost, Solid, Municipal Soild Waste
Voltage: 110V--440V( As Client Request) Dimension(L*W*H): 3150*1100*1650mm
Weight: 520 KG Warranty: 1 Year
Product Name: Mobile Compost Trommel Screen Capacity: 15 M3/h
Drum Length: 1800mm Drum Diameter: 800mm
Trommel Power: 2.2KW Advantage: Portable, High Efficiency
Dimension: 3150*1100*1650mm Feeding Size: Less Than 300mm
Port: Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request)

Product Description

15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 0
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 1
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 2
Best Price Rotary Topsoil Soil Sifting Equipment Mobile Topsoil Trommel Screen
This mobile compost trommel screen is made of high quality materials. Designed for high performance, high productivity, low operating costs and low maintenance. The topsoil is classified after entering the drum, and the larger material flows forward along the inclined direction of the drum, and gradually passes through different screens for classification. The graded small materials fall into their respective silos, and are sent to finished product stacking by manpower or belt conveyors. This mobile compost trommel screen can neatly screen e.g. compost, soil, sand, slag, gravel, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. This Mobile topsoil rotary drum screen is used not only for earth processing, but also for more specific fields of application, such as the extraction of recyclable parts of plastics, soils and wood chips and the processing of composting, grinding materials, construction rubble, stone, gravel , and glass is even recycling sandbags.
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 3
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 4

Structure and Principle

The basic working principle of the trommel screen: the material is poured into the hopper, and transported to the trommel screen by the conveyor on the hopper, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 5
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 6
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 7
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 8
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 9
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 10
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 11
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 12
15 m3/h Capacity Compost Drum Sieve Trommel Screen for Organic Fertilizer Production 13
