High Recovery Rate Farmer Seperator Mobile Drum Trommel Screener for Soil Topsoil Compost
Product Details:
| Place of Origin: | HEN |
| Brand Name: | zhengzhou sinlolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $15,900.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Farms, Home Use, Energy & Mining | Showroom Location: | Germany, Pakistan, Kenya, Chile, Colombia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Gearbox, Pump | Condition: | New |
| Type: | Rotary Type | Application: | Farmer Seperator |
| Voltage: | Optional | Dimension(L*W*H): | Optional |
| Weight: | 3000 KG | Warranty: | 1 Year |
Product Description
Product introdution
Model MTS1230

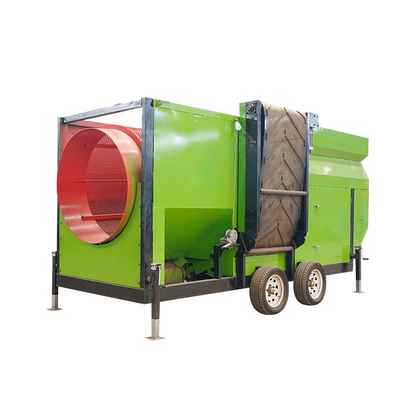

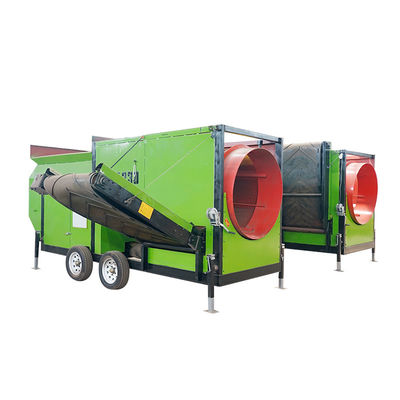

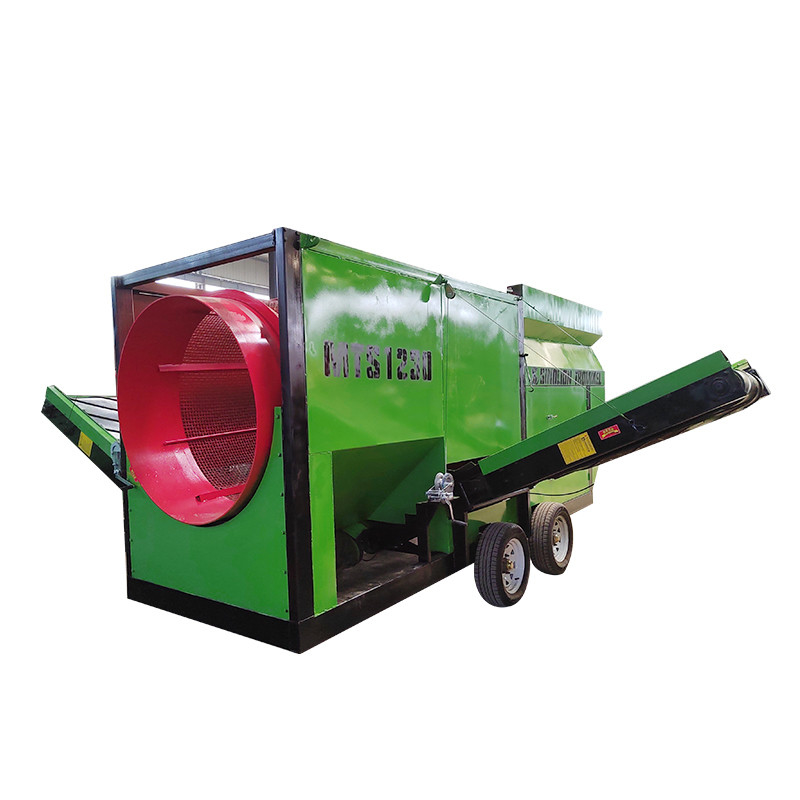

Our hot selling product model MTS1230, is used to screen sand , topsoil, compost , fertilizer, ore and so on. It is with 2 side conveyor, 4 tyres, trommel diameter is 1200 mm and length is 3000 mm. It is efficient with capacity ≤60 m3/h. Raw meterial is conveyed to drum by conveyor belt inside. Rotary drum makes materials screen by gravity and output into side conveyor , and the tail.
size : 2.35*1.6*0.88m ,
volume of feed hopper : 2 m3,
conveyor inside : B500*1800, 2.2 kw
material of mesh available
we can provide steel material for screen drum , which is firm and durable . Pole diameter is 20 mm or as request.
material of mesh available
we can provide woven material for screen drum , which have more poles and higher efficiency.Pole diameter is 20 mm or as request.
material : nylon
Each is planted the pipe to ensure durability.
diameter : 250 mm
Herringbone belt is rolling to work
with B650*2400 mm
There are two pieces, one is on the left, the other is on the right.
We provide meter box for client to operate easier.
Installing situation
Install machines situation to shipping. One machine need 20 GP

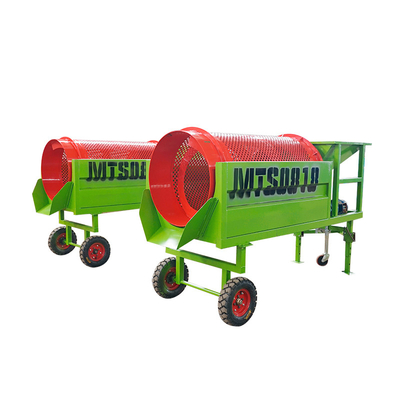

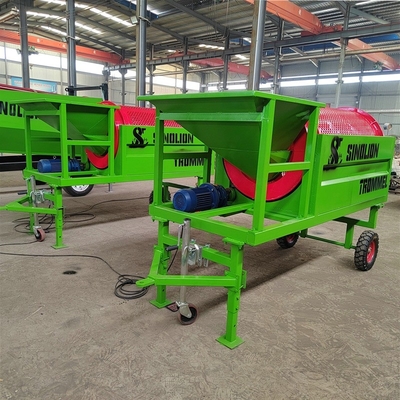

This is mini trommel screener for screen sand , topsoil, compost , fertilizer, ore and so on with capacity ≤15 m3/h. trommel diameter is 800 mm and length is 1800 mm. It is flexible, lightweight to move and use. The material can be out by the trail.
At present, this product is relatively rare in the Chinese market.
This product is favored by many customers.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
Regular clients cases
Some photos show classic cases from other clients. Our product was sold to Australia, New Zealand, the United States, Canada and many other countries.
Our factory introduction
Our advantages
1 We are the source factory, provide factory price
2 Our team has more than 10 years of working experience.
3 We can provide one-stop production chain procurement service
Want to Know more details about this product
