Professional Mobile Rotary Screen Equipment for Energy Mining 3-45KW Exporter
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $15,900.00/sets >=1 sets |
| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is pack |
| Supply Ability: | 45 Set/Sets per Month rotory compost drum |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Brazil, Thailand, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Motor | Condition: | New |
| Type: | Compost Trommel Screen | Application: | Fertilizer, Manure, Compost, Compost, Food Waste, Glass, Mulch, Organics, Topsoil, Bark, MSW |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 2 Years |
| Product Name: | Compost Sifter Compost Trommel Screen From China Manufacturer | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power: | 3-45KW | Dimension: | Depends On Different Model |
| Installation: | Supply Manual To Guide User | Capacity: | 30-50 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description
Top Quality Mobile Rotary Screen Equipment /Trommel Screen Manufacturer

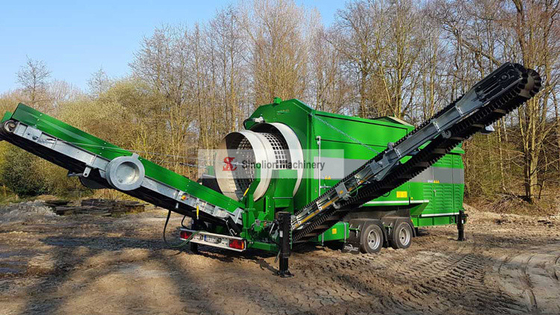

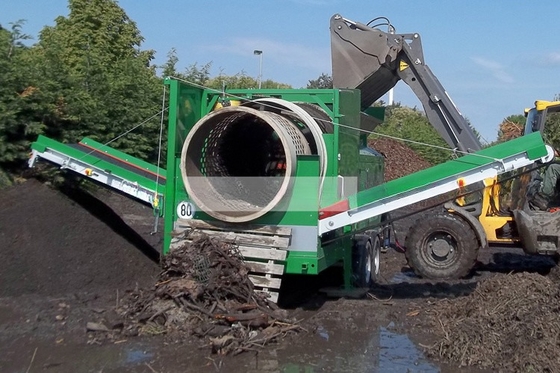

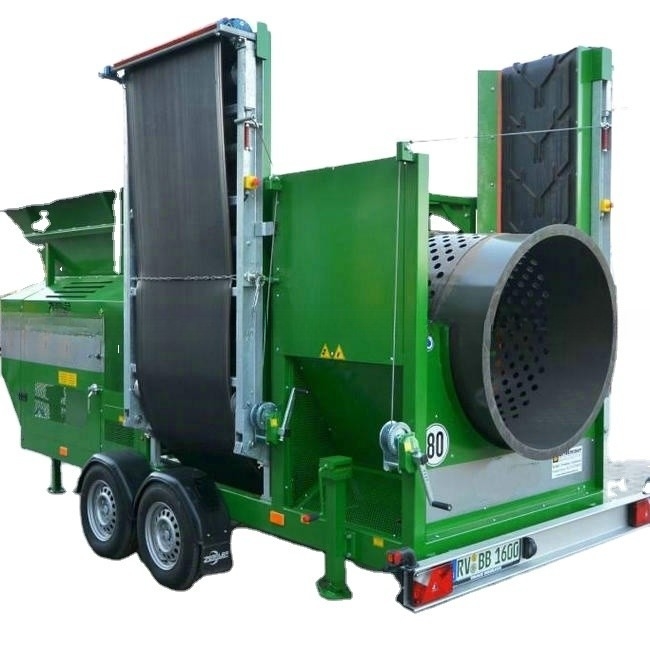

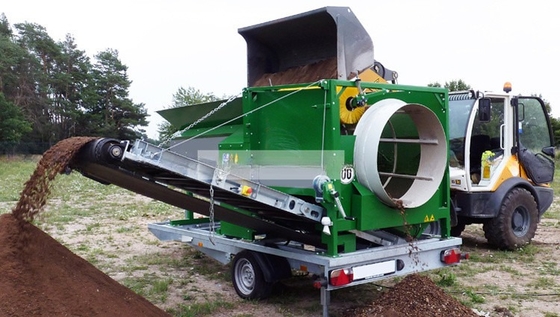

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening, landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

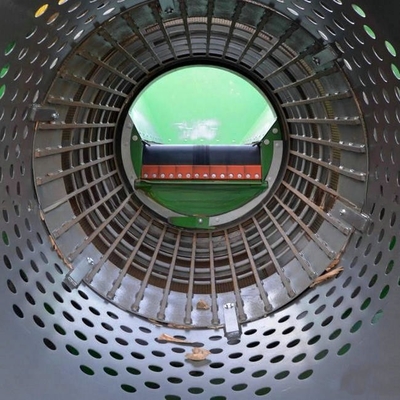

This wheeled mobile machine can neatly screen e.g. compost, soil, sand, slag, gravel, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.
| Model | Trommeldiameter | Trommel length | Capacity | motor power(KW) | Weight | Dimensions |
| MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
| MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
| MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
| The trommel screen is a heavy-duty, mobile drum screen machine built for small to medium-sized topsoil and compost operations.
» Horizontal drum delivers consistent output.
» Material rides on screening surface for extremely effective separation. |
| | |
