Large Capacity Circular Rotary Type Sieve for Ore Screening in Energy Mining Industry
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Sinolion |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
| Packaging Details: | This mobile trommer screen will be processed to be rustproof and moisture proof before delivery.<br>20GP container or 40GP container<br>Equipment is packed with plastic wrap or steel case, depends on machine weight.<br>Motor is packed with steel case or wo |
| Supply Ability: | 100 Set/Sets per Month mobile trommel screening plant |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Mexico, Colombia, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Gearbox, Motor | Condition: | New |
| Type: | Circular | Application: | Ore, Sawdust,compost,topsoil Cattle And Sheep Dung |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model, As Per Different Model |
| Weight: | 3500 KG | Warranty: | 1 Year |
| Product Name: | Mobile Trommel Screen | Feature: | Simple Operation |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | MOQ: | 1Set |
| Installation: | Supply Manual To Guide User | Feeding Size: | Less Than 300mm |
| Discharge Size: | Less Than 6mm Or As Request | Port: | Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( As Client Request) |
Product Description

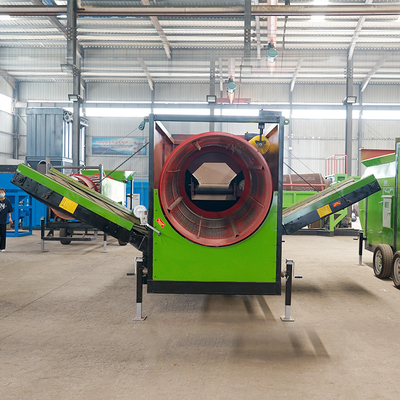

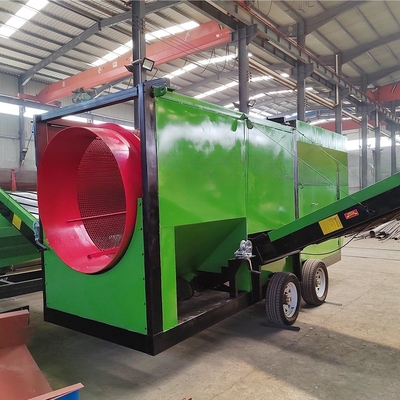

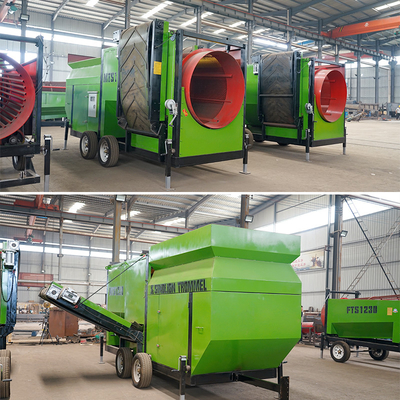

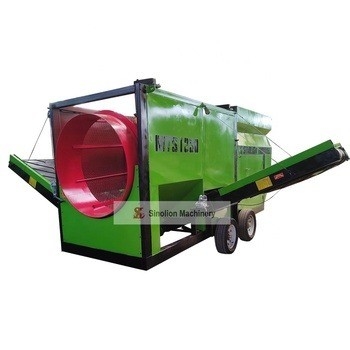

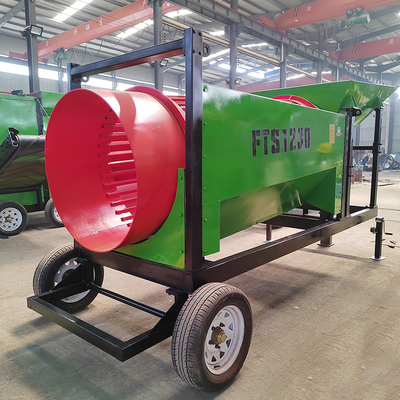

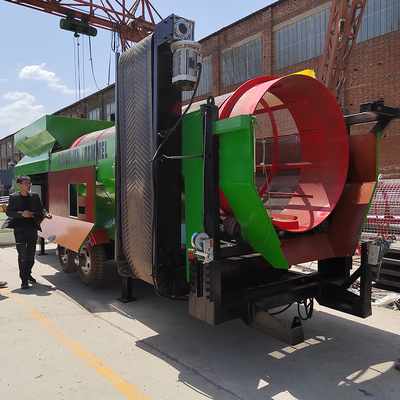

Large Capacity Circular Rotary Type Sieve Screening Surface Soil And Compost Supplier Mobile Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Structure and Principle：
The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
