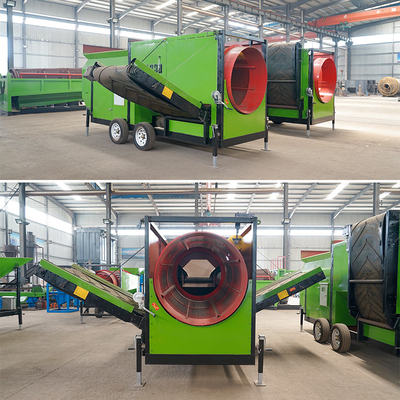

Highly Customized 2000 KG Wheeled Mobile Trommel Screen for Compost and Slag Screening
Product Details:
| Place of Origin: | China |
| Brand Name: | sionlion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Factory, Farms, Home Use, Energy & Mining | Showroom Location: | Canada, United States, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Condition: | New |
| Type: | Mobile Trommel Screen | Voltage: | 110v-440v |
| Dimension(L*W*H): | Customized | Weight: | 2000 KG |
| Warranty: | 1 Year | Product Name: | Mobile Trommel Screen |
| Application: | Mining Separation | After-sales Service Provided: | Video Technical Support |
| Color: | Customized Making | Raw Materials: | Molybdenum Ore |
| Quality: | High Reputation | Screen Size: | 3-10mm / Customized |
| Keywords: | Alluvial Gold Mining Machine | Usage: | Mining Separatoion |
| Main Products: | Mining Feeder | ||
Product Description
Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Structure and Principle

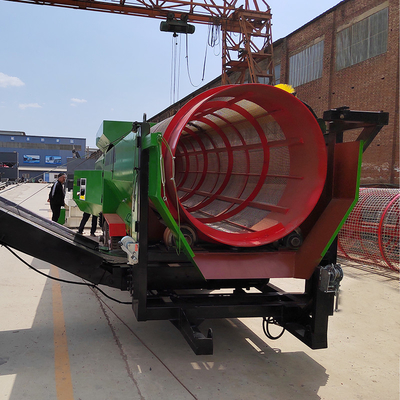

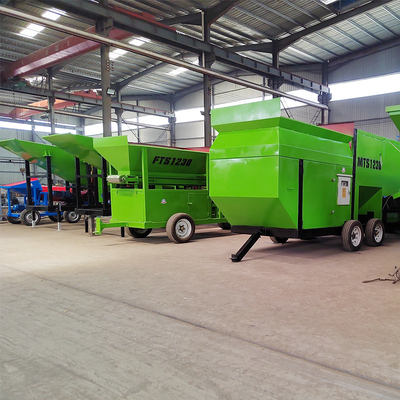

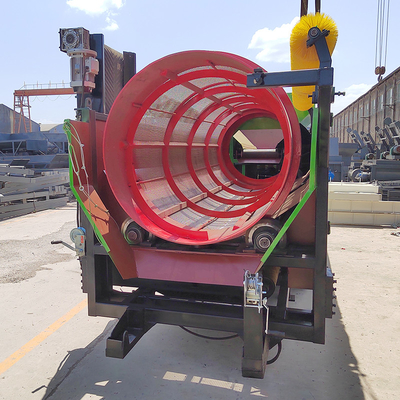

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommel diameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |

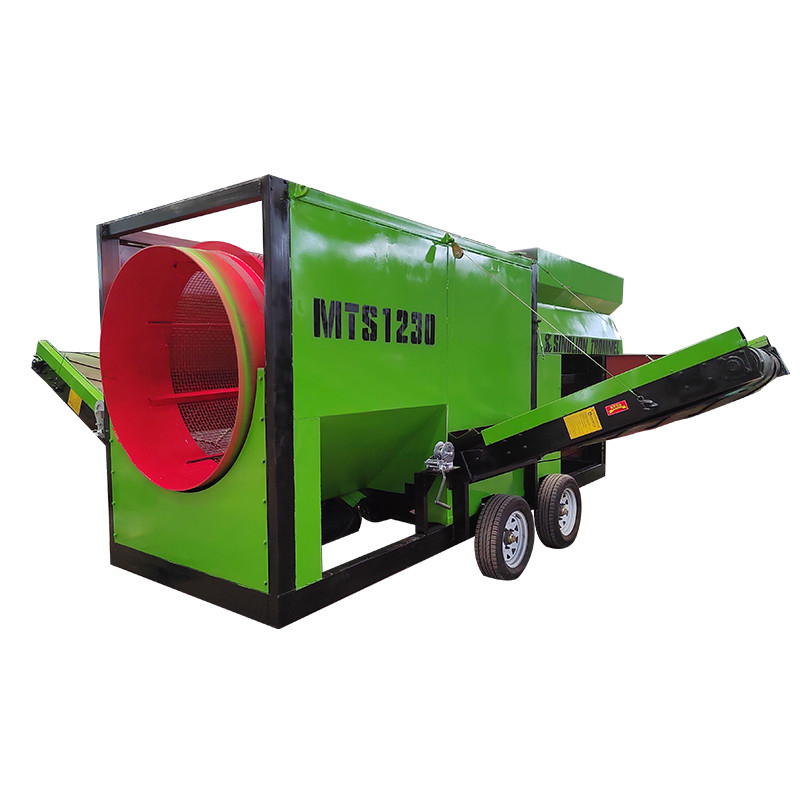

MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
