Gold Municipal Solid Waste Sorting Plant Industrial Trommel Screen for Waste Recycling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | SIONLION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Energy & Mining | Showroom Location: | United States |
|---|---|---|---|
| Condition: | New | Type: | Gravity Separator |
| Production Capacity: | 98% | Voltage: | 110V-380V |
| Dimension(L*W*H): | Customizable | Weight: | 6000 KG |
| Warranty: | 1 Year | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC, Other |
| Key Selling Points: | High Rigidity | Product Name: | Garbage Trommel Screen |
| Key Words: | MSW Sorting Line | Model: | GTS1015 GTS1020 GTS1560 GTS1890 GTS2080 GTS2011 |
| Power: | 3-30KW | Dimension: | Depends On Model |
| Installation: | Supply Manual To Guide User | Capacity: | 30-150 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm |
| Application: | Gold | ||
Product Description

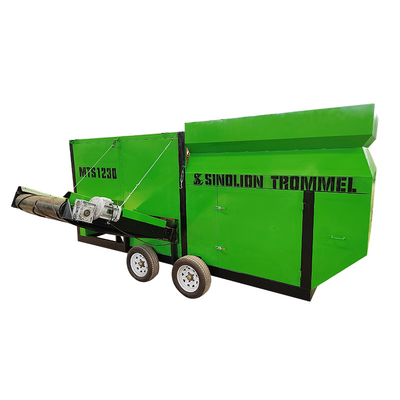

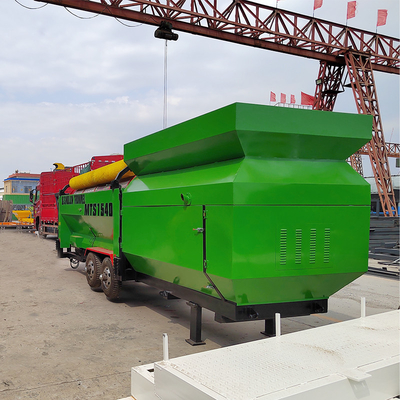

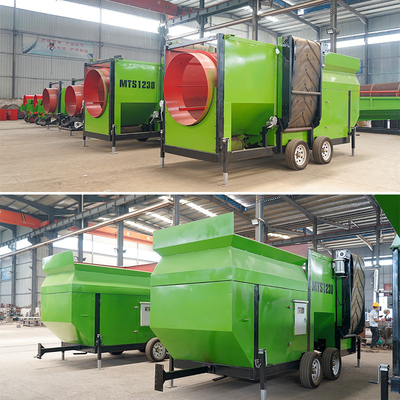

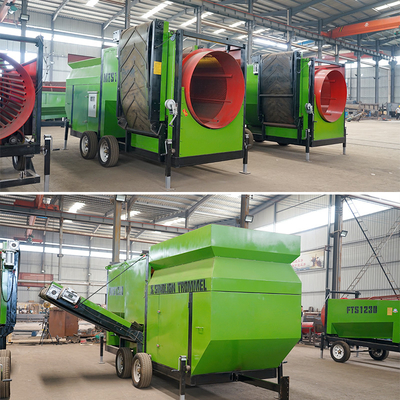

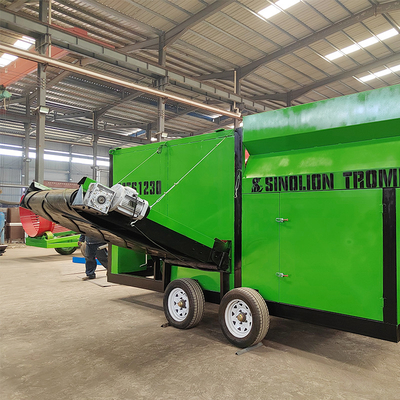

Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Structure and Principle

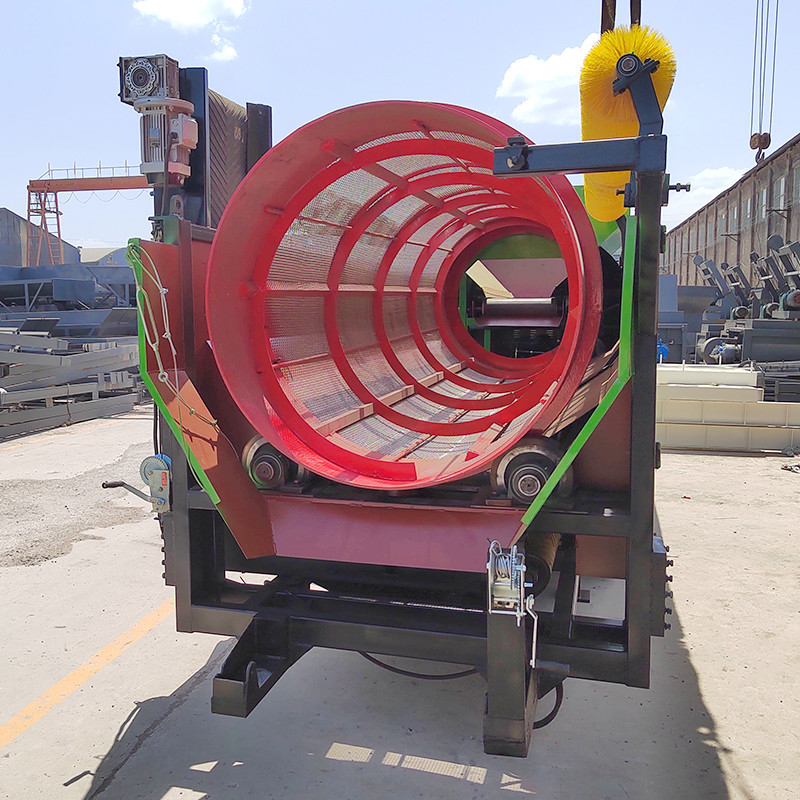

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
