Product Details:

Place of Origin: Henan, China
Brand Name: sionlion

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: $4,100.00/sets >=1 sets
Get Best Price Contact Now

Detail Information

Applicable Industries: Food & Beverage Factory, Farms, Home Use, Energy & Mining Showroom Location: Canada, United States, Australia
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Pump Condition: New
Type: Sprial Separator Voltage: 110v-440v
Dimension(L*W*H): Customized Weight: 2000 KG
Warranty: 1 Year Product Name: Mobile Trommel Screen
Application: Mining Separation After-sales Service Provided: Video Technical Support
Color: Customized Making Raw Materials: Molybdenum Ore
Quality: High Reputation Screen Size: 3-10mm / Customized
Keywords: Alluvial Gold Mining Machine Usage: Mining Separatoion
Main Products: Mining Feeder

Product Description

Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 0
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 1
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 2
Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen

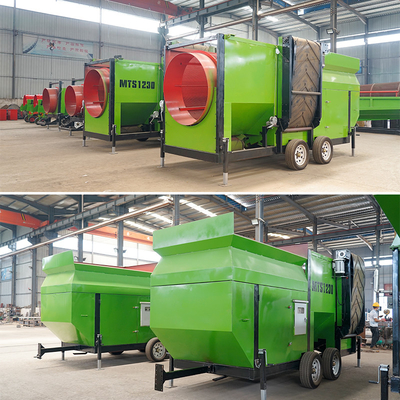

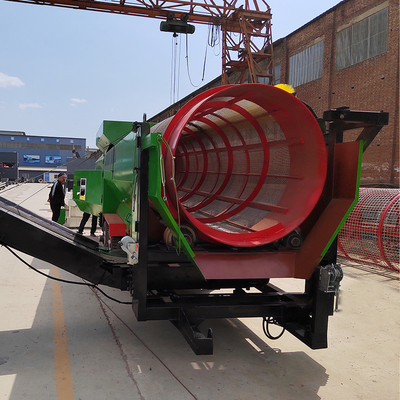

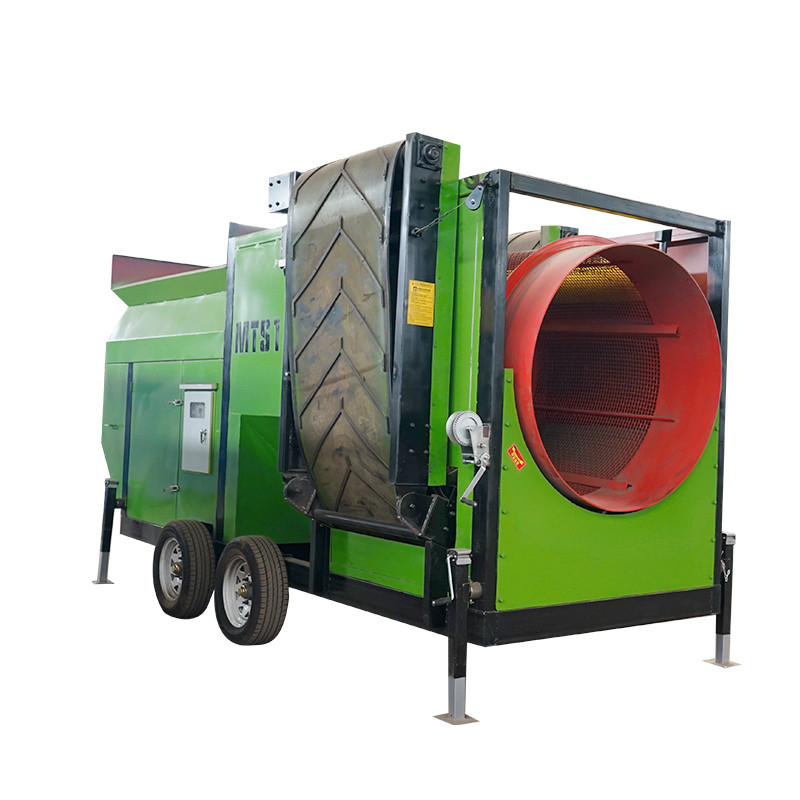

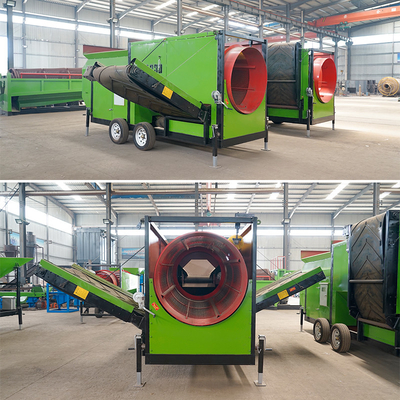

The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 3
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 4
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 5
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 6

Structure and Principle

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 7
Model
Trommeldiameter
(mm)
Trommel length
(mm)
Capacity
(m3/h)
motor power
(KW)
Weight
(Kg)
Dimensions
(L*W*H)
MTS0818
800
1800
≤15
2.4
650
3.15*1.1*1.65
MTS1022
1000
2200
≤30
8.2
2750
4.3*1.9*2.45
MTS1230
1200
3000
≤60
10.6
3210
5.4*2.1*2.7
MTS1550
1500
5000
≤90
20
7900
9.4*2.2*2.9
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 8
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 9
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 10
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 11
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 12
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 13
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 14
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 15
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 16
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 17
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 18
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 19
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 20
Mobile Rotary Gold Mining Sand Gravel Stone Drum Compost Mobile Trommel Screen for Prices 21
