Paper Wood Chips Plastic Compost and Soil Topsoil Mobile Trommel Screen Feeding Size Less than 300mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sionlion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |

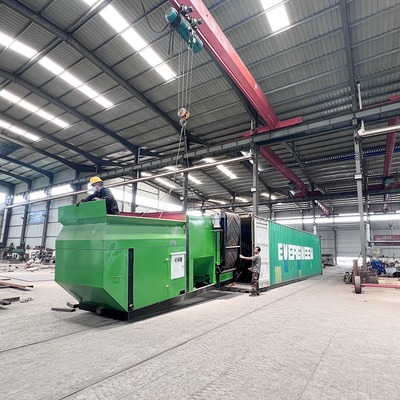

| Packaging Details: | All products will be processed to be rustproof and moisture proof before delivery. <br>20GP container or 40GP container <br>Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight. <br>Motor is packed |
| Supply Ability: | 40 Set/Sets per Month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Pump | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 110v -380v | Dimension(L*W*H): | 7000*2000*3000 Mm Or Customized |
| Weight: | 6000 KG | Warranty: | 1 Year |
| Product Name: | Mobile Trommel Screen | Keyword: | Mobile Trommel Screen Separator |
| Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel | Power: | 3-45KW |
| Dimension: | According To Capacity | Installation: | Supply Manual To Guide User |
| Capacity: | 50-500 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | As Request | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
| Port: | Qingdao, Dalian, Tianjin, Lianyungang, Dalian, Shanghai, Guangzhou( As Client Request) | ||
Product Description
Mobile Trommel Screen Waste Rotary Drum Screen For Sand Washing Wast Trommel Screen
The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.
Structure and Principle
The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.
Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power （KW） | Weight (Kg) | Dimensions (L*W*H) |
MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |

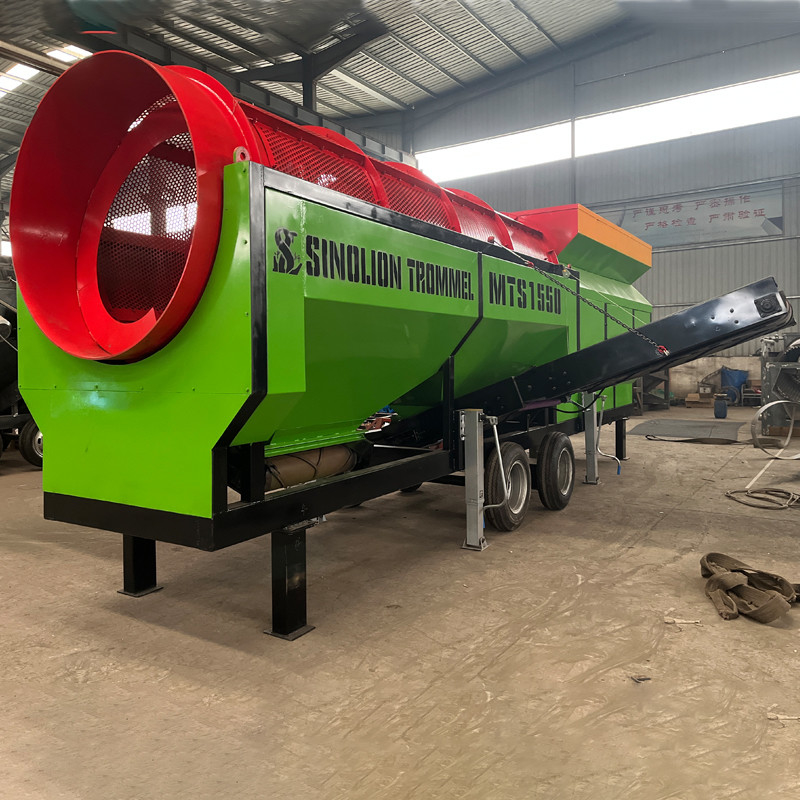

MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
