Green Small Mini Mobile Recovery Equipment Sand Mineral Drum Rotary Sand Trommel Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00/sets 1-1 sets |
|
Detail Information |
|||
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, United States, Italy, Mexico, UAE, Colombia, Australia, None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Condition: | New |
| Type: | Circular | Application: | Ore |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | 3.15*1.1*1.65m |
| Weight: | 520 KG | Warranty: | 1 Year |
| Keyword: | Mobile Sand Trommel Screen | Screen Material: | Sand,compost, Soil, Wood, Biomass, And Gravel Etc. |
| Dimension: | 3.15*1.1*1.65m | Installation: | Supply Manual To Guide User |
| Capacity: | ≤15m³/h | Feeding Size: | Less Than 300mm |
| Discharge Size: | 2mm-80mm | Color: | Green Or As Client Request |
| After-sales Service Provided: | Field Installation, Commissioning And Training | ||
Product Description

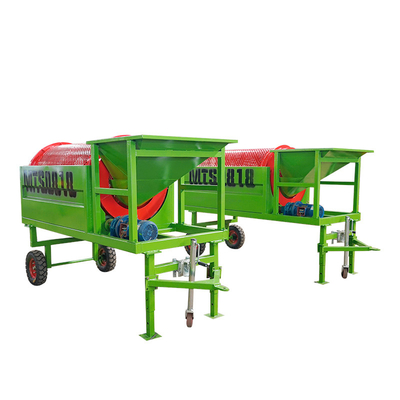

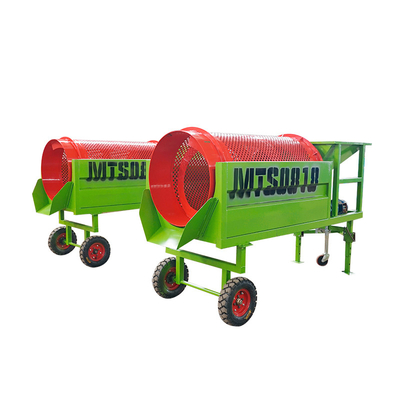

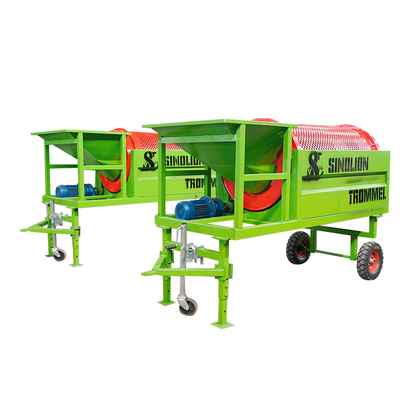

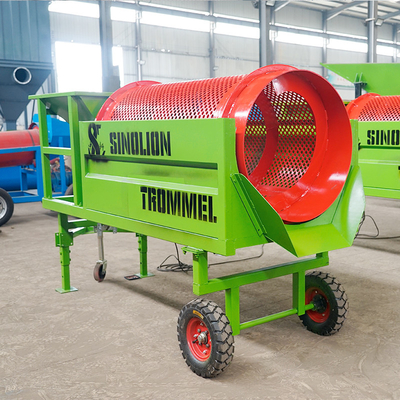

Small mini mobile recovery equipment sand mineral drum rotary sand trommel screen

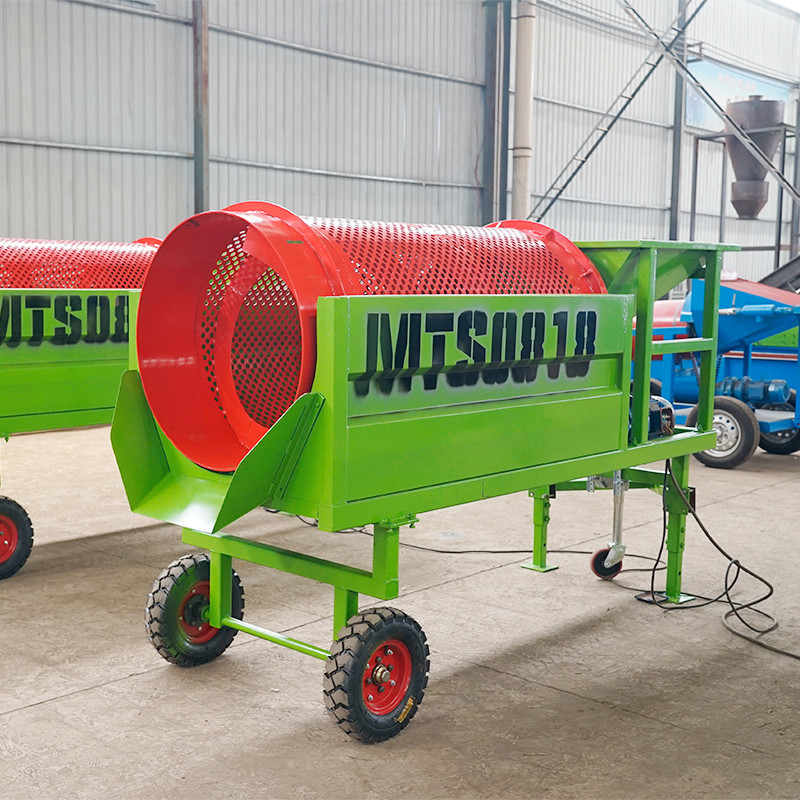

The MTS0818 compost roller trommel screen machine is one of the smallest trommel screens in our factory. It can also be used to screen compost, wood or cow, sheep manure, etc.
It including a 2.2kw electric type,screen area is 3m2,processing capacity is also 15m³/h per hour,product size is 3150*1100*1650mm.
The working principle of the trommel screen is that after the material enters the trommel screen from the feed hopper, under the action of power, the material enters the trommel screen and is screened into materials of specific particle size.The screened material can also be transported out by the side belt conveyor.
Small mobile sand trommel screen for sale has following features:
1. Mesh is not easy to block, automatic cleaning brush on the top of trommel screen to avoid the blockage.
2. Smooth operation, low noise.
3. High screening efficiency, large screening capacity.
4. Simple structure, easy maintenance.
5. Sieve drum can be closed, easy to close the dust collection.
6. Convenient maintenance, the upper hood is removable.
| Model | MTS0818 | ||
| Process material | compost, soil, top soil, wood or cow, sheep manure wood shipps, sawdust etc | ||
| Screen capacity | ≤15m³ | Total power | 2.2kw |
| Roller Diameter | 800mm | Drum length | 1800mm |
| Hopper Capacity | 0.4m³ | Weight | 520KG |
| | |
