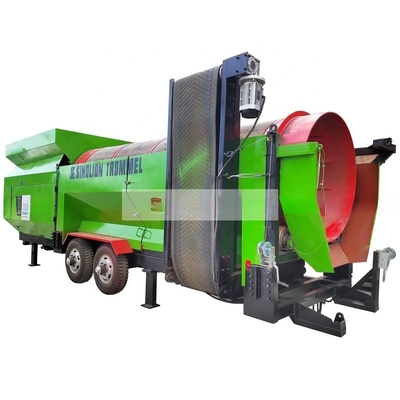

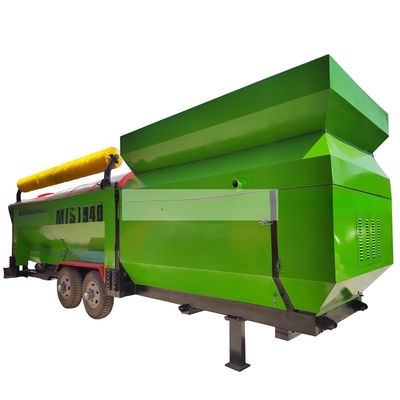

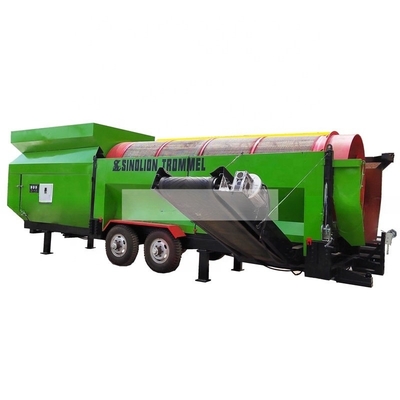

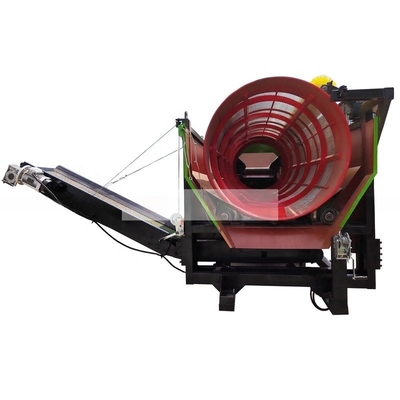

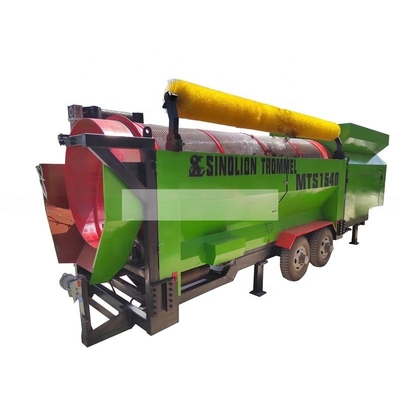

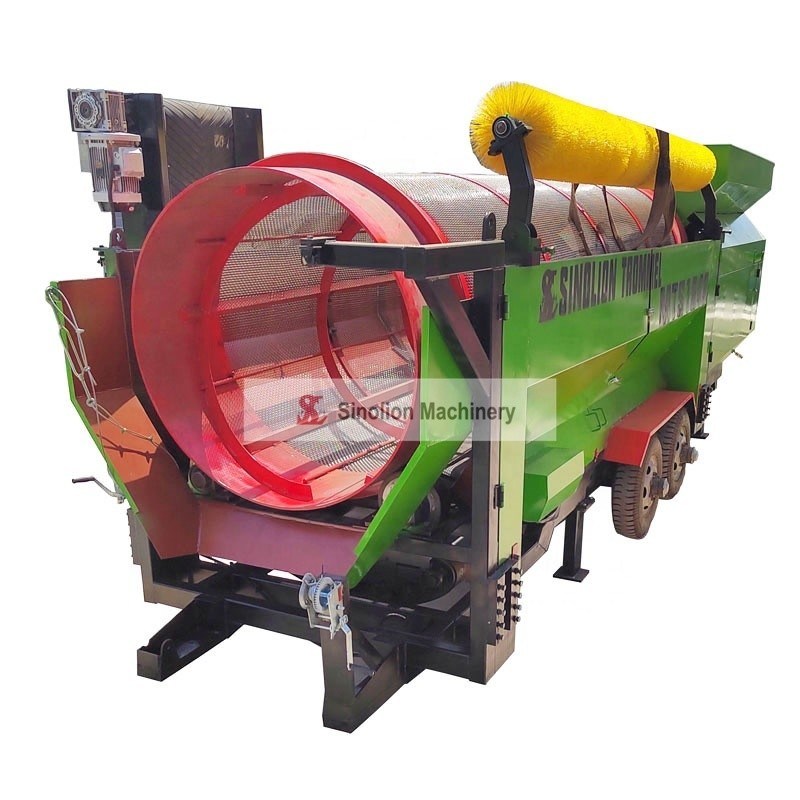

Mobile Soil Sand Trommel Screening Machine with Steel Plate Punch Hole Screen Material
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
| Packaging Details: | Standard export packing, Spare parts in wooden case, big machines loaded in container,<br>large machines use nude packing, cover with plastic cloth. We export through Qingdao<br>Port, also can be nominated by customer. We have superior cargo agent to arran |
| Supply Ability: | 40 Acre/Acres per Month |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Gear | Condition: | New |
| Type: | Circular | Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 220V | Weight: | 2200 KG |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Power: | 3-45kw | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500t/h |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Product Name: | Drum Screen For Wood And Firewood Sawdust Screening Plant For Sale |
| Port: | Qingdao,Shanghai,Tianjin | ||
Product Description
Mobile soil sand trommel screening machine topsoil trommel screen for sale
This mobile soil sand trommel screening machine is suitable for particle classification process in various industries. The barrel of the drum sieve is made of wire mesh or steel plate punched holes. The barrel can rotate around a horizontal axis or a slightly inclined axis. The drum is rotated by a motor through a chain, gear or friction device. This new type of drum sieve utilizes the angle to make the material pass through the sieve and move forward in the sieve barrel. The material is brought to a certain height in the cylinder and then falls, which is beneficial to improve the screening efficiency. Drum sieve can also effectively prevent clogging.
| Model | Trommeldiameter | Trommel length | Capacity | motor power (KW) | Weight | Dimensions |
| MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
| MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
| MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
Advantages
This mobile soil sand trommel screening machine can neatly screen e.g. soil, compost, sand, slag, gravel, wood chips, refuse, stones as well as mineral waste from 2 – 80 mm. The material is filled into the belt feeder, which can hold up to 5.5 m³. The material is then fed into the double tromel. It consists of a steel, robust inner cage and an outer cage that can be equipped with wire screens of various mesh sizes. What the inner cage does not retain is captured by the outer cage, the fine fraction is discharged via a conveyor belt. Once a mountain of work has been eliminated, the can be towed to the next location.
Question 1: Can you give me a solution and quotation?
Answer: Absolutely sure, we can provide accurate solution and quotation, please give us background information, including, raw material, the capacity, max. input size, the output size, the usage of final products, etc.
Question 2: Way of payment
Answer: Welcome clients place the order by alibaba online one-touch! Deya also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
Question 3: What’s the delivery time after I pay the deposit ?
Answer: Normal delivery time within 10 to 20 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
Question 4: How long of your machine quality guarantee terms?
Answer: Equipment from Zhengzhou Sinolion Machinery Co., Ltd. with 18 months warranty, can be extended to 24 months as request.
| | |
