YK Series Sand Gravel Screening Plant Vibrating Screen Separator for Rotary Aggregate
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $3,500.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | None |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Motor | Condition: | New |
| Type: | Circular | Application: | Ore, Stone, Sand, Glass, Mulch, Organics, Topsoil, Bark |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 1400 KG | Warranty: | 18 Month Excluding Spare Parts |
| Model: | YK Series | Installation: | Supply Manual To Guide User |
| Capacity: | 10-700 Tons Per Hour | Feeding Size: | Less Than 300mm |
| Discharge Size: | 4-80mm | Screen Deck Number: | 1-5 Layers |
| Product Name: | Rotary Sand Gravel Screening Plant | Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) |
Product Description

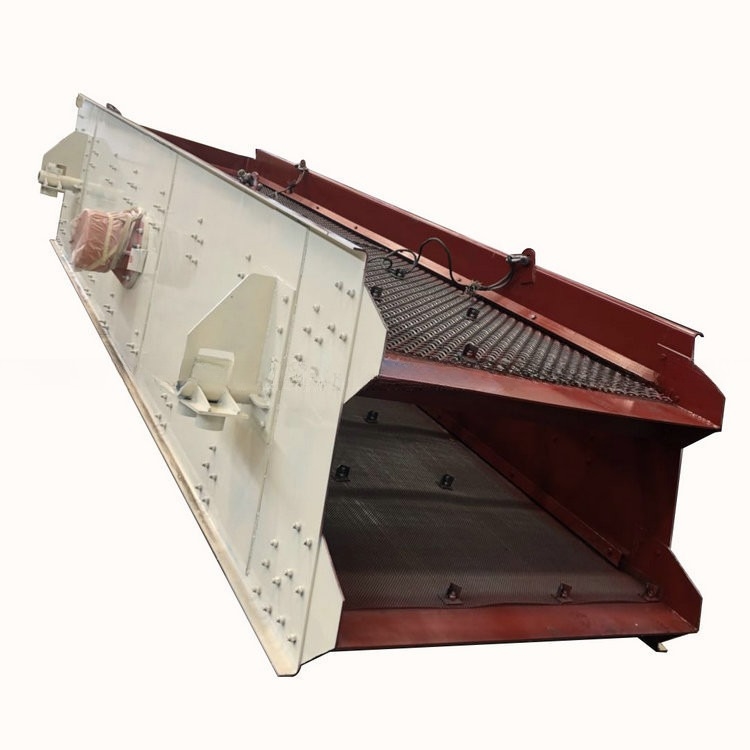

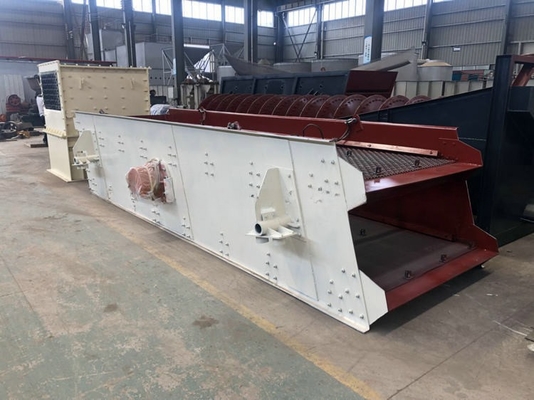

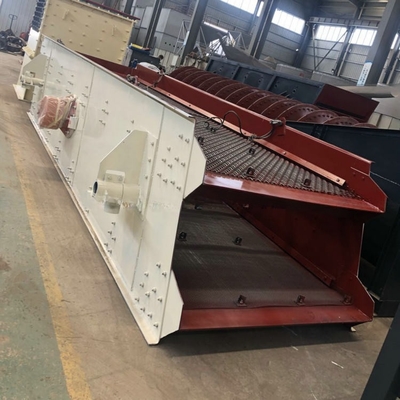

YK Series Circular Vibrating Screen is developed by adsorbing German technology and circular vibrating screen is suitable for screening different sizes of stones. It is widely used in mining, coal dressing, ore dressing, building material, electric power and chemical industries.
Rotary sand gravel screening plant specifications:
| Model | screen deck | installation slope(°) | screen size(mm) | feeding size(mm) | capacity (t/h) | motor power (kw) | weight (kg) |
| YK1230 | 1 | 15 | 4-50 | ≤300 | 10-75 | 5.5 | 1468 |
| 2YK1230 | 2 | 15 | 4-50 | ≤300 | 13-78 | 5.5 | 2253 |
| 3YK1230 | 2 | 15 | 4-50 | ≤300 | 15-80 | 7.5 | 2978 |
| 4YK1230 | 3 | 15 | 4-50 | ≤300 | 17-90 | 7.5 | 3982 |
| YK1235 | 1 | 15 | 4-50 | ≤300 | 20-150 | 5.5 | 1729 |
| 2YK1235 | 2 | 15 | 4-50 | ≤300 | 20-150 | 5.5 | 2474 |
| 3YK1235 | 2 | 15 | 4-50 | ≤300 | 22-150 | 7.5 | 3158 |
| 4YK1235 | 4 | 15 | 4-50 | ≤300 | 22-150 | 7.5 | 4160 |
| 2YK1545 | 2 | 20 | 5-50 | ≤300 | 22-150 | 11 | 5308 |
| 3YK1545 | 3 | 20 | 5-50 | ≤300 | 50-180 | 15 | 5915 |
| 4YK1545 | 4 | 20 | 5-50 | ≤300 | 50-180 | 15 | 7126 |
| 2YK1554 | 2 | 20 | 5-50 | ≤300 | 50-200 | 15 | 5284 |
| 3YK1554 | 3 | 20 | 5-50 | ≤300 | 56-200 | 15 | 6186 |
| 4YK1554 | 4 | 20 | 5-50 | ≤300 | 56-250 | 18.5 | 7284 |
| 2YK1854 | 2 | 20 | 5-80 | ≤300 | 56-300 | 18.5 | 5826 |
| 3YK1854 | 3 | 20 | 5-80 | ≤300 | 60-400 | 18.5 | 7368 |
| 4YK1854 | 4 | 20 | 5-80 | ≤300 | 80-400 | 22 | 8281 |
| 2YK1860 | 2 | 20 | 5-80 | ≤300 | 60-400 | 22 | 6195 |
| 3YK1860 | 3 | 20 | 5-80 | ≤300 | 80-400 | 22 | 7613 |
| 4YK1860 | 4 | 20 | 5-80 | ≤300 | 90-500 | 30 | 8650 |
| 2YK2160 | 2 | 20 | 5-80 | ≤300 | 100-720 | 22 | 6856 |
| 3YK2160 | 3 | 20 | 5-80 | ≤300 | 100-720 | 30 | 9112 |
| 4YK2160 | 4 | 20 | 5-80 | ≤300 | 100-720 | 30 | 10405 |
Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
