Steel Plate Material Drum Screen Filter for Compost Processing and Versatile Screening
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Mexico |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor | Condition: | New |
| Type: | Compost Trommel Screener | Application: | Topsoil, Compost, Solid, Municipal Soild Waste, Glass, Mulch, Organics, Bark, MSW, Municipal Solid Waste |
| Voltage: | 380V/415V/440V( As Client Request) | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 18 Month Excluding Spare Parts |
| Product Name: | High Quality Rotary Compost Sifter /drum Screen Filter For Compost | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Power: | 3-45KW | Dimension: | 5600x2015x2010mm |
| Installation: | Supply Manual To Guide User | Capacity: | 1-200 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description

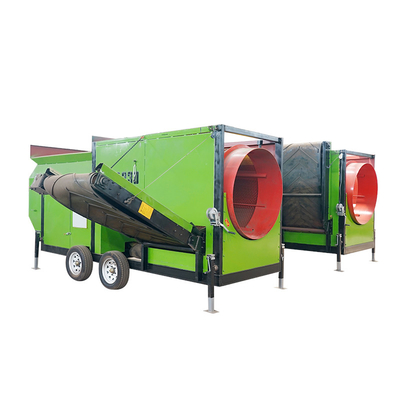

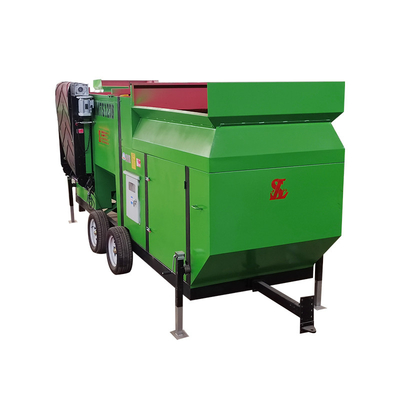

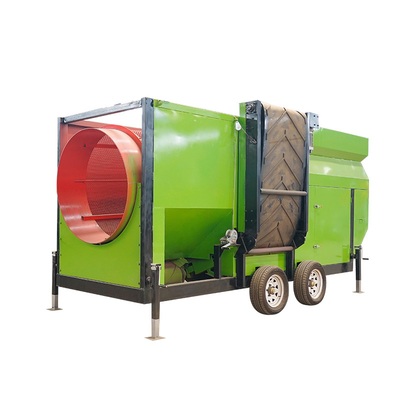

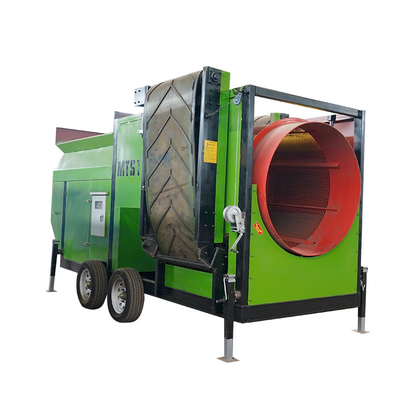

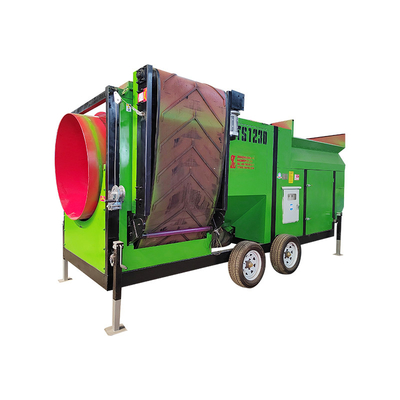

High quality rotary compost sifter /drum screen filter for compost
Shaftless trommel screen working principle:
Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.
Application:munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc
Technical parameter of shaftless trommel screen
| Model | Trommeldiameter (mm) | Trommel length (mm) | Capacity (m3/h) | motor power(KW) | Weight (Kg) | Dimensions (L*W*H) |
| MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |

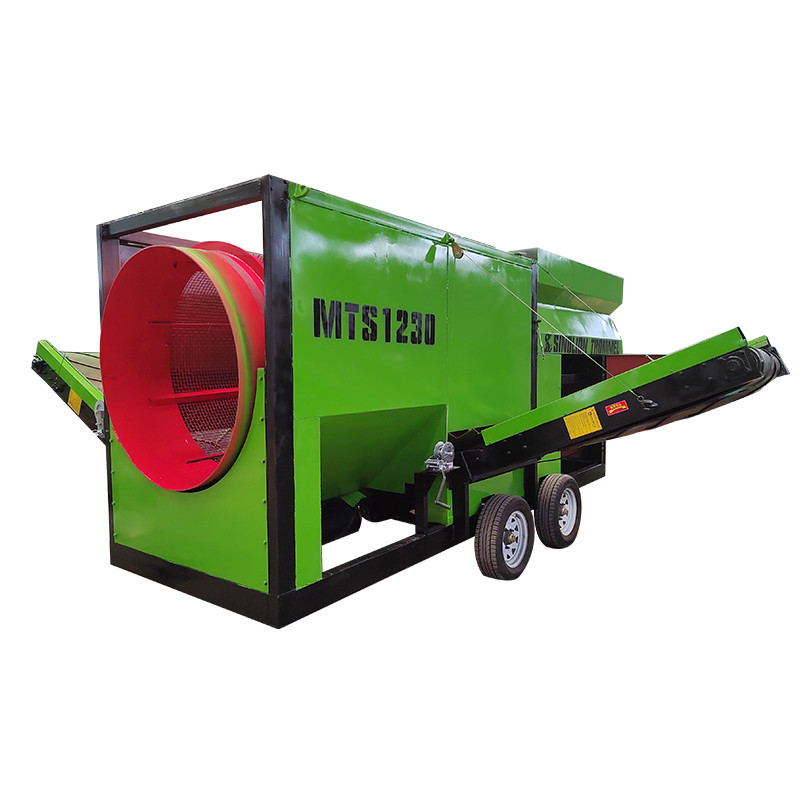

| MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
| MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
