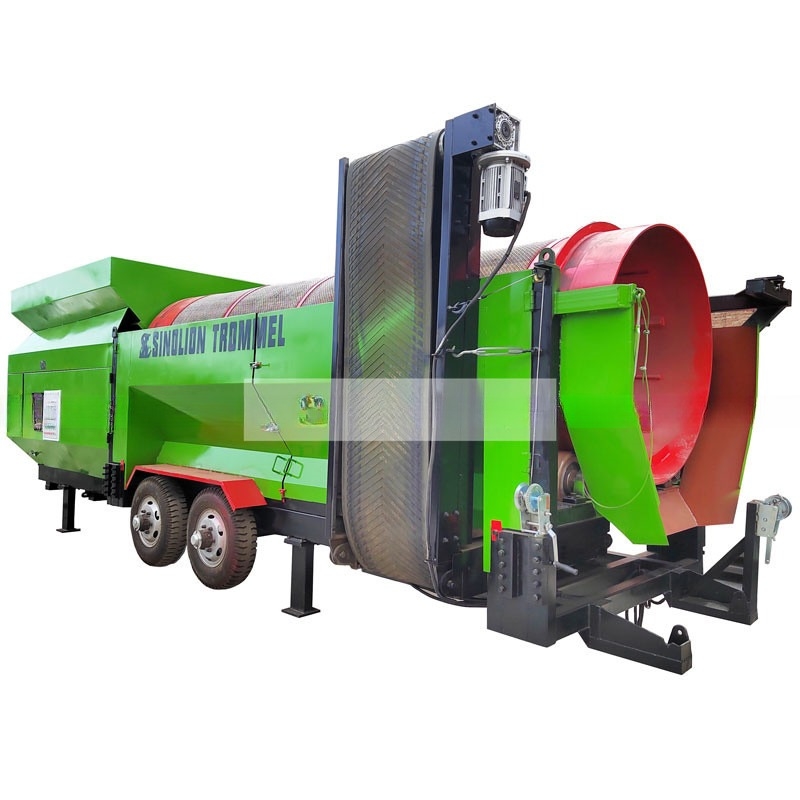

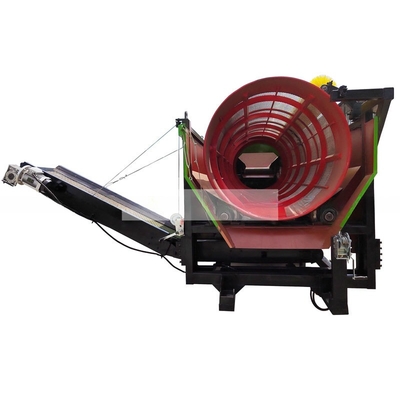

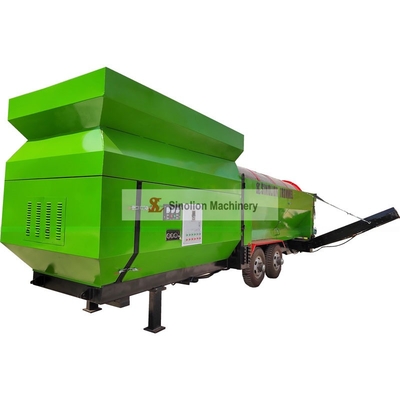

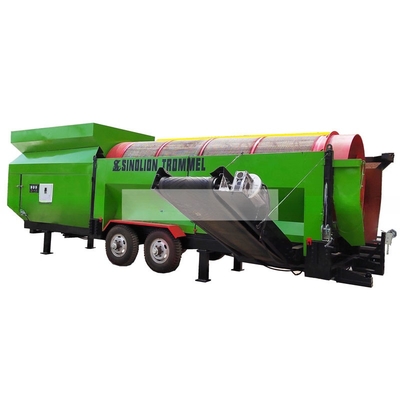

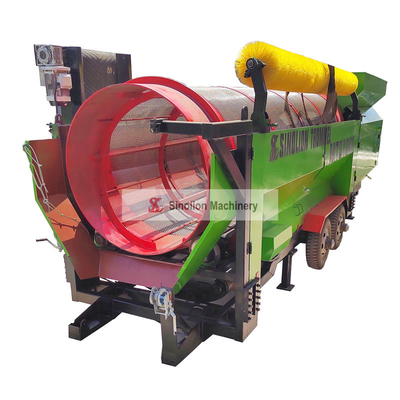

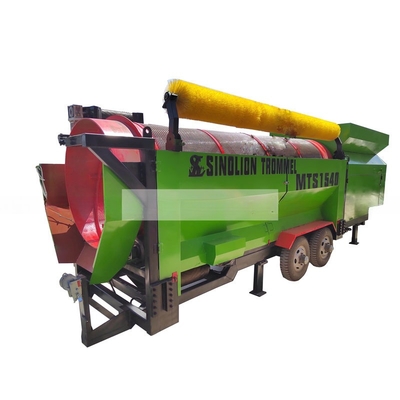

Stainless Steel Compost Sieve with Stacking Conveyor and Customizable Discharge Size
Product Details:
| Place of Origin: | China |
| Brand Name: | Sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $4,100.00 - $28,750.00/sets |
|
Detail Information |
|||
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops | Showroom Location: | Canada, United Kingdom, United States, Brazil, Mexico, Russia, Australia |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2023 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Bearing, Gearbox, Motor | Condition: | New |
| Type: | Other | Application: | Other, Glass, Mulch, Organics, Bark, MSW, Plaster Board |
| Voltage: | 380V/415V/440V | Dimension(L*W*H): | As Per Different Model |
| Weight: | 2200 KG | Warranty: | 1 Year |
| Product Name: | Diesel Generator Set Compost Drum Sieve Price With Stacking Conveyor | Screen Material: | Steel Bar, Steel Plate, Manganese Steel Wire Woven, Stainless Steel |
| Power: | 3-45KW | Dimension: | 5600x2015x2010mm |
| Installation: | Supply Manual To Guide User | Capacity: | 1-200 Tons Per Hour |
| Feeding Size: | Less Than 300mm | Discharge Size: | Less Than 6mm Or As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | ||
Product Description
DIY compost drum sieve with stacking conveyor,efficient reliable compost screener equipment
Screens compost, soil, peat and minerals for bagging and convenient distribution. Continuous feed hopper provides maximum compost flow-through efficiency. The compost screen is capable of handling up to 90 cubic yards per hour. Dividing towbar can be folded back against the screen for easy removal of overs.
Choose screen size of ¼ or ½ inch with other sizes available to suit your needs. Optional 2 x 2 inch inner protective screen & hydraulic jacks. Extra support heavy-duty steel bands ensure the handling of tough loads. Full-length brushes clean compost screen of debris as it rotates. A collector conveyor that runs the full length of the screen discharging past the end of the feeder hopper allows for easy removal of screened compost. Additional scraper prevents build up. An adjustable bar under the conveyor can be connected to a stacking conveyor allowing for 180º movement of the stacking conveyor.
Hydraulically driven by a 1.5 litre, 3 cylinder Caterpillar diesel motor, the compost screener operates with ease and efficiency. All compost screener machines come with 1 year warranty.
Compost trommel screens were designed for efficiency and ease of maintenance. The large feed hopper sits low to the ground, making it easy to feed material into the screening drum with a variety of loading equipment.
Removable side panels expose the full length of the drum screen, providing for easy maintenance and cleaning. Put the finished product where you need it – loading directly into a truck or stockpiling using the optional radial stacking conveyor on select models that swings a full 200 degrees.
Avoid jams with both the drum and feed conveyor being reversible.
With the ability to tension the screen around the drum, operators can add rigidity to the screens. This design allows the use of smaller gauge wire, ultimately increasing the open area of the screen to help improve productivity .
Compost trommel screens are designed to minimize setup time and be easy and convenient to service. With an extensive list of options these machines can be manufactured to fit your specific needs.
| Model | Trommeldiameter | Trommel length | Capacity | motor power(KW) | Weight | Dimensions |
| MTS0818 | 800 | 1800 | ≤15 | 2.4 | 650 | 3.15*1.1*1.65 |
| MTS1022 | 1000 | 2200 | ≤30 | 8.2 | 2750 | 4.3*1.9*2.45 |
| MTS1230 | 1200 | 3000 | ≤60 | 10.6 | 3210 | 5.4*2.1*2.7 |
| MTS1550 | 1500 | 5000 | ≤90 | 20 | 7900 | 9.4*2.2*2.9 |
| |
| |
| | |
