380v/415v/440v Voltage Rotary Drum Sand Sieving Machine for Mine Stone Screening
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | sinolion |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | $2,000.00/sets >=1 sets |
|
Detail Information |
|||
| Applicable Industries: | Energy & Mining | Showroom Location: | Canada, Turkey, United Kingdom, United States, Brazil, Mexico, Russia, Kenya, Sri Lanka, Nigeria |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Motor, Pump | Condition: | New |
| Type: | Circular | Application: | Ore, Coal, Coke, Mulch, Organics, Bark, MSW, Building Waste |
| Voltage: | 380v/415v/440v | Dimension(L*W*H): | Depends On Models |
| Weight: | 2000 KG | Warranty: | 1 Year |
| Power: | 3-45kw | Screen Material: | Steel Bar, Steel Plate Punch Hole, Steel Wire Woven, Stainless Steel |
| Installation: | Supply Manual To Guide User | Capacity: | 50-500t/h |
| Feeding Size: | Less Than 300mm | Discharge Size: | As Request |
| Color: | Yellow, White, Red, Blue, Gray( Or As Client Request) | Product Name: | Rotary Drum Sand Sieving Machine / Mine Stone Screening Machine |
| Keyword: | Mine Stone Screening Machine | ||
Product Description

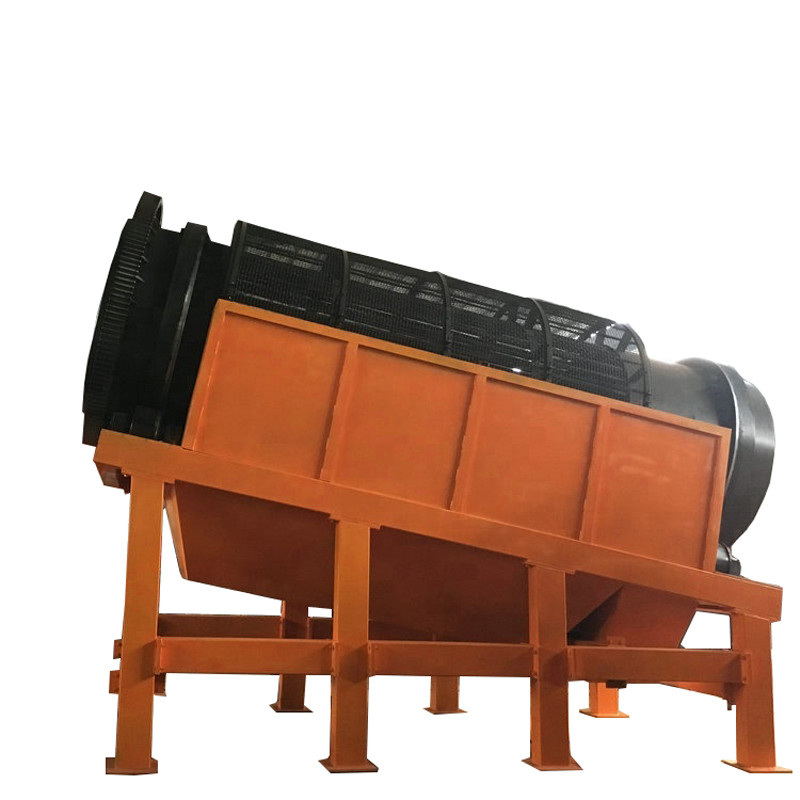

Rotary sand drum sieving price
Sand drum sieving machine is positioned at the beginning of the equipment line, replacing the need for multiple pieces of equipment. All our trommel screens are engineered with simple, energy efficient design that utilizes gravity and centrifugal force to reduce maintenance and separate different material sizes from the waste stream.
This rotary drum sand sieving provides a simple, efficient and economical solution to the screening of various raw materials, at the same time optimizing the follow-up process steps. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
Sinolion offers a wide range of sizes and capacities, custom built one at a time and tailored to the needs of individual customers. Built for heavy duty applications they're designed to provide years of trouble-free separation. Sinolion trommel Screens provide precise classification of a wide range of material, with multiple classifications available from one unit.
The sand separator machine is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining and other industries. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. It is suitable for screening materials of various properties, as well as moist and easy-clogging materials such as coal, coal gangue, coke raw lime, etc. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of users.
Characteristics of rotary drum sand sieving machine:
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light, and the mesh hole is not
easy to block.
2. The roller support adopts the integral through-shaft structure, which runs smoothly, does not vibrate, and has low noise.
3. The internal drum screen accessories adopt split design, the structure is simple, and the replacement and repair are quick and convenient.
4. The drum body adopts an effective full sealing structure, which does not dust or pollute.
5. Safe and reliable operation, adopting deceleration transmission, high transmission efficiency, low power distribution, low energy consumption and obvious energy saving effect.
6. Different screen materials can be used according to customer requirements, mesh size, high screening efficiency, long service life and low maintenance cost.
Technical parameters of sand drum sieve:
Model | Capacity (t/h) | Power (kw) | Diameter (mm) | Length (mm) | Discharge (mm) | Input (mm) | Dimension (mm) |
GTS1015 | 50 | 3 | 1000 | 1500 | 0-100 | ≤300 | 2600×1400×1700 |
GTS1020 | 100 | 4 | 1000 | 2000 | 0-100 | ≤300 | 3390×1400×2140 |
GTS1225 | 160 | 5.5 | 1200 | 2500 | 0-100 | ≤300 | 4146×1600×2680 |
GTS1530 | 250 | 7.5 | 1500 | 3000 | 0-100 | ≤300 | 4460×1900×2820 |
GTS1545 | 350 | 11 | 1500 | 4500 | 0-100 | ≤400 | 5960×1900×3080 |
GTS1848 | 450 | 15 | 1800 | 4800 | 0-100 | ≤400 | 6500×2350×4000 |
GTS2055 | 600 | 22 | 2000 | 5500 | 0-100 | ≤400 | 7500×2550×4800 |
GTS2265 | 800 | 30 | 2200 | 6500 | 0-100 | ≤400 | 8500×2750×5000 |
Main Features of sand trommel sieving machine:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Packaging | ||
Size | Depends on models | |
Weight | Depends on models | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
